Current Inventory of Used and Refurbished Chillers
Listings below arranged by "tons", with the available units at the top of the page.
Please scroll down to find your desired cooling capacity.
Listings below arranged by "tons", with the available units at the top of the page.
Please scroll down to find your desired cooling capacity.
5 ton | Drake 5 ton Air Cooled Chiller, 208/220V Single phase, Tankless Type, 0 Hours!
We have this perfect condition NEVER USED 5 ton Drake Air Cooled Process Chiller. It is older, proven and rock solid, R22 refrigerant, which is indeed still available for used and/or existing equipment. This chiller has NEVER been used and has 0 hours on it. It is 208/220 volt single phase power, and outdoor rated. We will run and test thoroughly in our shop prior to shipping. For someone who wants to save some money and is capable of using or repurposing their own water or glycol tank (or maybe to chill your existing central reservoir), and get a 1.5 or 2 hp centrifugal pump to mount adjacent to tank, this is a great find for you.
Model: PAC60
208/230 Single Phase power

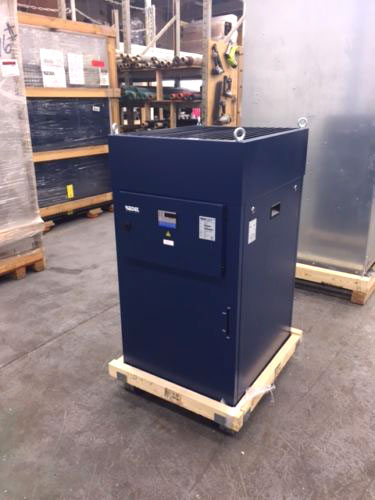

6 ton | 2015 Riedel 6 Ton Dual Circuit WATER COOLED Chiller, NEW, Never Used!
Arrived at KIG in November 2018. This never used dual-circuit 6 ton Riedel Chiller is WATER COOLED, not air cooled. Please let us know if you do not know the difference. A water cooled water chiller does not have fans, it uses a secondary water source (like a cooling tower) for the condenser cooling. This unit is 460 volt and originally designed to cool laser machines. It has 2 compressors, a primary tank and a secondary tank, and a primary pump and a smaller secondary pump. For a non laser application we will modify and disable the smaller pump and tank (we have done this often) and you will still get the full amount of 6 tons of cooling.
Model: PC160.01-NZW-DIS
Serial No. 7959920002
R407C Refrigerant
21.5 Kw net refrigeration capacity (about 6 tons)

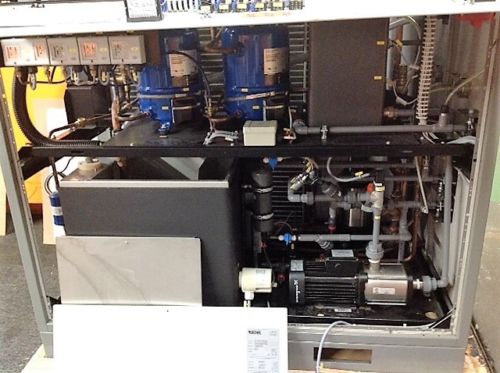

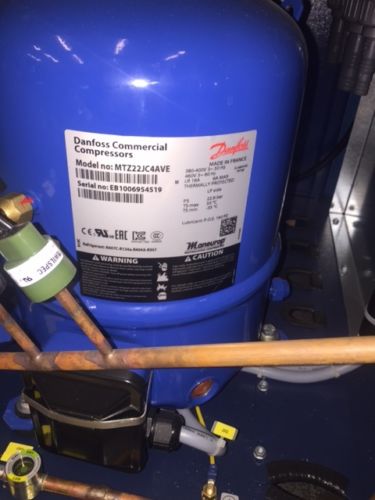

2 Compressors (Danfoss MTZ-36 Dual)
2 Pumps
Design Operating Temp: We typically configure these units to run and chill water/fluid in the 48°F to 85°F range. It is not a low temperature glycol chiller, but please let us know your application details. Chillers are all we do.
Primary insulated reservoir capacity: 140 liters
460 Volt 3 Phase Power
Weight: 350 kg

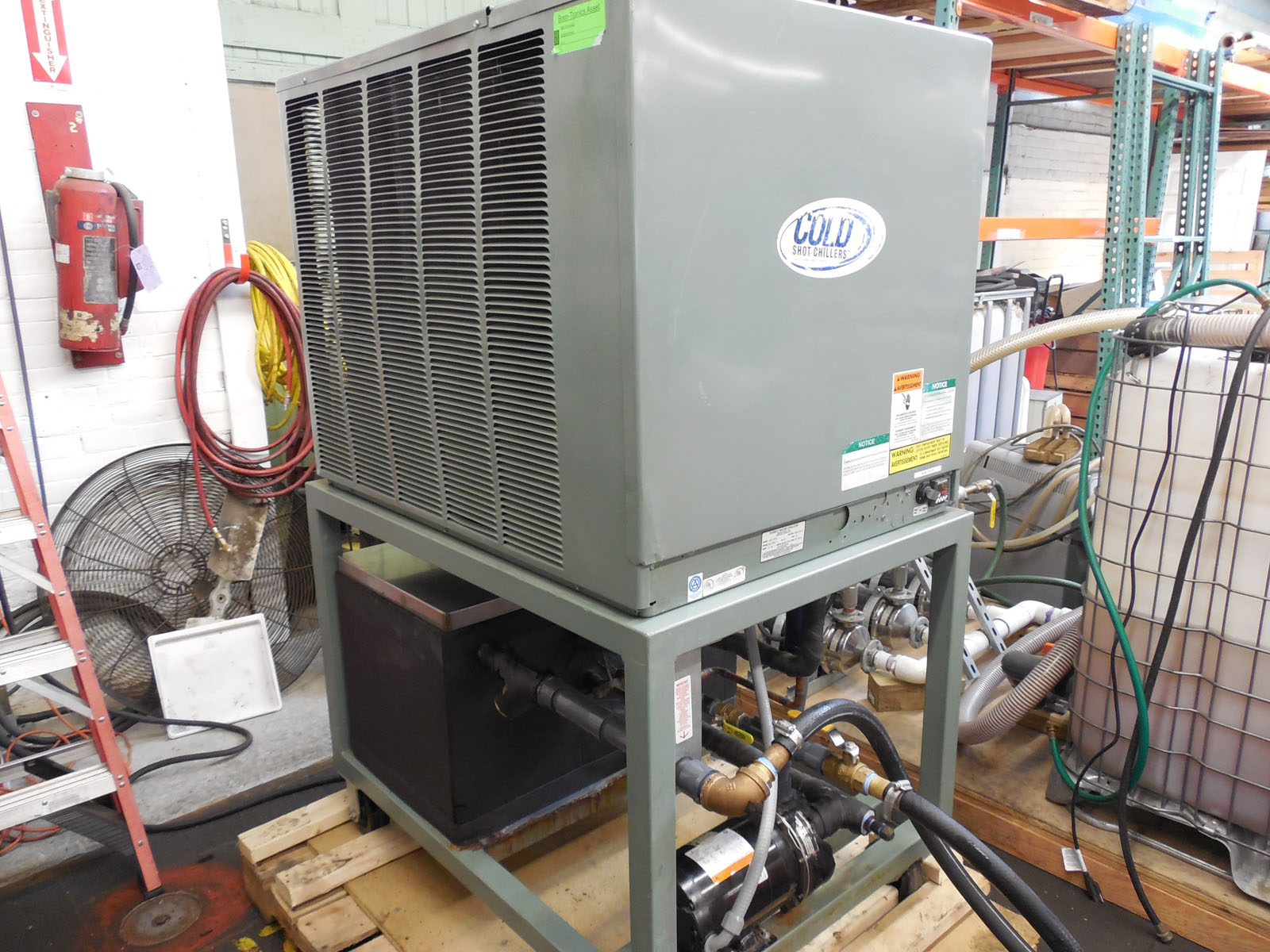

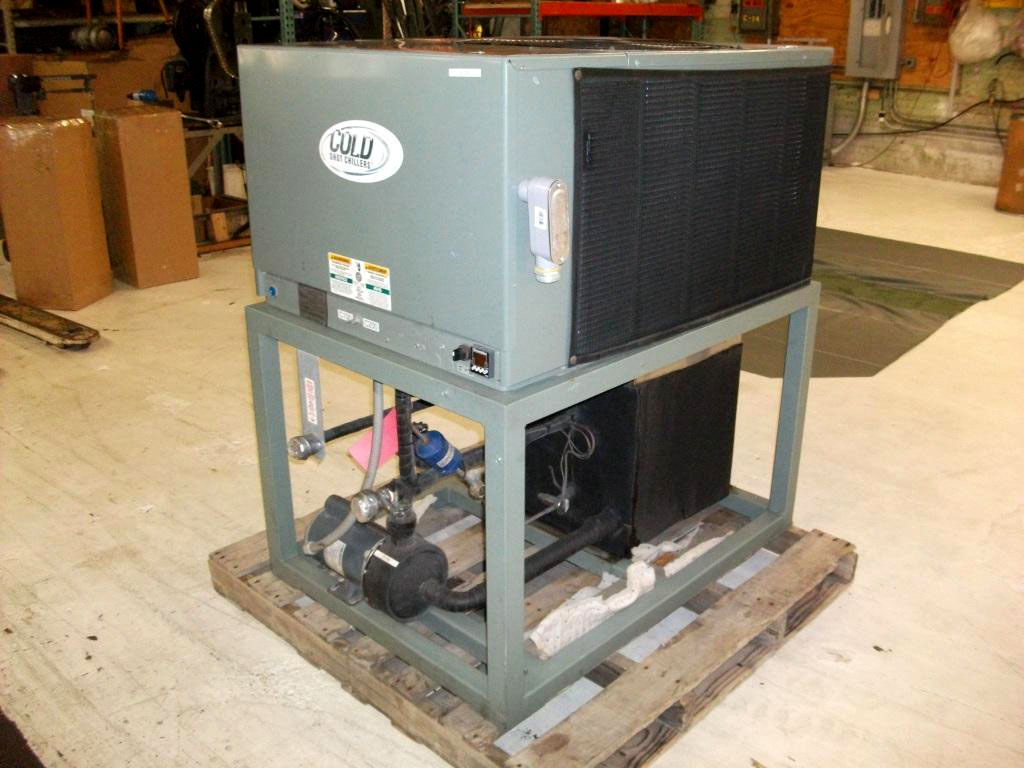

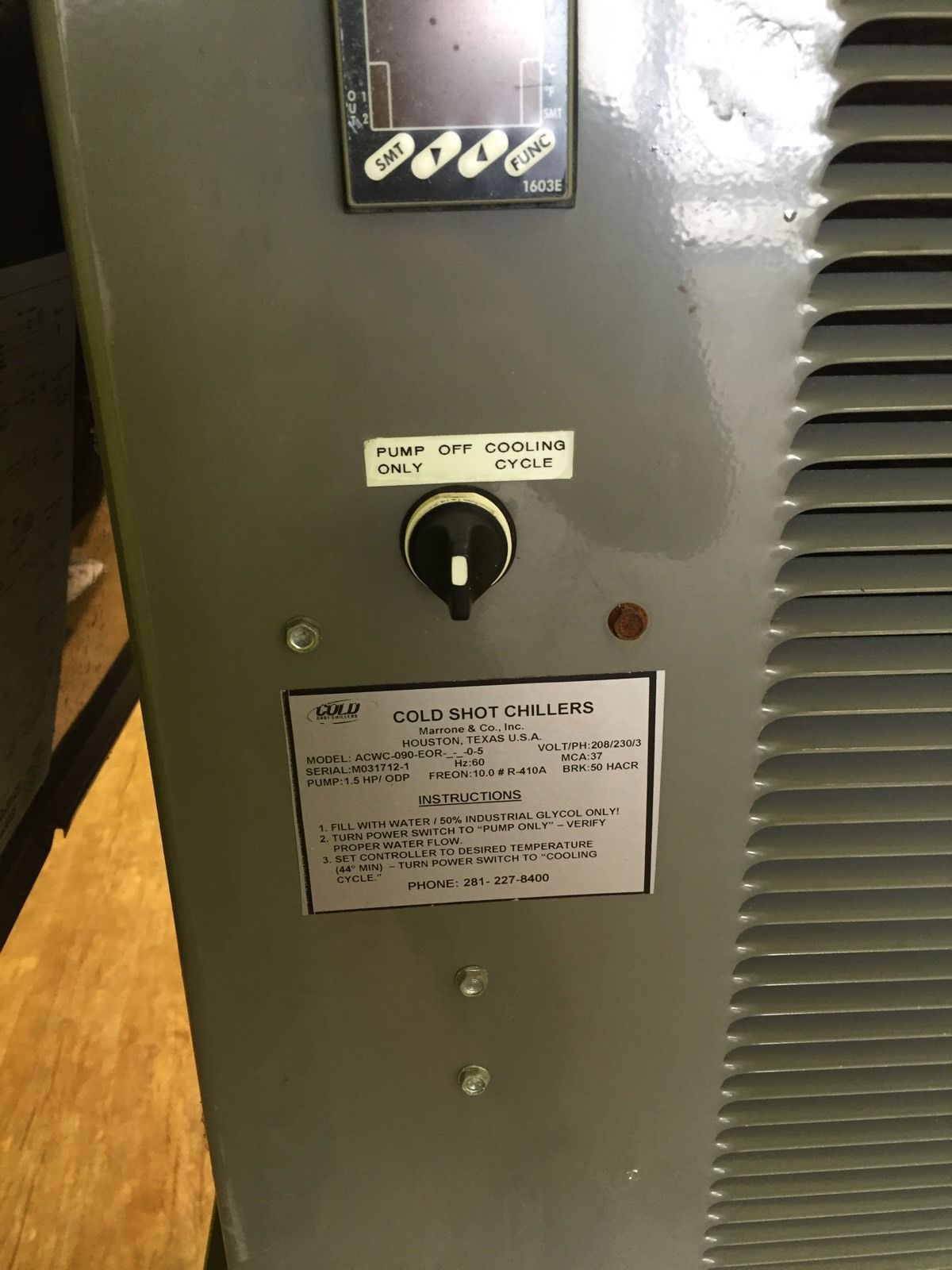

7.5 ton | 2011 Cold Shot / Zarsky 7.5 ton Air Cooled Glycol Chiller, 230V, Run, Tested & Guaranteed
Arrived December 2021 is this nice 2011 Cold Shot / Zarsky 7.5 ton Air Cooled Chiller. Unit has been run and tested and checked. It is 208/230 volt 3 phase power, has scroll compressor, R410a refrigerant, and standard 44°F setpoint. We can modify this unit for a 28°F brewery application for a fee. It is outdoor rated and has insulated tank and 2 hp pump. We have provided dozens of this exact workhorse chiller over the years.
Model: ACWC-090-EOR
Serial No. M042911-1
2 hp pump tefc
R410a refrigerant
208/230 volt, 3 phase power
MCA 37 amps; max breaker 50 amps
Outdoor rated
Vertical frame style
Standard temp fluid 44°F. 50% glycol suggested.
Will be run and tested at KIG prior to shipping.
10 ton | 2018 Thermal Care NQV Series 10 ton Chiller - 460 Volt
Arriving in January of 2022 is this nice 2018 Thermal Care NQV series 10 ton air cooled chiller. This unit features a variable speed drive 10 ton compressor and plc/touch screen controls. Chiller is a packaged with a 2 hp pump and 22 gallon reservoir and can chill glycol down to 20°F.
Model: NQVA10
Serial No. 27775 01 1801 (mfg date 2018)
460 volt 44.5 MCA / 37.2 FLA
10 hp variable speed compressor
2 hp process pump / 22 gallon insulated tank
1235 lbs ship weight
R410a refrigerant
Fluid temp range 20°F to 80°F
20 ton | 2012 Thermal Care 20 ton Air Cooled Chiller, 460V, Run, Tested & Guaranteed
*** UPDATE November 2020. One unit remaining, please check with us on lead time as we will be ordering and installing new condenser coil(s) as part of refurbishment.
Arrived to KIG in January 2020 is this pair of nice Thermal Care 20 ton Air Cooled Chillers. Units are 2012 and have dual compressors, hefty 5 hp process pump, insulated tank, and upgraded to the NQ series touch screen control. We will run and test each unit thoroughly before shipping. Will separate and sell each unit individually, upon request.
Model: NQA20
Serial Number: Unit A: 18651011212 / Unit B: 21551011408
460 volt, 3 phase power
58.6 MCA / 53.8 FLA
5 hp pump
R410A refrigerant
20°F to 80°F factory approved fluid temperature range
Dual scroll compressors

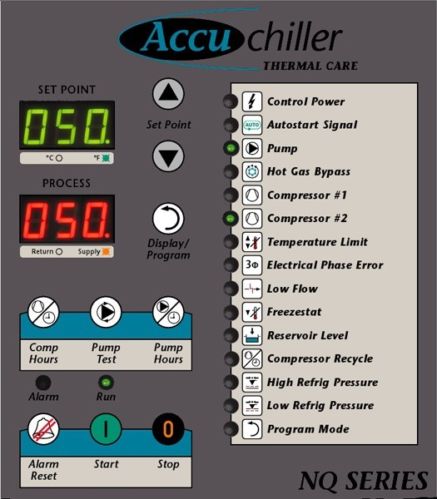

Upgraded touch screen NQ series controller

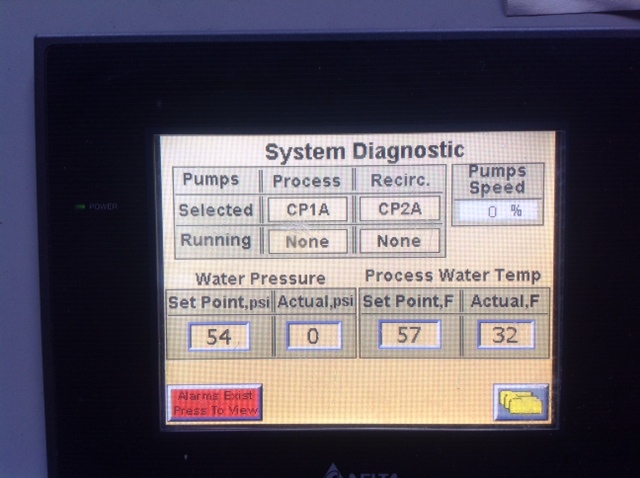

Touch Screen Pic 1
Touch Screen Pic 2
Touch Screen Pic 3
Touch Screen Pic 4
Tag (Unit A)
Tag (Unit B)

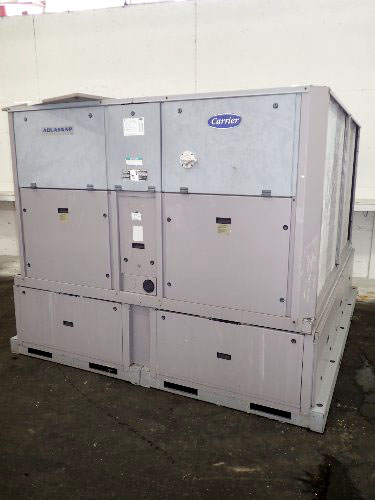

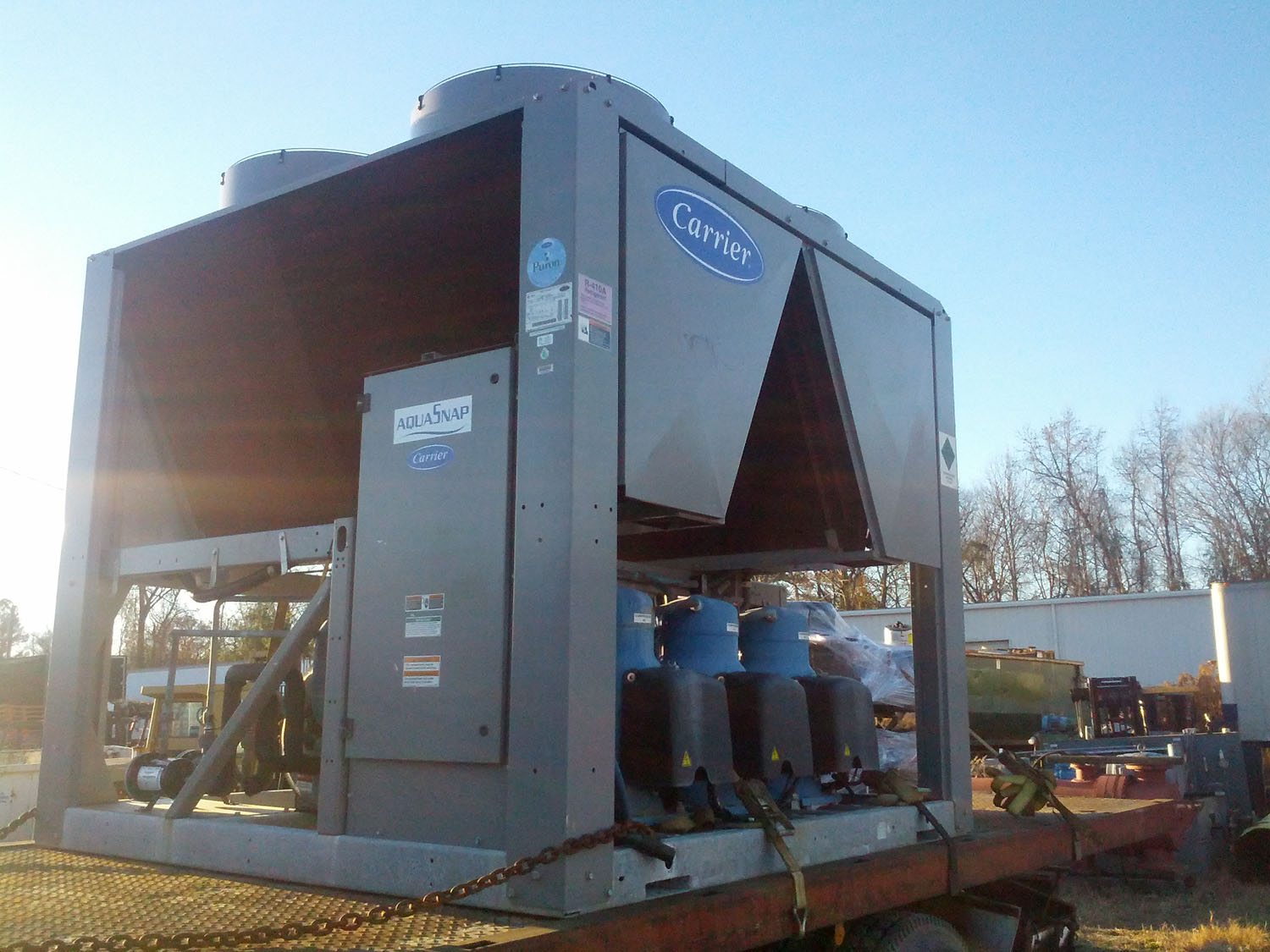

60 ton | 2016 Carrier Aquasnap 60 ton Chiller & 600 gallon S.S. Pump Tank System w/ 3 Pumps. 0 HOURS!
Just arrived to KIG's stock in March 2021 is this 2016 Carrier Aquasnap Air Cooled Chiller and 600 gallon Pump Tank System; both with ZERO hours, never used. Won't last!
Chiller:
Model: 30RAP0606DA06100
Serial No. 0516Q55720
Mfg date: 2016
Std. low ambient, outdoor rated, cooler heater, no disconnect.
Std. controls, std. packaging, 4 Scroll Compressors.
R410A refrigerant, 460 volt 3 phase power, MCA 126 amps, MOCP 150 amps.
0 hours, never used or connected to power.
Pump Tank System:
Temptek CPTS-600-SS-3P, 2016
600 gallon system
Stainless steel, insulated
5 hp chiller pump
5 hp process pump
5 hp back-up pump

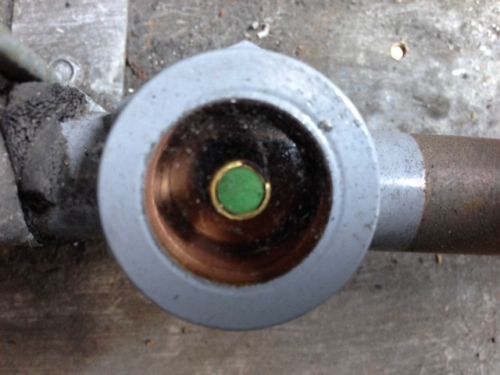

Site glass, valves, spare port(s)
Never used
Chiller alternate view
Pump Tank alternate view
Tag

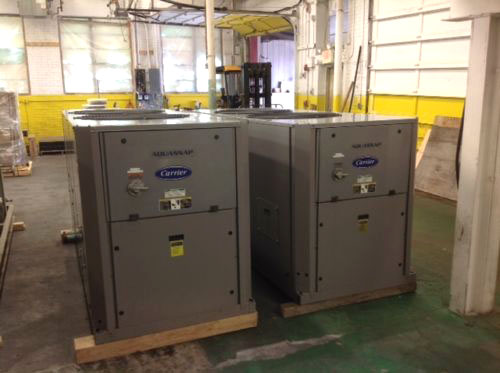

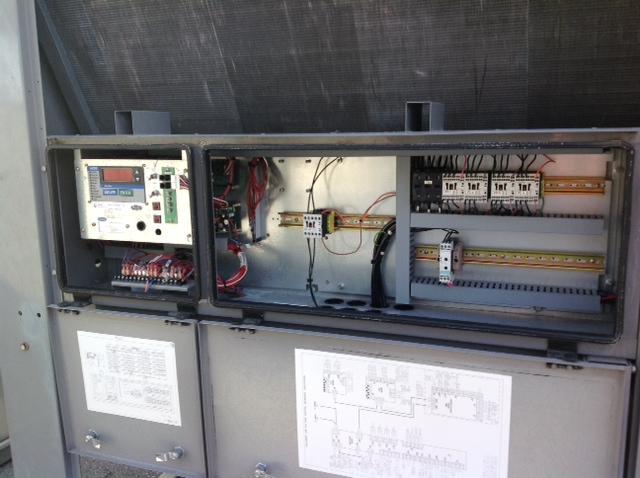

80 ton | 2019 Carrier Aquasnap 80 ton Air Cooled Chiller w/ DUAL 15hp vfd Pumps. 0 HOURS!
Available from KIG starting in October 2020 is this new condition, never used, pre-owned 2019 Carrier Aquasnap 80 ton air cooled chiller, LOADED with options. Won't Last, call NOW.
Model: 30RBF08065RLJV67
Serial No. 2619Q89583

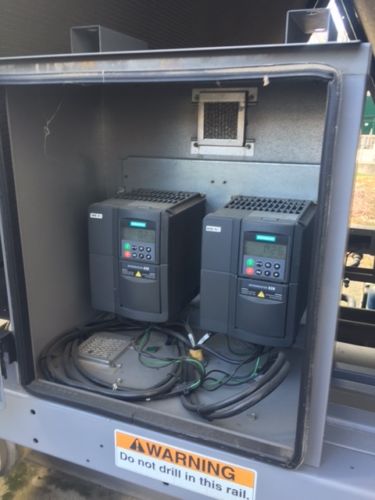

DUAL 15hp VFD Pumps
NEVER USED, 0 Hours!
460 volt 3 phase power, 178 amps, max fuse 200
R410a refrigerant, charged
Model Number Breakdown:
30rb - SERIES
F - design series
080 - 80 ton nominal size
6 - 460 volt 3 phase power

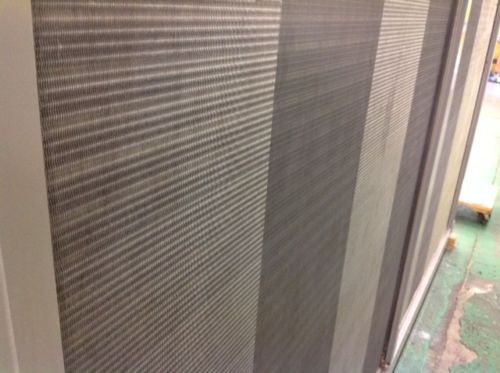

5 - e coat upgrade, microchannel (coated coils!)
R - DUAL 15 hp pumps WITH VFD!
L - integral cooler, cooler heater, MCHX
J - suction line insulation, suction service valves, high efficiency variable condenser fans
V - single point power connections, non fused disconnect
6 - Bacnet
7 - Coil Trim Panels, upper and lower grills
1/2 ton | 2016 Koolant Koolers Dimplex 0.5 ton - 1/2 ton Air Cooled Chiller 115V Tested
Arrived November 2018 was this 2016 Koolant Koolers pacakged 0.5 ton (half ton) Air Cooled Process Chiller. Ideal for lab or manufacturing, 115 volt single phase power. Has pump and tank. It is a standard temperature unit ideal for temps in the 50°F to 90°F range. Ran for a few weeks at local customer until their custom unit was built for them.
Model: JHI-500-M
Serial No. W079424-001
115 VOLT single phase power
Minimum circuit ampacity 18 amps
Max fuse 30 amps
1/2 hp compressor
1/3 hp positive displacement pump
Reservoir tank
R134a refrigerant
Fluid sepint range 50°F to 90°F
1/2 ton | 2014 Koolant Koolers 1/2 Ton Air Cooled Chiller * NEW Never Used * Made in USA
Arrived at KIG in March 2016 were three never used, never installed, 2014 Koolant Koolers / Dimplex Thermal 1/2 ton Air Cooled Chillers. (2 units were 115V, the other was 230V). The chillers were in their original crates. It is a robust, full-featured USA made indoor portable chiller with a pump and tank, and offered with money back guarantee. All units were run and tested completely at our 13,000 square foot facility prior to shipping.
Model: JHI-500-M
115V, single phase
5 gallon reservoir tank
1/2" fluid connectons
50°F to 95°F ambient
Fluid temperature: 50°F to 80°F
Amps: 17 amp draw / 20 amp breaker
21" x 22" x 28", 300 lbs
R134a refrigerant
Original "Data-Pak" Testing Results from Manufacturer (115V)
Original "Data-Pak" Testing Results from Manufacturer (230V)

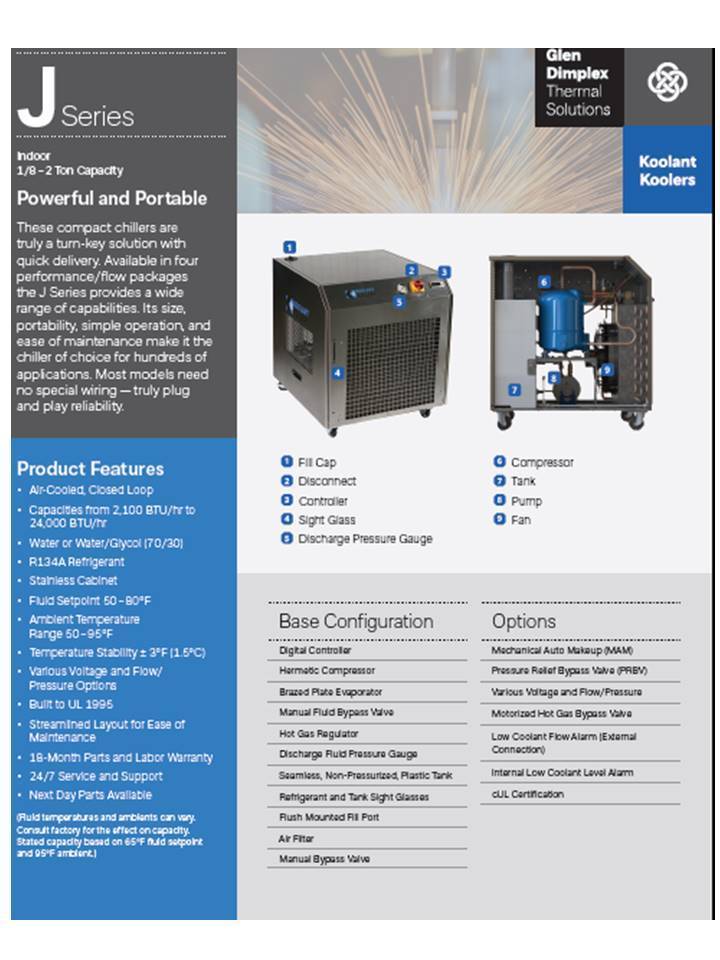

Technical Brochure

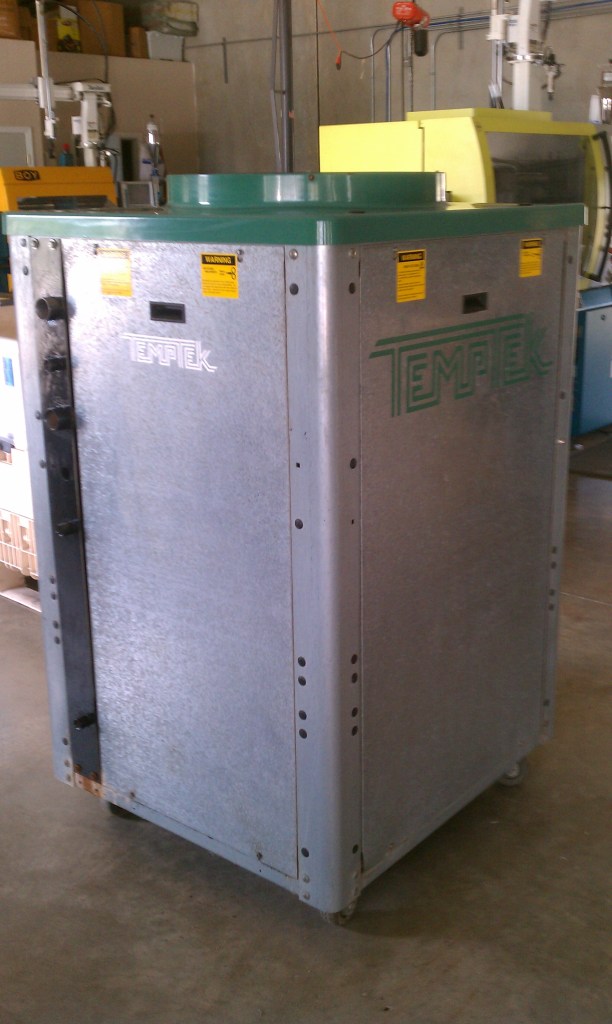

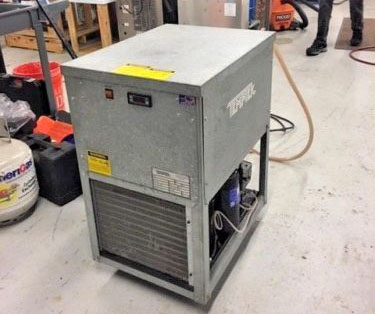

1/2 ton | 2005 Temptek Air Cooled Chiller
Model: CF-.5A, Serial: 94316
Date 08/31/2005, Voltage: 230/1/60
Full Load Amps: 7.6 Amps, Electric DWG#: CA-1258
Refrig. Type: R-22
1/2 ton | Turmoil Air Cooled Chiller Model OCN-50R 208/230V
Model: OCN-50R
Serial: 8323-01
208/230V / 60Hz / Phase 1
FLA 8.5
Min Cicruit Ampacity: 10
Video 1 of 2
Video 2 of 2
(Videos are of a chiller recently sold, same Model, different serial number.)
1 ton | Temptek / Advantage 1 ton Air Cooled Chiller Tested & Guaranteed 230V Single phase
This is a 1 ton Temptek/Advantage Air Cooled Chiller. We have refurbished, tested, and supplied dozens of this brand to various industries over the years. This unit is 208/230 volt SINGLE phase, has a reservoir tank, a 1/2 hp positive displacement pump. This is an R22 unit, but this is the only brand we deal with for "older" units as they are built like tanks and nearly identical to the current 2018 models. We run and test all units and provide a right of return. Temperature range on this unit is 48-70 as standard, but we can modify to run colder if needed. This is an indoor unit. Great condition for year, as shown by multiple photos with panels and/or tank lid off.
Temptek CF-1A 1 Ton Air Cooled Chiller
Serial Number 3-9-8980
208-230 volt single phase power - 15 amps
1/2 hp positive displacment process pump
reservoir tank
internal flow bypass

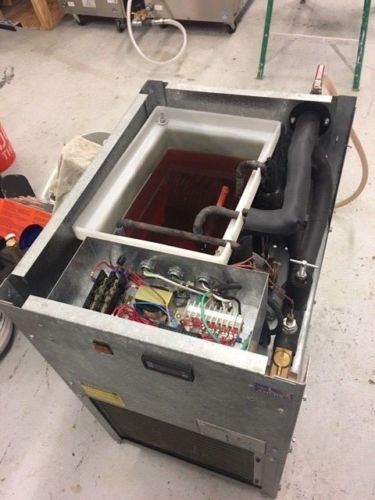

Top View Open
Side View Open

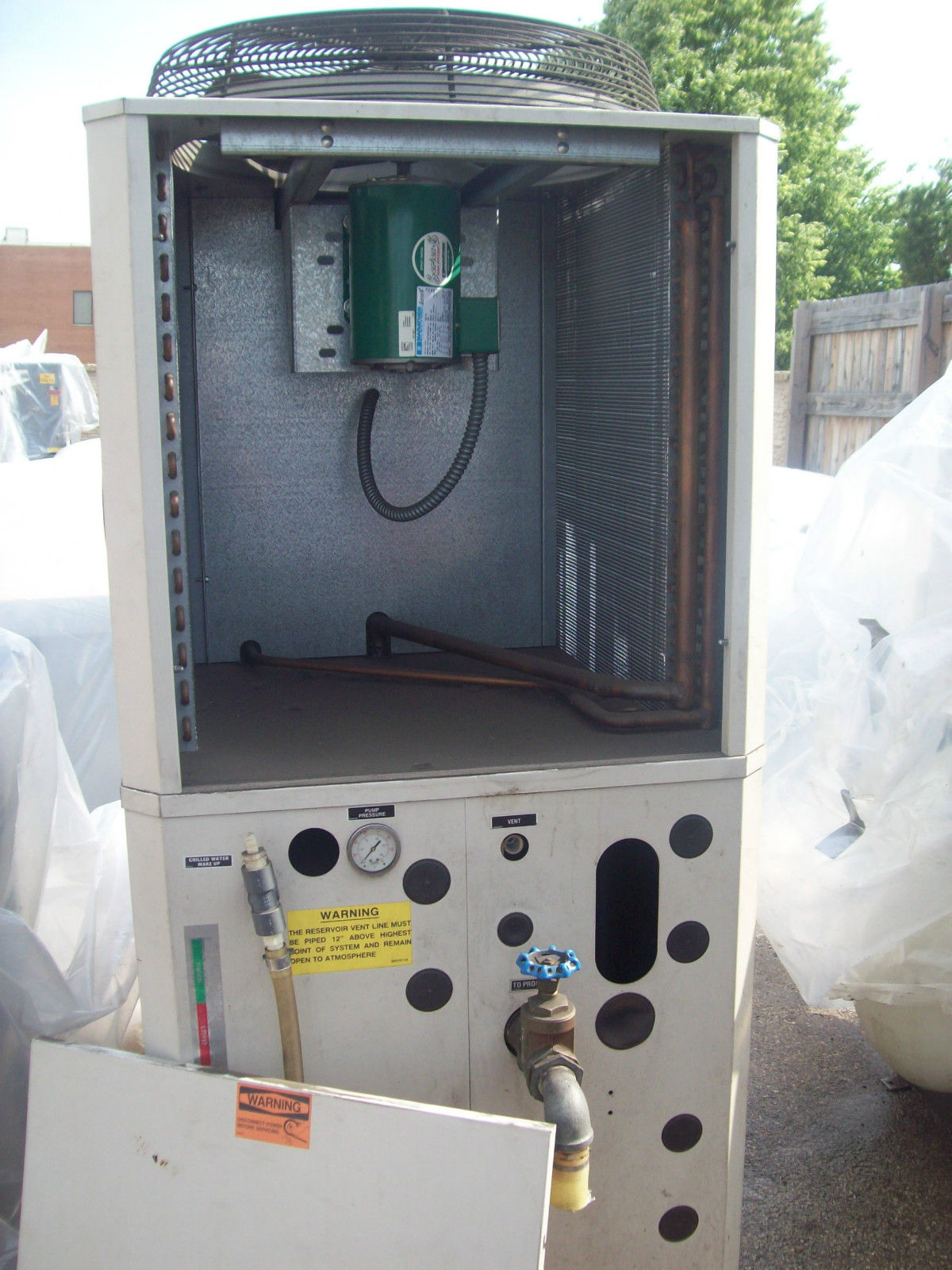

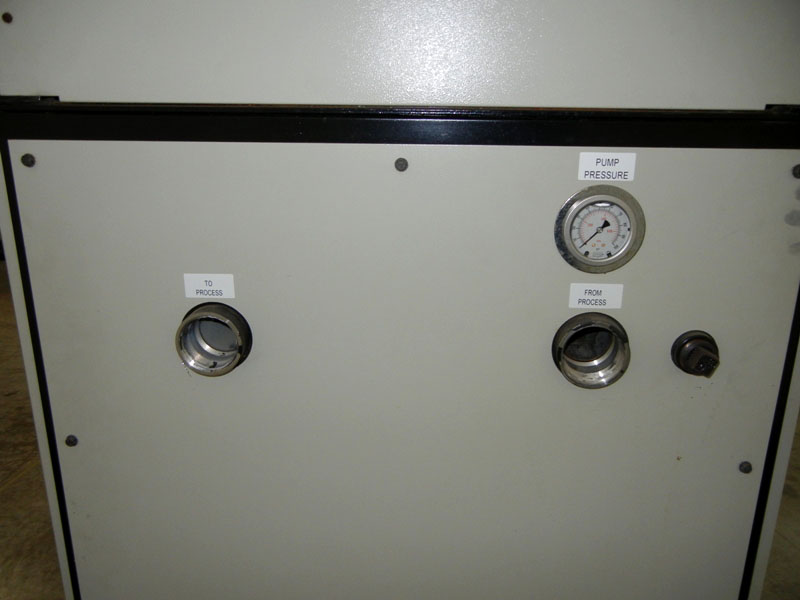

Rear View
Tag
1 ton | Temptek 1 ton hp GLYCOL Chiller for Brewery / Winery, 28F 208V 1P TESTED READY
Arrived at KIG in August 2017 was this nice 2005 Temptek Air Cooled Chiller. This 1.0 HP unit has a new pump seal installed by us (it was leaking just very slightly), an internal reservoir, a Watlow controller set up for -2°C / 28°F glycol temps, an internal bypass flow valve, and a new temp probe installed specifically for 28°F range operation. We have run the unit extensively. This is an indoor chiller, and can be used for higher temp manufacturing applications as well.
Some covers are off for photos.
Controller is set in centigrade temp units.
If running glycol / brewery temps (about 28°F and 40% glycol needed), unit will achieve about 6,000 to 7,000 btu/hr.
If running straight water and industrial temps (about 55°F), unit will achieve about 12,000 btu/hr.
Model: CF-1A
Serial No. 94192
Date of Manufacture: 8/10/2005
208/230 volt single phase
11.3 amps
Pump seal replaced
Run and tested
R22 refrigerant (ships with full charge)
1 ton | AEC Air Cooled Chiller 230 volt -- Working and Running See Videos!
Model: PCA-100
Serial: 98B0552
230 Volt / 60Hz / Phase 1
HP: 1 | Reservoir Tank : 6 Gallon | GPM: 2.4
Please see from our videos below the test we ran to ensure the chiller's functionality.
Current Model Operation and Installation Manual
Control Panel Open
Side Open
Side
Tag
1.5 ton | 2015 Koolant Koolers Dimplex 1.5 ton Air Cooled Chiller 460V Tested & Guaranteed
This is a 2015 Koolant Koolers Dimplex 1.5 ton Air Cooled Process Chiller. Ideal for lab or manufacturing or similar. 460 volt 3 phase power. Has 3/4 hp multi stage pump and tank. It is a standard temperature unit ideal for temps in the 50°F to 90°F range. Very Good Condition.
Model: JHI-1501-M
Serial No. W000057-001
460 volt 3 phase power
FLA: 10 amps
Max fuse: 20 amps
3/4 hp multi stage pump
1.5 ton | 1998 Advantage 1.5 ton hp GLYCOL Chiller Beer Wine, 28°F, 208V, 1P, REFURBISHED, TESTED
Arrived at KIG in April 2016 was this Nice Advantage Air Cooled Chiller. This 1.5 hp unit has a brand new stainless process pump installed by us, an internal reservoir, and a brazed/plate heat exchanger. Chiller was run and tested extensively, as well as added new insulation. It can be used with water for standard manufacturing (in which case we will limit controller setpoint to 45°F), or it can be used with a 30% glycol mix for a lower temperature application like a brewery - in which case we will set it up with a 20°F minimum setpoint. This is an indoor chiller, designed to be in an indoor warehouse/facility environment. It is designed for closed loop flow. Please see the videos posted of its sister unit recently shipped out.
Advantage 1.5 hp Air Cooled Chiller
Serial No. 35424
Pump and Tank
Adjustable internal bypass for flow
208 volt single phase
Side covers off for photos
Run and tested
Photos show no insulation on internal piping. Insulation will be installed on all internal piping
Note: If we set this up for 28°F brewery/winery application, please understand that the effective cooling it will supply is about 50% of nominal. So, this 1.5 hp (ton) x 12,000 BTU's = 18,000 btu's nominal, which is about how much cooling will be supplied if you run a general industrial application at about 55°F setpoint. For a brewery application running at 28°F fluid temp, this will supply about 9,000 BTU's of cooling. This de-rating holds true for all chillers, albeit at different percentages depending on technician's opinion, as well as compressor type and quality of insulation supplied in chiller.
Run-off videos of unit recently shipped: Video 1
Video 2
Video 3
Operators Manual
Electrical Schematic
Alternate View 1
Alternate View 2
Inside View 1
Inside View 2
1.5 ton | 2014 Koolant Koolers 1.5 Ton Air Cooled Chiller * NEW Never Used * Made in USA
Arrived at KIG in March 2016 was this never used, never installed, 2014 Koolant Koolers / Dimplex Thermal 1.5 ton Air Cooled Chiller. This unit is in original crate, and is a solid USA made indoor portable chiller with a pump and tank, and offered with money back guarantee. Unit was run and tested completely at our 13,000 square foot facility prior to shipping.
Model: JHI-1500-CE-M
Serial No. 40938
460 volt, 3 phase power
10 gallon reservoir
Indoor design with ambient range of 50°F to 95°F
26" x 31" x 36" tall, 500 lbs
Brazed plate heat exchanger
Fluid setpoint range 50°F to 80°F
R134a refrigerant
Pump at factory set to 4 GPM / 50 PSI
Original "Data-Pak" Testing Results from Manufacturer
Technical Brochure

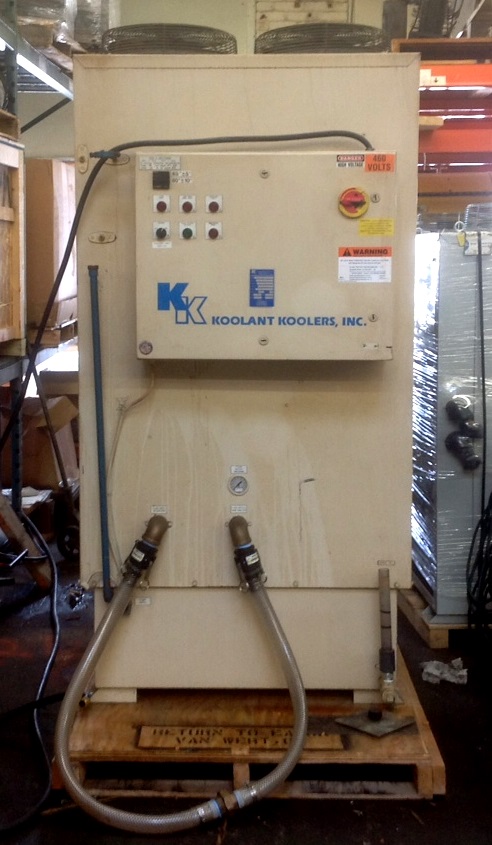

1.5 ton | Koolant Koolers 1.5 ton Air Cooled Chiller 460 Volt
Model: HAV 1500-P-SW-CL-AT
Serial: 26959
Compressor HP: 1.5
Pump HP: 1
460/60/3
Amps: 5.8
Unit was run and tested, and video provided, prior to shipping.

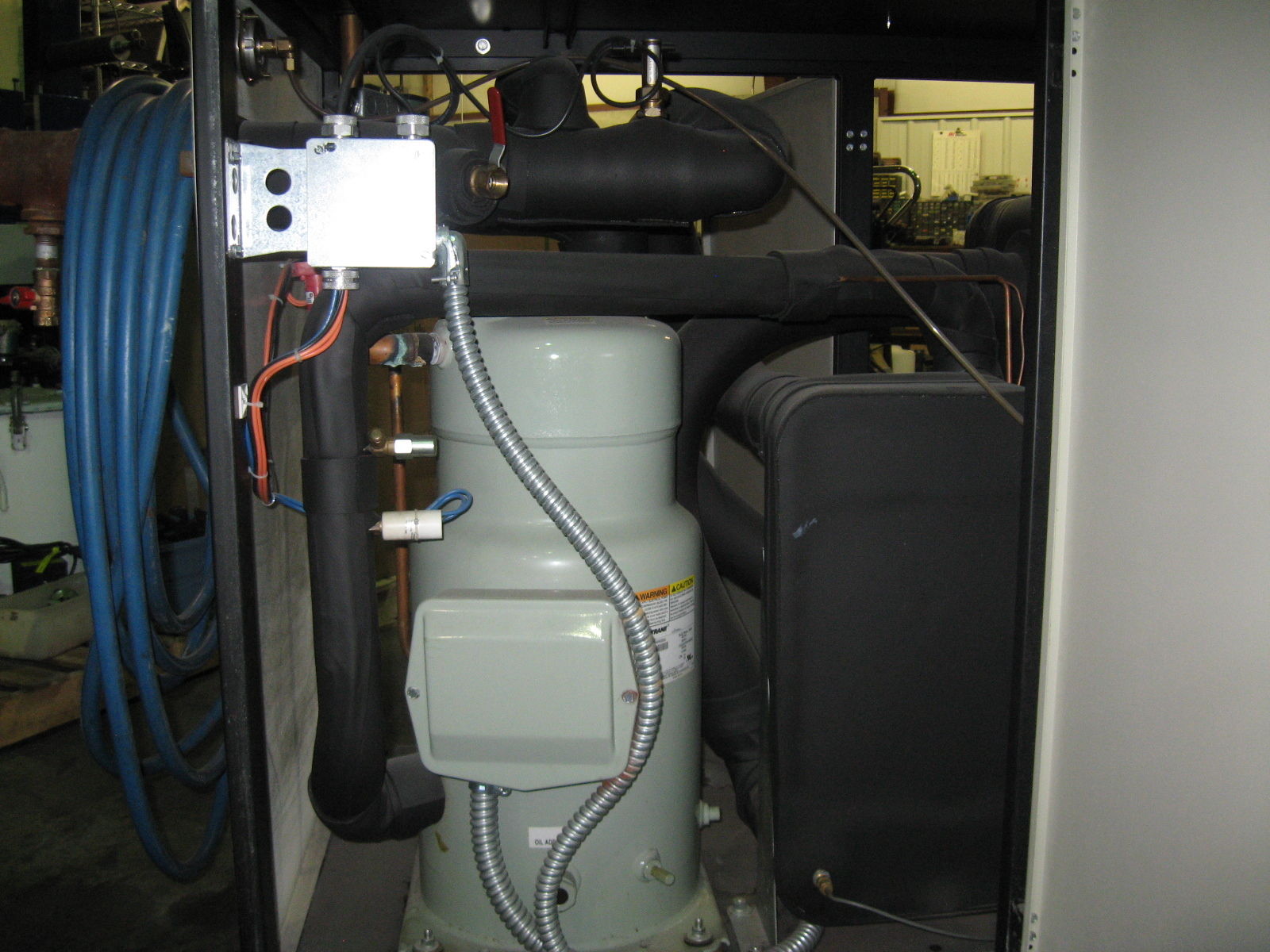

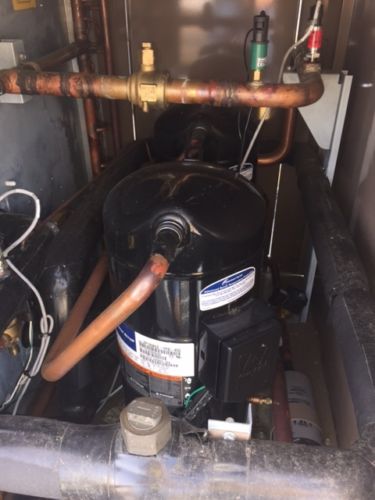

Compressor

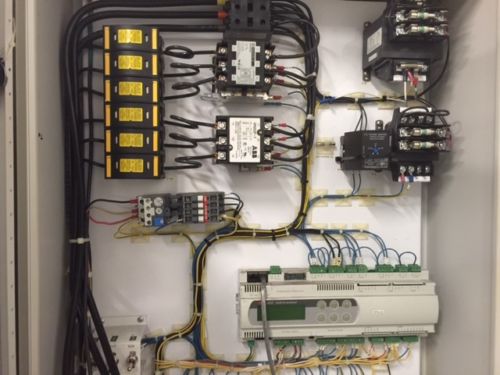

Control Panel
Evaporator/Heat Exchanger
Fan
Manual
Tag
Controls
2 ton | 2013 AEC/Temptek/Advantage 2 ton Air Cooled Chiller, 460V, R410A, Run, Tested & Guaranteed
Offered by KIG in October 2019 was this nice 2013 Advantage/Temptek 2 ton packaged Air Cooled Chiller. At the time of this listing, we are just preparing it to go through refurb and test at our Clinton MA shop, where it will be cleaned, checked and leak tested, and run for several days and monitored before being released. 460V, 3 phase power. 48°F is lowest standard setpoint, but we can configure this design for lower glycol temps if needed. This is an indoor chiller, and has 3/4 hp process pump. This unit is made by Advantage/Temptek in Indiana USA. We have provided dozens of these units over the years, and they are well-built true workhorses.
Model: M1-2A-CH
Serial No. 128081
3/4 hp pump, insulated tank
Refrigerant guages, R410A
48°F to 70°F standard temp range
20°F glycol temp possible (let us know in advance)
460 volt 3 phase power / 9.1 amps
2 ton | 2009 Advantage 2 ton Air Cooled GLYCOL Brewery Chiller, Refurb, 230V, 3ph, Tested
This 2009 Advantage 2 ton Air Cooled Glycol Chiller was acquired by KIG in March 2018. We went through unit, run and tested, checked charge, and also re-piped internal glycol piping for brewery applications. This means the glycol is drawn from the chiller reservoir tank by the pump, through its plate heat exchanger, out to your tanks, and then the return can come back to chiller with little or no pressure. Unit is R410a newer green refrigerant, and 208/230V 3-phase power. It has a 3/4 hp process pump. At 28°F glycol temps figure about 12,000 to 13,000 BTU's/hr. Can handle a 5 BBL operation or smaller, depending on specifics. This is an indoor unit. Sold with 30 day money back guarantee.
This unit runs close to $7K brand new.
Model: M1-2A-CH
Serial No. 112475
Date of Mfg: 12/10/2009
230V/3ph/60hz, 17 amps
R410a refrigerant
3/4 HP pump
Scroll Compressor
Size: 24"W x 30"H x 37"L
2 ton | 2016 Advantage 2 ton Air Cooled GLYCOL Chiller, NEVER USED, 0 hrs, Brewery LOW TEMP
Arrived at KIG in January 2018 was this NEVER USED new condition Advantage/Temptek 2 ton Brewery Chiller. Brewer in Boston purchased this 230 volt 3 phase unit and their contractor could not supply the 3 phase power cost effectively they were promised, so this unit was traded in to KIG against a new single phase power chiller (which we provide many of). This is an indoor chiller, specifically built for a brewery with an upgraded 2 hp process glycol pump, 25°F glycol temp range, and special piping configuration for your glycol supply/return loop to multiple tanks. Unit can be used for other cooling applications at higher temps if needed also. Assume about 13,500 BTU's/hr at 25°F glycol temps.
This unit runs close to $7k brand new.
Advantage (Temptek) Model BC-2A
Mfg Date 2016. Delivered in 2017.
208/230 - 3 phase power - 19 amps
Upgraded to 2 hp stainless glycol pump
Overhead piping kit (solenoid and check valve to prevent backflow spillover when powered down)
0 pressure line return configuration
Indoor Chiller
13,500 BTU's/hr at 25°F glycol temp
R410a refrigerant
Scroll compressor
7.5 gallon reservoir
30" high x 24" wide x 37" long
2 ton | 2011 Advantage 2 ton Air Cooled Chiller NEVER used 0 hrs, 460 Volt 3 phase R410a
Arrived at KIG in January 2018 was this NEVER USED new condition Advantage/Temptek 2 ton Air Cooled Water / Glycol Chiller. Unit had original plastic caps on water/glycol lines when we received it, and further inspection of heat exchanger and tank confirms unit has 0 hours. It is 460V 3 phase power, newer R410a refrigerant. We run and test prior to shipping, and offer right of return. Setpoint range is 20°F to 90°F. Ideal for manufacturing, but possible for brewery also if you have 460/480V power.
This unit runs close to $6.5K brand new.
Model: M1-2A-41HFX
Serial No. 121155
Build date: 10/14/2011 (never used)
fla 8.5 amps
460V 3 phase power
R410a refrigerant
2 ton | 2014 Riedel 2 Ton Portable Air Cooled Chiller w Pump, Tank, NEW Never Used, 460V
Arrived at KIG in March 2016 were these three never used, never installed, 2014 Riedel 2 Ton Air Cooled Chillers. This German made unit is wonderfully engineered with a nice Danfoss/Maneurop Hermetic Reciprocating Compressor, many redundant features, and a high end 1.7 hp Grundfoss Pump. The unit was originally intended to cool a Trumpf laser/punch machine, but we are making some slight modifications including adding a terminal block for incoming 460 volt power, and a power supply for the onboard controller; so this is a truly packaged portable unit capable of cooling any basic industrial application. This is an indoor chiller. Again, we can't say enough about the quality. See the run off videos of first unit shipped! Units were run and tested at 42°F to 70°F fluid temp range at our 13,000 square foot facility prior to shipping.
Model: L0/5 TR2
Mfg Part #: MN 1708263
460 Volt, 3 Phase
6.1 Amps
R134A refrigerant
CE Approved
Run-off videos of first unit shipped: Video 1
Video 2
Operators Manual
Temperature Controller Manual
Technical Data
Electrical Prints
Flow Diagram

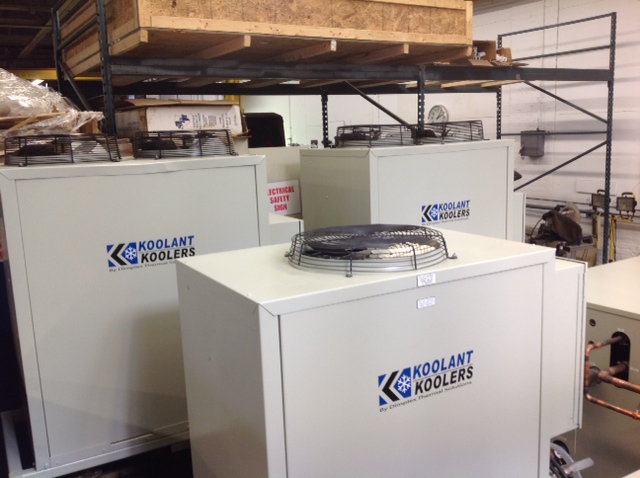

3 Units
Inside

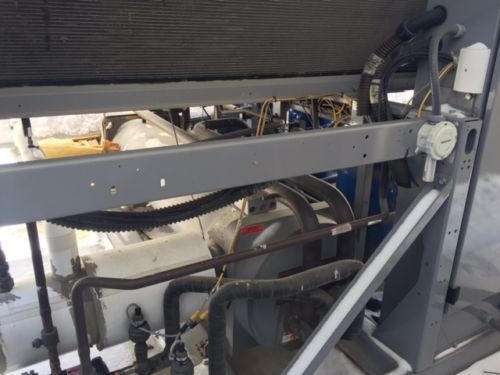

Heat Exchanger

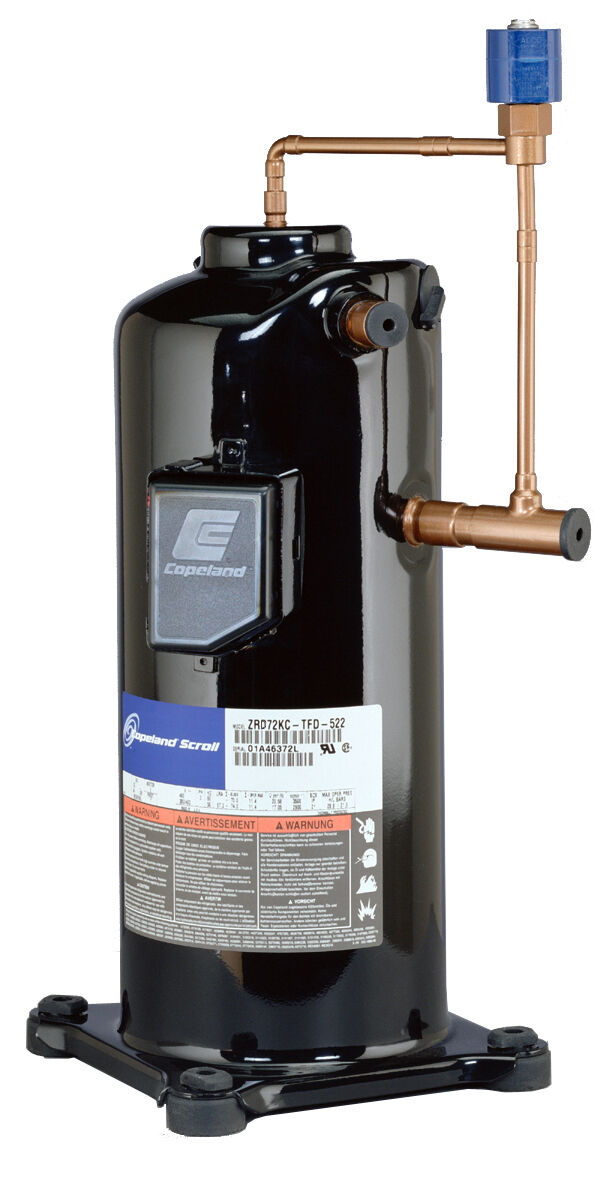

Compressor

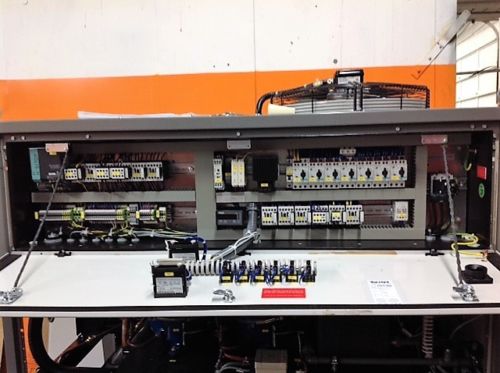

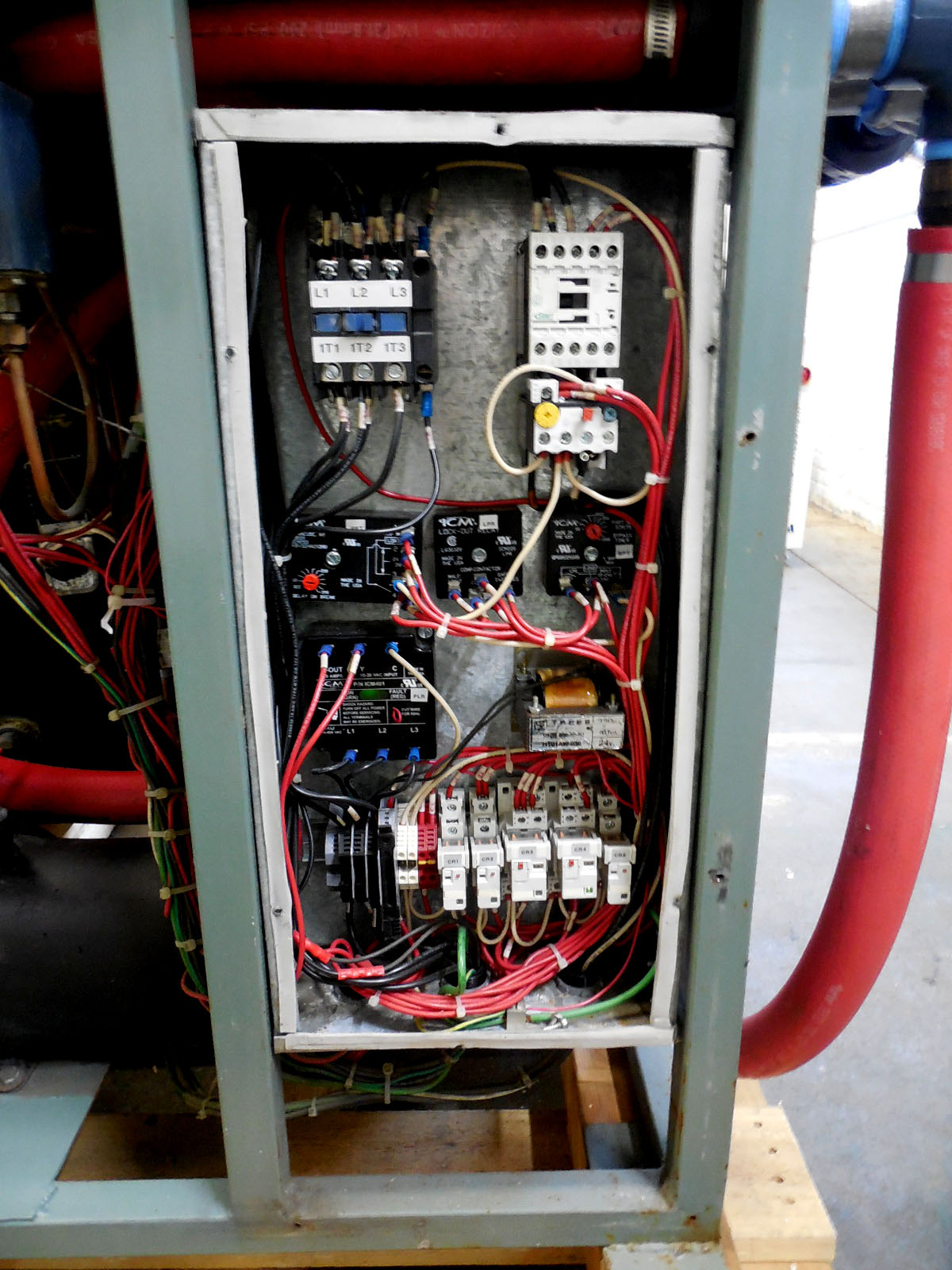

Controls
Control Panel
Chiller Tag
Pump Tag
2 ton | 2015 Koolant Koolers 2 Ton Portable Air Cooled Chiller, w/ Pump & Tank, New Condition!
Arrived at KIG in March 2016 was this 2015 Koolant Koolers 2 Ton Air Cooled Chiller. This is a clean design and USA built. This unit was returned from the customer because they ordered the wrong size, as a precaution Koolant Koolers re-tested unit. 230 volt single phase power. 1 hp process pump and reservoir tank. Run and tested prior to shipping, and sold with money back guarantee.
Model: SVI-2000-M
Serial No. W005307-001
Indoor Unit
1 hp pump - 10 GPM at 35 PSI and 20 GPM at 25 PSI
8 gallon tank
Fluid temperature range: 50°F to 90°F
Ambient temperature range: 50°F to 95°F
Connections 1.25" NPT
Min amps 29, max breaker 43.5
230 volts, single phase, 60 Hz
R407C refrigerant
Mfg date: February 2015
Original "Data-Pak" Testing Results from Manufacturer
Technical Brochure
2 ton | 2006 Advantage 2 ton Glycol Brewery Chiller, Air Cooled, 230 Volt, 25°F capable
Run & Tested for Manufacture (45°F+) or Brewery (25°F+)
Arrived at KIG in July 2015 was this nice 2006 Advantage Air Cooled Chiller. This unit has its own process pump, an internal reservoir, and a brazed/plate heat exchanger. We have run and tested this chiller extensively. It can be used with water for standard manufacturing (in which case we will limit controller setpoint to 45°F), or it can be used with a 30% glycol mix for a lower temperature application like a brewery - in which case we will set it up with a 20°F minimum setpoint. This is an indoor chiller, designed to be in an indoor warehouse/facility environment. It is designed for closed loop flow.
Model: M1-2A-CH
Serial No. 96626
Date of manufacture: 7/5/2006
230 volt 3 phase
4.5 amps
Refrigerant: R22

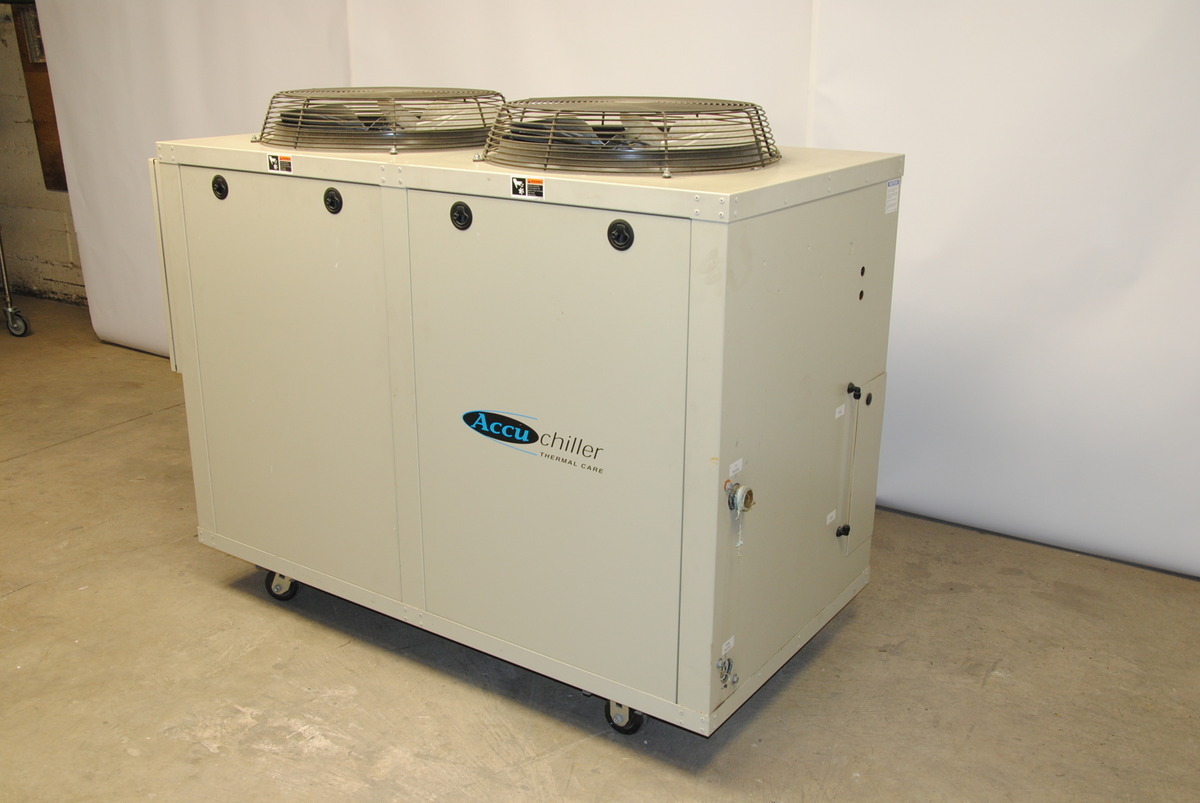

2 ton | 2005 Thermal Care 2 ton Accuchiller EQ2A0204 Air Cooled Chiller 460V
Model: EQ2A0204
Serial No. I3059010605
460/3 phase/60 Hz
2 hp compressor
1 hp process pump
0.25 hp condenser fan
30F to 65F temp range

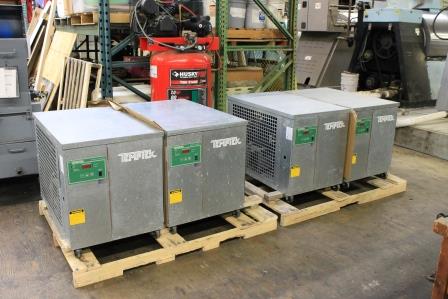

2 ton | 2004 Temptek CF Series – 2 ton Air Cooled Portable Chiller 208V
Model: CF-2A
3/4 HP Pump (4.8 GPM @ 40 PSI)
7.5 Gallon insulated non-ferrous reservoir
208/3/60
Full Load Amps: 12.2 Amps
Refrig Type: R-22
Control Panel
Control Panel Open
Compressor

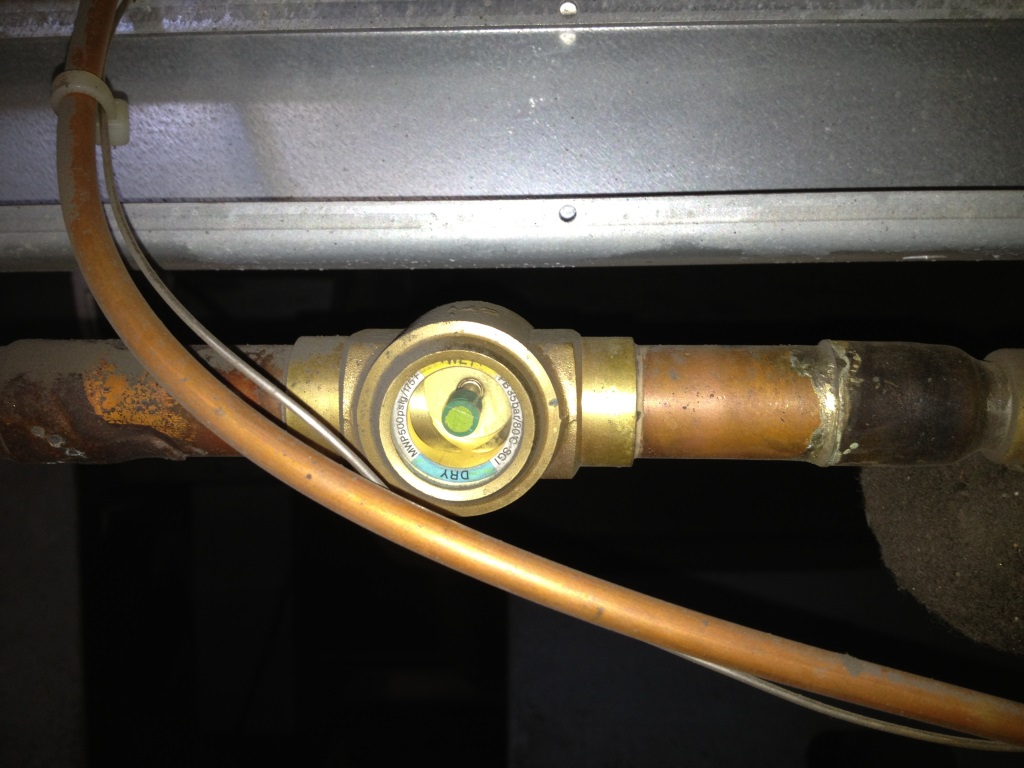

Site Glass
Single Unit
Tag
2 ton | 2004 Hyfra 2 ton VWK 90/1-S Air Cooled Chiller 480 Volt 3 Phase
Model: VWK 90/1-S
Serial: 0410118
480V/60Hz/3 Phase
Number of Scroll Compressors: 1
Operating Current: 9.7 Amps
Air Flow Rate Max: 5500
Water Tank Volume: 120L
Weight: 200kg
Weight with Water filled: 320kg
Control Panel
Compressor
Tag
Tank

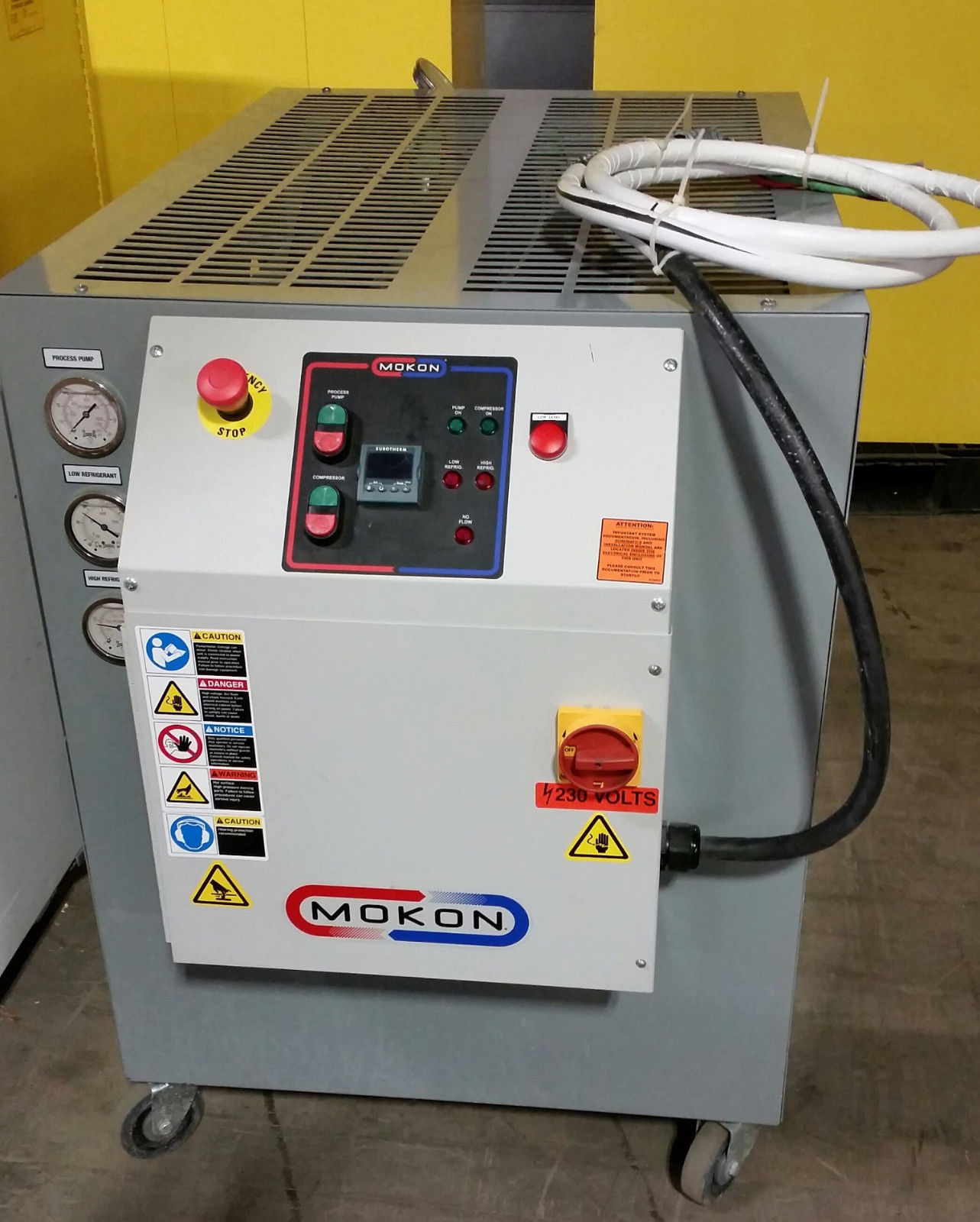

3 ton | Mokon 3 ton Air Cooled Glycol Chiller, 230V, 3 Phase, Like NEW
Model: AS2J03DG
Serial No. 7007873
3/4 hp centrifugal pump
R407c refrigerant
Scroll compressor
230V, 3ph, 60Hz
11.4 amps, full load amps: 16.4
Unit was fully run and tested at KIG in April 2018 prior to shipping.
Operators Manual
Product Data
Electrical Schematic 1
Electrical Schematic 2
3 ton | 2010 Koolant Koolers 3 ton Air Cooled Chiller 460V
Arrived at KIG in December 2016 were these two immaculate 2010 Koolant Koolers 3 hp (3 ton) Air Cooled Chillers. Units have stainless cabinet, 3 hp scroll compressor, pump, tank, and loaded with options. We have run the first unit as high as 80°F setpoint, and also down to 28°F glycol temps. These are INDOOR chillers, and were run-off and tested at our 13,000 square foot facility prior to shipping, and offered with money back guarantee.
Model: JH1500-BP-SO
Serial Number: 310__
3 hp, "3 ton" - indoor unit
R134a refrigerant
480 volt, 3 phase, 60Hz
10.2 min circuit, max breaker 15 amps
3 hp scroll compressor
1 hp chiller pump
Brazed plate exchanger
Stainless construction
Flow switch
Fluid pressure gauge
Alternate View
Open View 1
Open View 2
Open View 3
Control Panel
Tag
3 ton | 2014 Koolant Koolers 3 Ton Portable Air Cooled Chiller w/ Pump, NEW, 0 Hours - TANKLESS
Arrived at KIG in March 2016 was this 2014 Koolant Koolers 3 Ton "AVI Series" Air Cooled Chiller. This is a robust design and USA built. This unit was new, never used, in original crate. It features a cleanable heat exchanger where the plates can be disassembled. It is ideal for dirty fluid or problem fluid, yet fine for clean water/fluid of course too. It has a 1 hp pump and is a "tankless" design, intended to draw from your tank/reservoir, through the heat exchanger, then back out to your process or holding tank. Unit has the onboard fluid filter option - see photos. This is an indoor chiller, with fluid setpoint range of 50°F to 90°F. R407C refrigerant. Run and tested before shipping, and sold with money back guarantee.
Model: AVI-3000-M
Serial No. 41066
Mfg Date: December 2014
1 hp pump (TANKLESS... draws from your reservoir)
460 volt, 3 phase power
R407C refrigerant
Cleanable heat exchanger (can be dismantled)
Min amps 12, Max amps 20
50°F to 95°F ambient indoor temp
Fluid setpoint range: 50°F to 90°F
3 ton | Koolant Koolers Dimplex 3 Ton Air Cooled Chiller ** 0 HOURS, Never USED! ** 230V
New arrival to KIG in 2015 was this perfect pre-owned 3 ton Koolant Koolers/Dimplex Thermal Air Cooled Chiller. 230 Volt. This unit was never connected to power and is in NEW condition, with 0 hours. It has a nice Ranco controller, a Sanyo Scroll Compressor (which is actually 3.5 hp) and an upgraded process pump of 2 hp. Reservoir tank with submerged heat exchanger. Even though 0 hours, this unit was powered up, run, and tested at KIG prior to shipping to make sure everything was still tight and leak free, and a run-off video provided.
Model: KV3000
Serial Number: 27629
3.5 hp Sanyo Scroll compressor w/ crankcase heater
2 hp process pump
Reservoir tank
230 volt / 60 hz / 3 phase / 22.6 amp
Full charged, tested, ready to run
Complete manuals, prints, and CD
Rear View
Top/Fan
Control Panel
Coils
Pump
Compressor
Heat Exchanger
Controls
Tag
3 ton | 2011 Temptek 3 ton Air Cooled Chiller 230 Volt
Excellent condition!
Model: CF-3A-21HF-R410A
Serial No.
119670
230V / 3 Ph / 60Hz
Air condensed refrigeration circuit
Hermetic scroll compressor
Hot gas bypass capacity control
3/4 HP pump (7.2 GPM @ 39 PSI)
Automatic low flow bypass valve
Chiller has casters
Weight: approx. 830 lbs.
CF Series Operators Manual
Side View
Rear View
Coils
Control Panel
Inside
Heat Exchanger
Tag
3 ton | Koolant Koolers 3 ton Air Cooled Chiller 230 Volt Model HCV 3000-2PR-L
Unit went through a basic refurbishment, cleaned, and painted.
Model: HCV 3000-2PR-L
Serial: 8999
Compressor HP: 3.6
Dual pump configuration with 1.0 HP on each.
R-22 freon at 9 pounds
230V / 3 phase
Control Panel
Control Panel Open
Compressor/Dual Pump
Pipe Fittings
Side View
Corner View
Tag

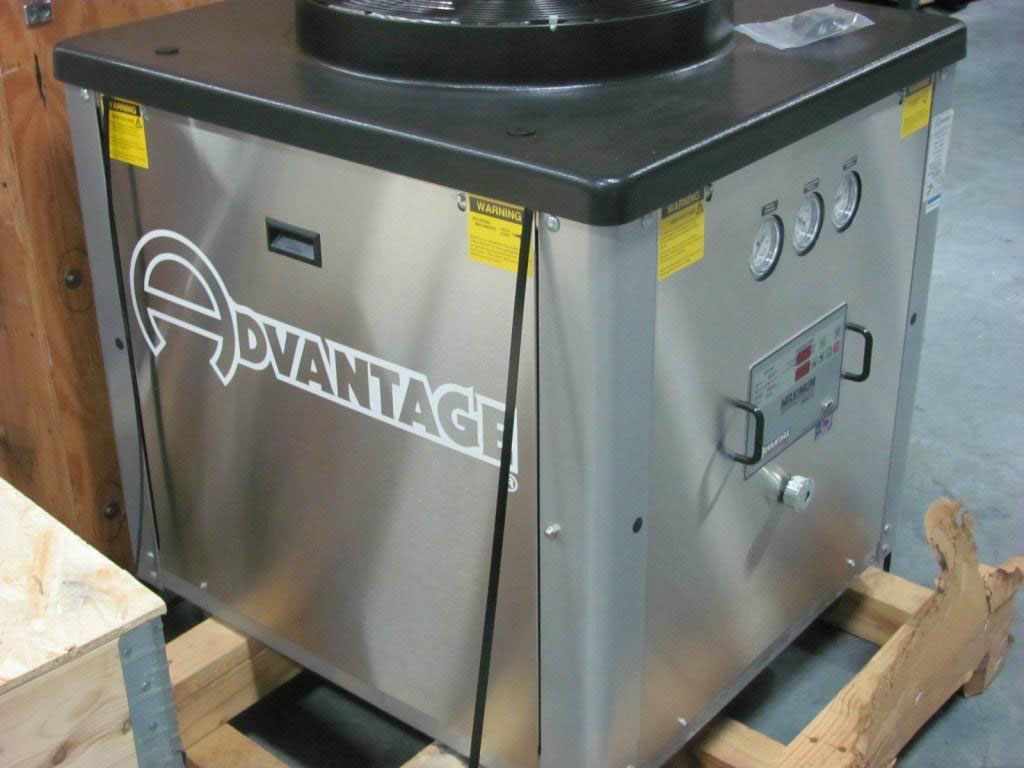

3 ton | 2007 Advantage 3 ton Air Cooled Chiller 460 Volt ***0 Hours! - NEVER USED!!***
Serial: 104391
Model: MK-3AR-41HFZ
460/3/60
Has internal pump. No reservoir tank on this model.
5 ton | 2015 Cold Shot / Zarsky 5 ton Air Cooled Glycol Chiller, 460V, DUAL Pump, TESTED
Arrived at KIG in May 2020 was this nice pre-owned Cold Shot / Zarsky 5 ton Air Cooled Chiller. We have refurbed and supplied dozens of this style unit over the years. Unit was run tested, leak tested, cleaned and cosmetically touched up, and run for several days before shipping. This uses the newer R410a refrigerant. Chiller has DUAL 1 hp pumps, one for chiller circulation and other for process... this is a GREAT arrangement. This chiller is outdoor rated; let us know climate so we can assess ambient limits. Process setpoint down to 25°F capable, but fine for standard industrial temperatures and applications too (and OK for indoors).
Model: ACWC-060-DM-_-_-M20-6
Serial: M102815-1
460 volt, 3 phase power
Min Circuit Amps 14.5
Max Breaker: 25
R410a Refrigerant, 8.5 Lbs
Dual Pump System: 1 hp Chiller Pump and 1 hp Process Pump
5 ton | Koolant Koolers 5 ton Air Cooled Chiller, 460 Volt, 3 HP Pump, Tested & Guaranteed
Arrived at KIG in April 2020 was this nice pre-owned Koolant Koolers / Dimplex Thermal 5 ton Air Cooled Chiller. We have refurbed and supplied dozens of this style unit over the years. Unit was run tested, leak tested, cleaned and cosmetically touched up, and run for several days before shipping. This uses the newer R407C refrigerant and has a scroll compressor, hot gas bypass, water flow bypass, and includes "overhead piping kit" which is normally closed solenoid valve on inlet and check valve on outlet. Chiller has substantial pump upgrade to 3hp. This is an indoor chiller, 460 volt 3 phase power. Process setpoint temp range is 50°F to 90°F.
Mfg ID: 08S107C1GH7A1A-W
Serial No. 50013
5 hp Compressor
Upgraded 3 hp process pump
R407C Refrigerant, 15 lbs charge
460 volt 3 phase power
17.4 full load Amps
5 ton | 2010 Econochill 5 ton Air Cooled Chiller, Refurbished, Cleaned & Tested
Arrived in March 2020 was this nice 2010 Econochill 5 ton Air Cooled Chiller. This chiller has been refurbished, cleaned, and tested at our shop prior to shipping. It is 230 volt, 3 phase power, scroll compressor, R410a refrigerant, and 45°F+ fluid/glycol "standard" temperature range. Consult with us if 25°F glycol temps needed or if it's for a brewery. It is outdoor rated and has an insulated tank and a 1.5 hp process pump. We have provided dozens of these units to customers over the years, and they are well-built true workhorses. Run-off videos are shown below.
Model: RCU-050A-23
Serial No. 3264
1.5 hp pump, insulated tank
Refrigerant: R410A
45°F to 75°F standard temp range
25°F glycol temp possible
230 volt 3 phase power / 40 max amps
Run-off videos:
Video 1 of 4
Video 2 of 4
Video 3 of 4
Video 4 of 4
Pictures:
Open View 1
Open View 2
Open View 3

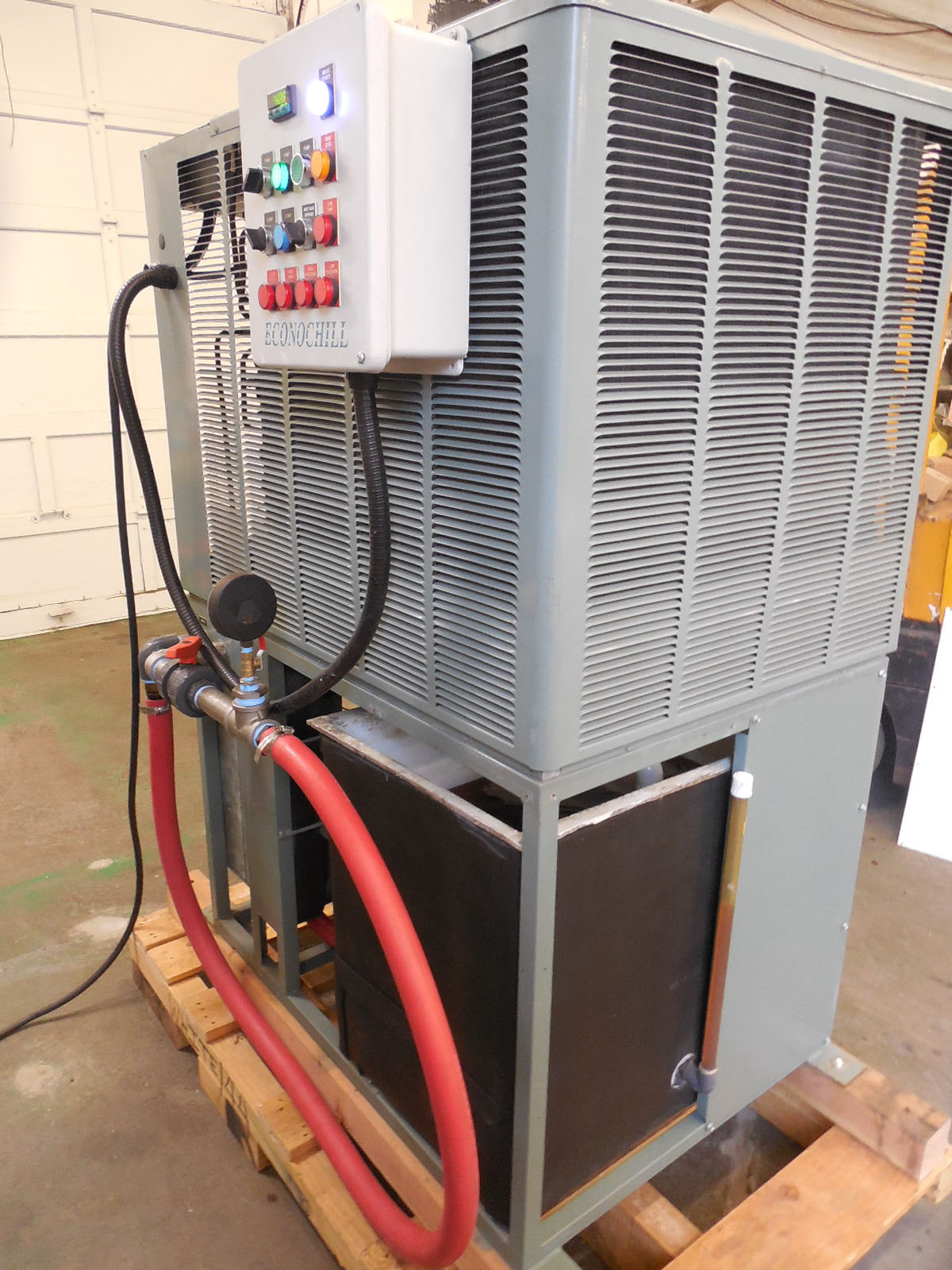

Open View 4
Closed View 1
Closed View 2
Closed View 3
Compressor
Pump
Tank
Controls
Control Panel
Compressor Tag
Chiller Tag
5 ton | 2017 Skyline SAC-05 5 ton Air Cooled Chiller, 230V, 3 phase, perfect condition
Arrived at KIG in November 2018 was this nice 2017 Skyline SAC-05 5 ton Air Cooled Process Chiller. We provided this new to one of our repeat customers, who wanted to quickly upgrade to a 10 ton outdoor rated unit; so we have this back in trade. This is a nice, basic indoor chiller, with a process temp range of 42°F to 72°F. Ideal for plastics, manufacturing, etc.
Model: SAC-05
About 3 months use
Cooling capacity: 5 ton
BTU/hr: 60000
Cooling range: 42°F to 77°F (or 5°C to 25°C)
Reservoir Capacity: 17 gallons
Water pump GPM: 30
Electrical: Volts/Phase: 220/3, Hz: 60, FLA: 27
Compressor: Copeland Scroll
Refrigerant: R407C
Inlet and Outlet: 1 in MNPT
Stainless Steel Reservoir
5 ton | Zarsky Cold Shot 5 ton Air Cooled Glycol Chiller 460V, Refurbished
Arrived at KIG in December 2015 were three (3) Zarsky / Cold Shot 5 ton Air Cooled Chillers. 460 Volt, 5 hp Copeland compressor, OUTDOOR rated, and LOW TEMP (28°F fluid temp) capable. Reservoir tank, process pump, plate style heat exchanger. Units were run and tested completely at 28°F (if needed) at our 13,000 square foot facility prior to shipping, and offered with money back guarantee.
Photos are of prior 5-ton Cold Shots that have come through our shop. We go through them thoroughly, both mechanically (we will run for at least a week, and fix anything that needs fixing) and cosmetically (unit is completely repainted Cold Shot green), and re-insulated as needed.
5 ton | 2012 SAC 5 ton Air Cooled Chiller, 230 volt, Very Very LOW use
Arrived at KIG in October 2015 was this excellent condition 5 ton SAC Air Cooled Chiller. Unit saw very little use. It was run and tested in our Massachusetts shop prior to shipping.
Model: SAC-05
BTU: 60000
220V, 60HZ, 3ph. Also good for 208/230v
R407C Refrigerant
Copeland compressor
Plate Heat Exchanger
Heavy duty industrial pump 35 PSI
Fully insulated stainless steel tank
Microprocessor control, fully digital display, and fill diagnostics panel
Temperature can range from 4.4°C To 25°C (39.9°F to 77°F)
Low flow bypass, max flow rate 30 GPM
Stainless steel piping, inlet & outlet 1"
Unit Weight: 750 lbs.
Unit Dimensions: 59" x 35" x 64"
5 ton | 5 ton hp Glycol Air Cooled Chiller **NEVER USED** brewery winery, SPLIT Style!
Arrived at KIG in October 2015 was this 5 hp / 5 ton Air Cooled Chiller Split w/ Remote Condenser. This is a great solution for a manufacturer, or brewery/winery that wants the heat from the process dissipated outside - and chiller, controls, tank, tank etc. in the facility. This unit was never connected to power and has 0 hours. It uses a Copeland 5 hp compressor and has hot gas bypass and low ambient feature, so this will operate even when 0°F outside. We can configure & run/test unit in our shop at 28°F for your brewery/winery application; equally as fine for a manufacturing operation which uses higher fluid temps. Although run and tested here, the system required field refrigerant piping installed & charge added, as it is SPLIT with the condenser going outside.
Mfg: Temperature Corporation
Model: RCAC-5
Serial No. 1003-445
40 amp fuse
208 Volt / 3 Phase Power
Refrigerant: R22
Low Ambient Option
Capable down to 28°F
Hot Gas Bypass
Insulated Tank, Process Pump
Brazed Plate Exchanger
We have complete manual and documentation
Operation Manual
Flow Switch
Ranco ETC 2 Stage
Ranco Temp Control
Schematic
5 ton | Lot of (4)! Advantage 5 ton Air Cooled Chillers, 230V, remote start/stop
Acquired by KIG in March 2015 were these four similar Advantage 5 ton Air Cooled Chillers. Units were in storage for most of their lifetime. Each is 230 volt / 3 phase, has 5 hp scroll compressor, a brazed/plate exchanger, 1.5 hp process pump, and condenser/fan. Units do not have a reservoir tank, and the electrical configuration (for this auction) is set up to receive a start/stop signal from your process. The chillers in this arrangement are ideal for facility/plant that has a central reservoir tank. The chiller will suction from your tank and flow through chiller and discharge back to your tank. The start/stop of compressor will be controlled by a signal/contact you send (unless you purchase the controller upgrade; see below). Please note, on one unit a temperature gauge is missing, we will replace. The lot photo shows one unit without a top cover, but we have that cover. ALSO: if you want a temperature controller added, we will install a new Ranco temperature controller on each unit for $375 per unit.
Model: MK-5AYR-21HFX
230 volt
35 Amps
1.5 hp process pump
Chiller Schematic
Ranco Temp Control Installation Manual
Ranco Schematic
5 ton | Lot of (2) Koolant Koolers 5 ton Air Cooled Chiller, 460V
These 5 ton Koolant Koolers chillers went through refurbishment here at KIG. Units were stripped, cleaned, painted, run and tested. They feature a robust tube type rectangular exchanger which is cleanable. A new Ranco controller has been installed. Fabricated and installed a new stainless reservoir tank, and an appropriate centrifugal water pump (see photos of pumps).The units were piped in a "closed loop" configuration. We can provide the unit without a tank, for an open loop application for a reduced price (meaning, the suction side of the pump receives fluid from your tank and the chilled fluid discharges open loop style into your tank or reservoir). The units have brand new air filters. The video links here are of prior unit just shipped (it had no tank).
Model: HAV-5000-SP-CL-SO-FILT
Serial No: 10485 and 11129
460V, 3 Ph, 60 Hz, 14.4 Amp
Compressor HP: 5.6
Pump HP: 2.0
Refrigerant: R22
Filter Side
Control Panel
Control Panel Inside
Compressor
Pumps
Tag
5 ton | Lot of (12) 2009-2011 Koolant Koolers 5 ton Air Cooled Portable Chiller, 460V
Model HGV5000
460 volt three phase, R407c Refrigerant
1 hp process pump
On board non-ferrous reservoir tank
All these units had brand new controls added by a certified technician.

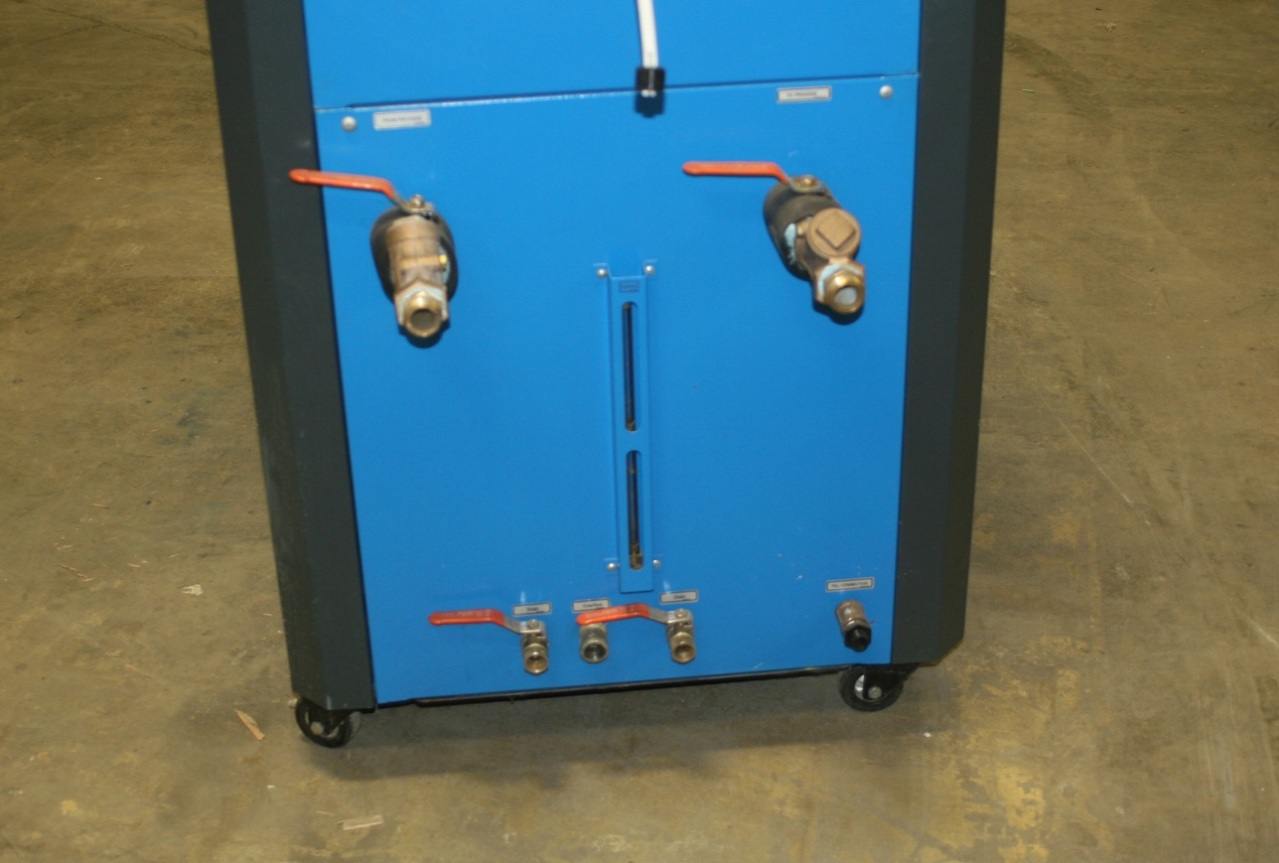

5 ton | 2009 Budzar Shini SIC BWA-AC-05-FCB-12-0-000 Industrial Water Chiller 460 Volt
Model: BWA-AC-05-FCB-12-0-000
Serial: 200903-15030
GPM: 12; HP: 5

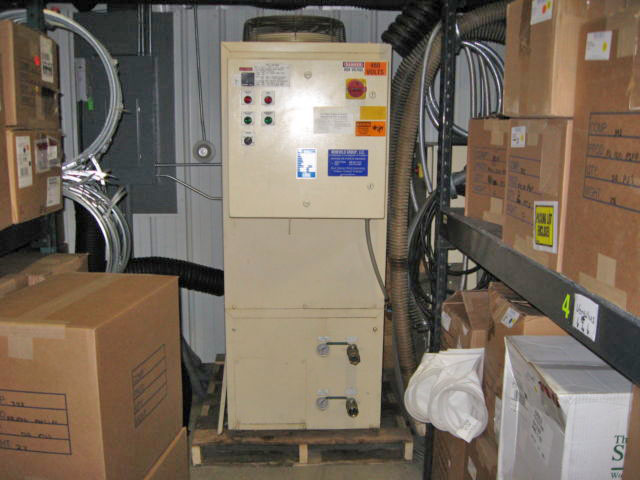

5 ton | 2004 Koolant Koolers 5 ton Air Cooled Chiller
Portable, self contained
460 Volt
5 ton | AEC Air Cooled Chiller 460V - Works Great!
Model # NXGA-5G | Sn. 96K0666 | 460V/3Ph/60Hz
Hp 5/1.5/1 | 15 Amps | R 22
Min. Temp 30F. Max Temp 65F
Serviced, recharged, checked and run off.
AEC PS2 Air Cooled Chiller Manual
5 ton | Temptek CF-5A Air Cooled Chiller 230 Volt
Model: CF-5A
Serial: 48466 9-9-70117
1999 Vintage, R-22 (29.4 lbs) , 230 volt, All covers present
Glycol / Water
Process Pump & Tank. Portable Design. Solid, Nice Shape.
5 ton | 2007 Cold Shot Chillers Portable 5 Ton Air Cooled Chiller Model ACWC-60-E
Model: ACWC-60-E
Serial: M101707-1
Pump: 1HP/1 PH ODP
Volt: 208/230/3 Hz: 60
MCA: 32.5
Freon: 6.5#R-22

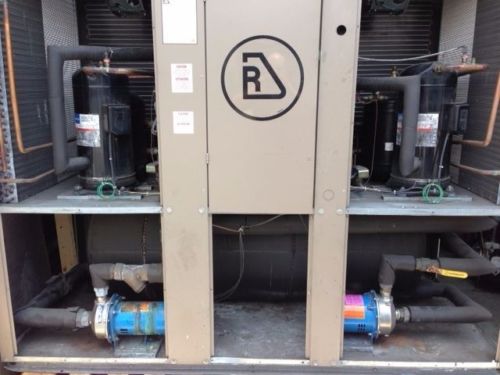

6 ton | 2016 Riedel 6 Ton Dual Compressor Air Cooled Chiller, 460V, *0 hrs!*
Arrived at KIG in April 2017 were these 2 never used surplus Dual Compressor 6 ton Riedel Air Cooled Chillers. Unit is 460 volt 3 phase power. Dual compressors Model MTZ-36. We have two of these units. Although originally set up for a "dual zone" laser machine application (where the 2nd smaller zone "steals" some flow and cooling from the primary), we are modifying this to be a conventional industrial chiller with a single process pump. Unit is wonderfully engineered, and although not intended to be out in the elements and precipitation, it has enhanced hi/low ambient, so it can run in -4°F to 106°F ambient conditions. (If you are within this range, you can put outdoors under a structure/roof). Unit has a 37 gallon tank, uses R407c refrigerant, and we set these up for 48°F to 80°F process temps. Amazingly engineered German units.
Photo is of the exact model number. Might be different serial number, as we have/had several of the PC160 chillers.
Model: PC160.01-NZ-DIS
R407C refrigerant
21.5 Kw net refrigeration capacity (about 6 tons)
2 Compressors (Danfoss MTZ-36 Dual)
2 Pumps (one will be disabled/removed)
Primary insulated reservoir capacity: 37 gallons
460 Volt 3 Phase Power, 31.5 Amps
Weight: 350 kg
Side View
Side/Front View
Rear View
Inside View 1
Inside View 2
Compressors
Control Panel
Controls
6 ton | 2011 ChillKing 6 ton Industrial Glycol Air Cooled Chiller, 6hp, 208/230V, R410a
Arrived January 2017 to KIG was this great USA-made ChillKing 6 hp / 6 ton Glycol Chiller. This unit has a single scroll compressor, a stainless tank, the ChillKing "no freeze" evaporator coil, uses R410a refrigerant, and it's outdoor rated for various USA climates and weatherproof - but fine for indoors too. We run and test all our refurbished glycol chillers at 28°F fluid temp.
Model: GC60CK3
Year of manufacture: 2011
60,000 BTU scroll compressor
At 28°F Glycol temps, achieves about 28,000 BTU/hr
208/230V 3 phase, 29 amps, max fuse 44 amps
1 hp pump rated up to 47 GPM/49 PSI max
R410a refrigerant
44 gallon stainless tank, insulated
Glycol level switch and audible and light alarm added by KIG in our shop.
About 48" wide x 75" long x 39" tall x 900 lbs. This configuration is the "horizontal" low profile design.
Will be run and tested at KIG prior to shipping.
6 ton | Riedel 6 Ton Dual Circuit Air Cooled Chiller, NEW Never Used, for IPG Lasers
Arrived at KIG in January 2017 was this never used surplus Dual circuit 6 ton Riedel Air Cooled Chiller. Unit is 460 volt and a customer dual circuit design for laser machine. This one is intended for IPG lasers models YLS 4000 thru YLS 7000. It has two tanks, two pumps, and two Danfoss compressors Model MTZ-36. Okay for other lasers too, but a bit specialized for non-laser applications.
Part No. PC160.01-NZW-DIS
Model: 2KP016030197838
Serial No. 7052270001
IPG Laser (YLS 4000 - YLS7000)
R407C Refrigerant
21.5 Kw Net refrigeration capacity (about 6 tons)
2 Compressors (Danfoss MTZ-36 dual)
2 Pumps
Design Operating Temp 33°C/90°F
Max Operating temp 105°F
Primary insulated reservoir capacity: 140 liters
460 Volt 3 Phase Power - 31.5 AMPS
Weight 350 Kg
Normal water circuit (the primary circuit) cooling capacity 17.5 Kw (5 tons)
Outlet temp 21°C/70°F and return temp 26°C/79°F
69 l/min (18.2 gpm) at 1.5 bar (22 psi) / 46 l/min (12 gpm) at 4.0 bar (58 psi)
DI water circuit cooling capacity 4 Kw / (1.1 tons)
Outlet temp 26°C/79°F and return temp 31°C/88°F
20 l/min (5.3 gpm) at 1.5 bar (22 psi) / 15 l/min (4 gpm) at 4.0 bar (58 psi)
6 ton | 2012 ChillKing 6 ton Industrial Glycol Air Cooled Chiller, Yogurt, Brewery, etc.
Arrived at KIG in July 2015 was this pristine 2012 ChillKing 6 ton air cooled water/glycol chiller. This unit was on the roof of a frozen yogurt business. It is 208/230 volt, 3 phase, has a 6 hp Copeland Scroll Compressor, 1 hp process pump, and 77 gallon stainless reservoir with coil type heat exchanger. This unit is OUTDOOR rated and has LOW AMBIENT option too, so this can operate year round in colder climates and equally as fine for warm climates too. The unit can be used for applications ranging from winery, brewery, frozen yogurt, plating/anodizing, manufacturing (injection molding), etc. This chiller was run and tested extensively at KIG's 13,000 square-foot facility before being shipped out.
Model: GC072CK3
Serial No. CK12C2242
72,000 BTU/HR at 95°F degree ambient and 55°F degree water out
Electrical: 208/230V, 60hz, 3 phase
Minimum Circuit Ampacity: 34, Maximum Fuse Size: 52 Amps
One 77 gallon stainless steel tank with ChillKing evaporator coil inside
1 HP water pump: 47 GPM max, 49 PSI max
R410a Refrigerant
One 72,000 BTU/HR Copeland scroll compressor
Approximate shipping weight 950 lbs.
Dimensions: 48-1/4" wide, 74-1/4" long, 42-3/4" tall
Decibels: 78
Outdoor Rated
Low Ambient Option
Level switch in tank leading to contact/timer for make up water fill
ChillKing Installation Manual
Chiller Specs

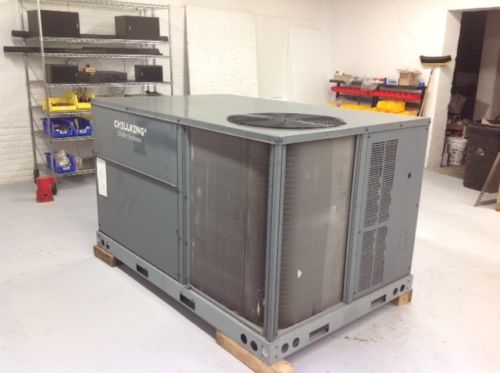

Alternate View
Inlet/Outlet Side
Compressor
Tank
Controls
Tag
6 ton | Thermalcare Accuchiller Air Cooled Chiller
Model: AQOA0604
Serial: 75450010105
460/3/60 Volt
5.5 HP Pump

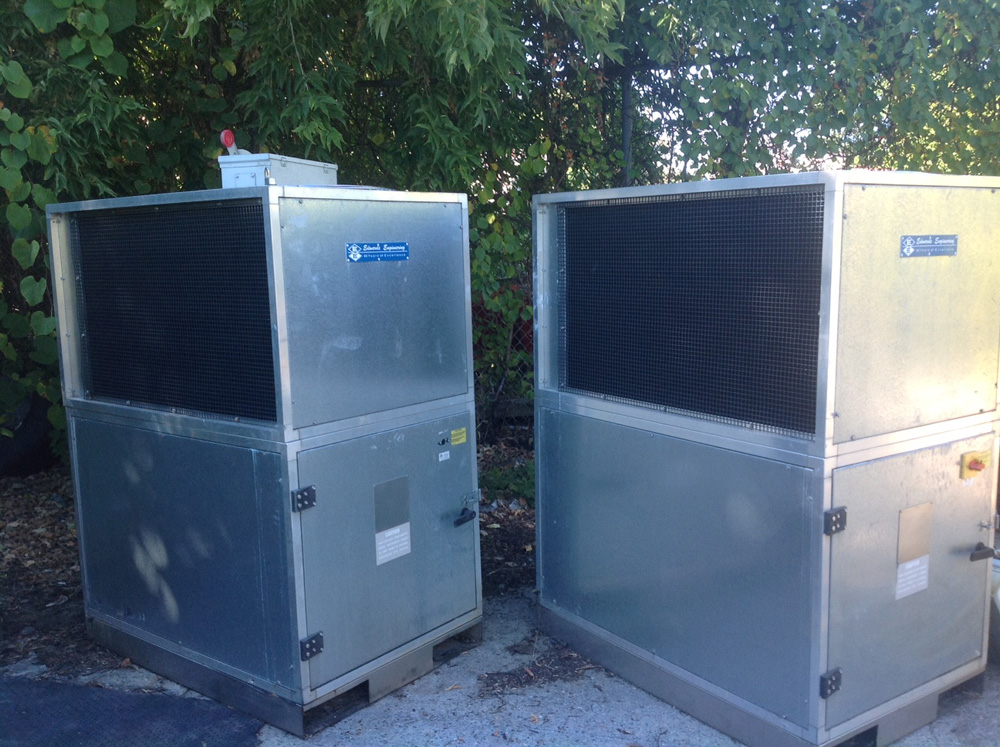

7 ton | 2009 Edwards Engineering *Low Temp* BREWERY 7 ton Air Cooled Chiller, 460 Volts
Outdoor rated, TESTED!
Ideal for breweries! Low Temp operation!
Model: CF-07-A-1ZB3
Serial: 097771 & 097772
OUTDOOR Rated Unit, but can run indoors too
460 Volt
R410A Refrigerant
Single Scroll Compressor
Pumps: 1 Grundfos Process Pump AND 1 small circulating internal pumps
Tank: 41 Gallon
Outdoor Rated, Low Ambient Capable. Dual Fans, VFD Drive, Insulated Enclosure
Black E-Coated Coils
7.5 ton | 2011 Cold Shot / Zarsky 7.5 ton Air Cooled Glycol Chiller, 230V, Run, Tested & Guaranteed
Arrived in October 2019 was this nice 2011 Cold Shot (Zarsky) 7.5 ton Air Cooled Chiller. This chiller was refurbished for running and testing at our shop, where it was leak tested, adjusted and cleaned prior to shipment. It is 208/230 volt, 3 phase power, scroll compressor, R410a refrigerant, and 44°F+ fluid/glycol "standard" temperature range. Consult with us if 28°F glycol temps needed or if it's for a brewery. It is outdoor rated and has an insulated tank and a 2 hp process pump. We have provided dozens of these Cold Shot units to customers over the years, and they are well-built true workhorses. Run-off video was posted online.
Model: ACWC-090-EOR
Serial No. M031511-1
2 hp pump tefc
R410a refrigerant
208/230 volt, 3 phase power
MCA 37 amps; max breaker 50 amps
Outdoor rated
Vertical frame style
Standard temp fluid 44°F. 50% glycol suggested.
Will be run and tested at KIG prior to shipping.
7.5 ton | 2014 Cold Shot 7.5 ton Air Cooled Glycol Water Chiller, 230V, Tested & Guaranteed
Arrived at KIG in November 2018 was this 2014 Cold Shot Air Cooled Chiller. We have refurbished, tested, and supplied dozens of this brand to various industries over the years. This unit is 230 volt 3 phase, has an insulated stainless tank, is outdoor rated (but ok for indoors), and has an upgraded 3.0 hp process pump. In standard form this unit can chill to 48°F. If your application is low temp (28°F) and/or a brewery application, we will modify the chiller’s piping and controls/electrical to achieve 28°F glycol.
Model: ACWC-090-EORMLP-_-_-M20-5
Serial No. M0201214-2-2
“Low Profile” horizontal cabinet design
Outdoor rated - but OK for indoor install
208/230 volt, 3 phase power
Upgrade to 3.0 hp Process pump
42 min amps / 55 amp max breaker
R410a refrigerant
7.5 ton | 2013 Cold Shot 7.5 ton Air Cooled Glycol Water Chiller, 230V, Tested & Guaranteed
Arrived at KIG in November 2018, and sold immediately afterward, is this 2013 Cold Shot Air Cooled Chiller. We have refurbished, tested, and supplied dozens of this brand to various industries over the years. This unit is 230 volt 3 phase, has an insulated stainless tank, is outdoor rated (but ok for indoors), and a 1.5hp process pump. In standard form this unit can chill to 48°F. If your application is low temp (28°F) and/or a brewery application, we will modify the chiller’s piping and controls/electrical to achieve 28°F glycol.
Unit was run and tested, and 30 day right-of-return that it is functional.
Model: ACWC-090-EORLP-_-_-M20
Serial No. M072513-2
“Low Profile” horizontal cabinet design
Outdoor rated - but OK for indoor install
208/230 volt, 3 phase power
1.5 hp Process pump
38 min amps / 50 amp max breaker
R410a refrigerant
7.5 ton | 2012 Cold Shot 7.5 ton Air Cooled Chiller 208/230V, R410a
Model: ACWC-090-EOR-_-_-0.5
Serial No. M031712-1
1.5 hp pump
R410a refrigrant
208/230 volt, 3 phase power
1.5 hp pump - rebuilt by KIG
MCA 37 amps - max breaker 50 amps
Outdoor rated
Vertical frame style
Standard temp fluid 44°F. 50% glycol suggested.
Will be run and tested at KIG prior to shipping.
7.5 ton | 2013 Cold Shot 7.5 ton Air Cooled Chiller, 208/230V, R410a
Arrived at KIG in August 2016 was this super clean 2013 7.5 ton Cold Shot Air Cooled Chiller. Low profile design, outdoor rated, 1.5 hp pump, 208/230 volt three phase power. Was run and tested at KIG prior to shipping.
Model: ACWC-090-EORLP-_-_-0-5
Serial No. M030813-1
“Low Profile” horizontal cabinet design
Outdoor rated
208/230 volt, 3 phase power
1.5 hp Process pump
38 min amps / 50 amp max breaker
R410a refrigerant

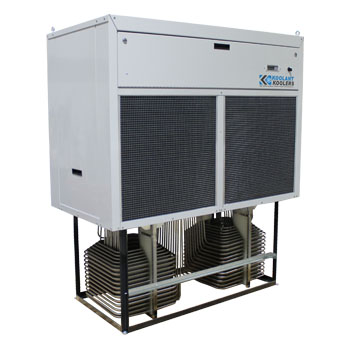

7.5 ton | 2013 Koolant Koolers 7.5 ton Drop-In Air Cooled Tank Chiller, NEW 0 hours, 460V
Arrived at KIG in March 2016 was this never used, never installed, 2013 Koolant Koolers DVI-7500-M 7.5 ton "Drop-In" Air Cooled Chiller. This 460 Volt INDOOR chiller is designed to be lowered into your existing process tank for your process. There are two coil heat exchangers to be submerged in your oil or water-soluble fluid. Each heat exchanger has a rotating agitator. Unit features a 7.5 hp scroll compressor, uses R407c refrigerant, and some nice Carel controls. Brand new in original crate.
New, never used, in original crate!
Model: DVI-7500-M
Serial No. 38743
Drop-In Chiller
460 volt 3 phase power
23 amps, max breaker 40
R407c (18 lbs)
Dual agitator motors
Indoor rated
Mfg Date: December 2013
Original "Data-Pak" Testing Results from Manufacturer
Technical Brochure

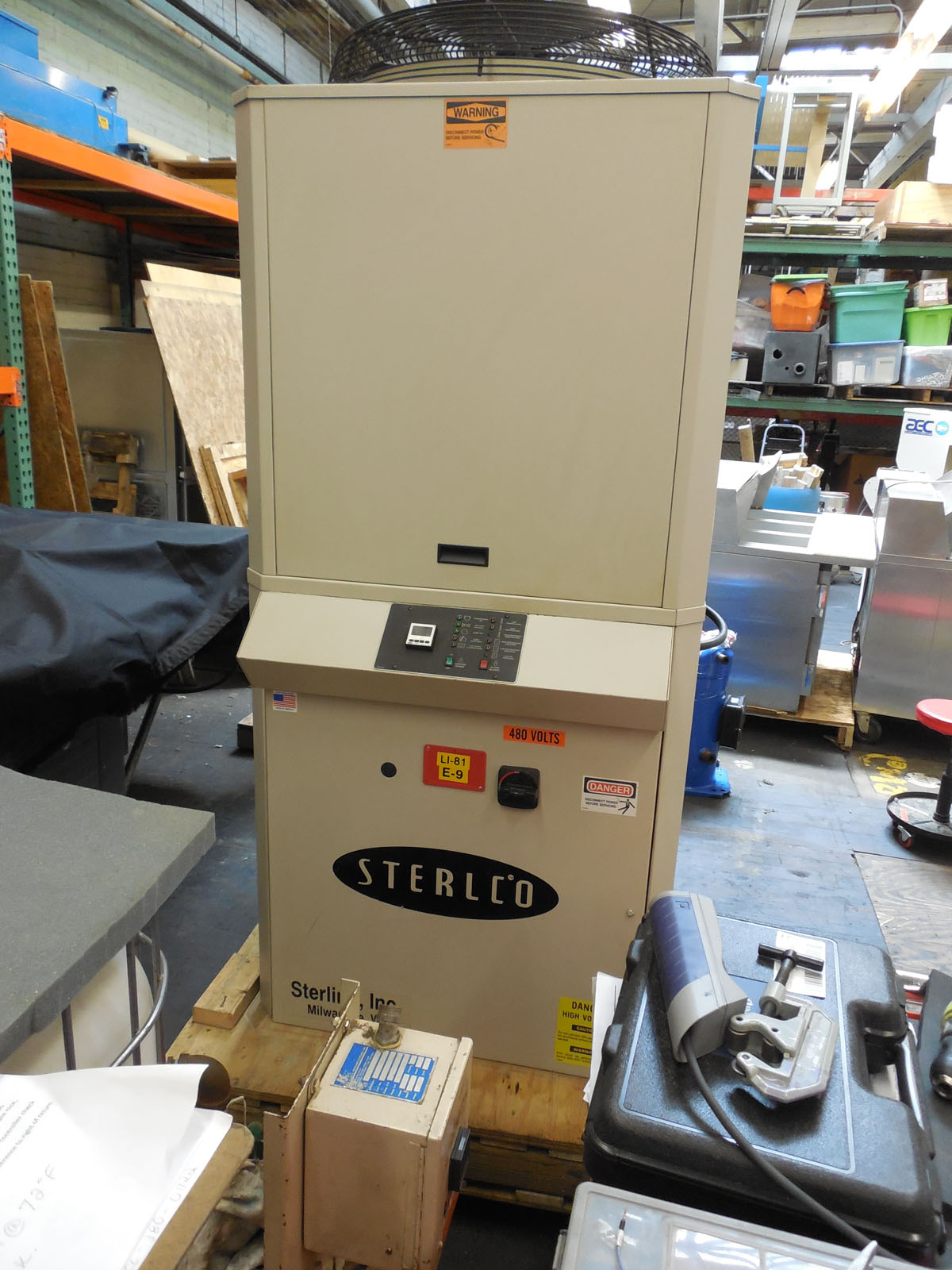

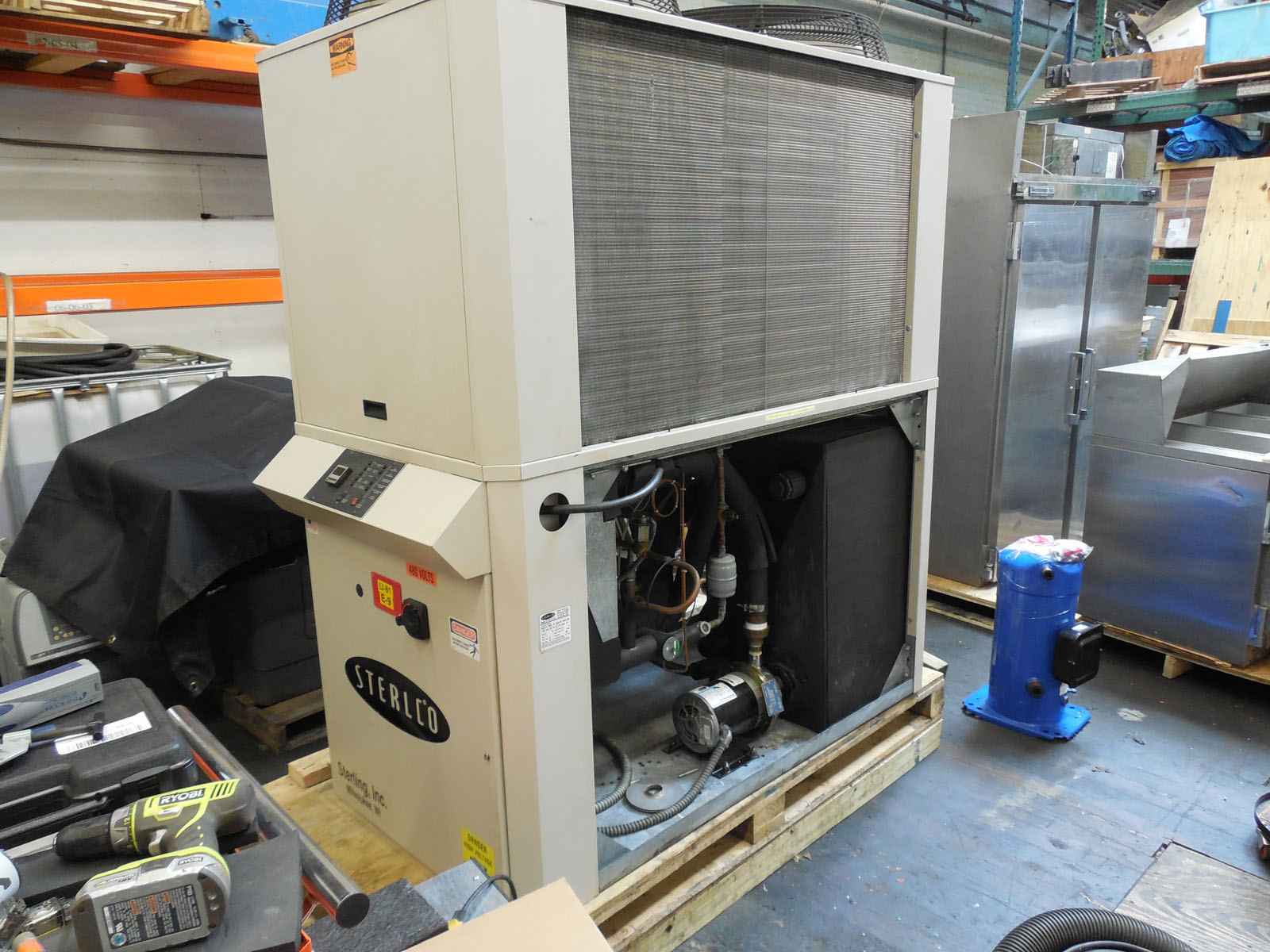

7.5 ton | 2004 AEC Sterling 7.5 hp ton GLYCOL Low Temp Air Cooled Chiller, 208V, Run, Tested
Designed Specifically for 0°F to 30°F Fluid Temperature
Arrived at KIG in July 2015 was this pristine AEC-Sterling-Sterlco 7.5 ton Air Cooled Glycol Chiller. This 208 volt unit is designed specifically for lower temperature applications in the 0°F to 30°F setpoint range, and according to AEC has a heat exchanger sized specifically for it, in addition to added insulation internally. It has a 7.5 hp Copeland Scroll Compressor. It is designed for closed loop flow to your process. Please take into account de-rating of the actual cooling capacity (approx 25% to 35%) when cooling at lower temperatures like this. Has a 1 hp process pump. Unit was run, tested, and checked out thoroughly in our MA shop prior to shipping.

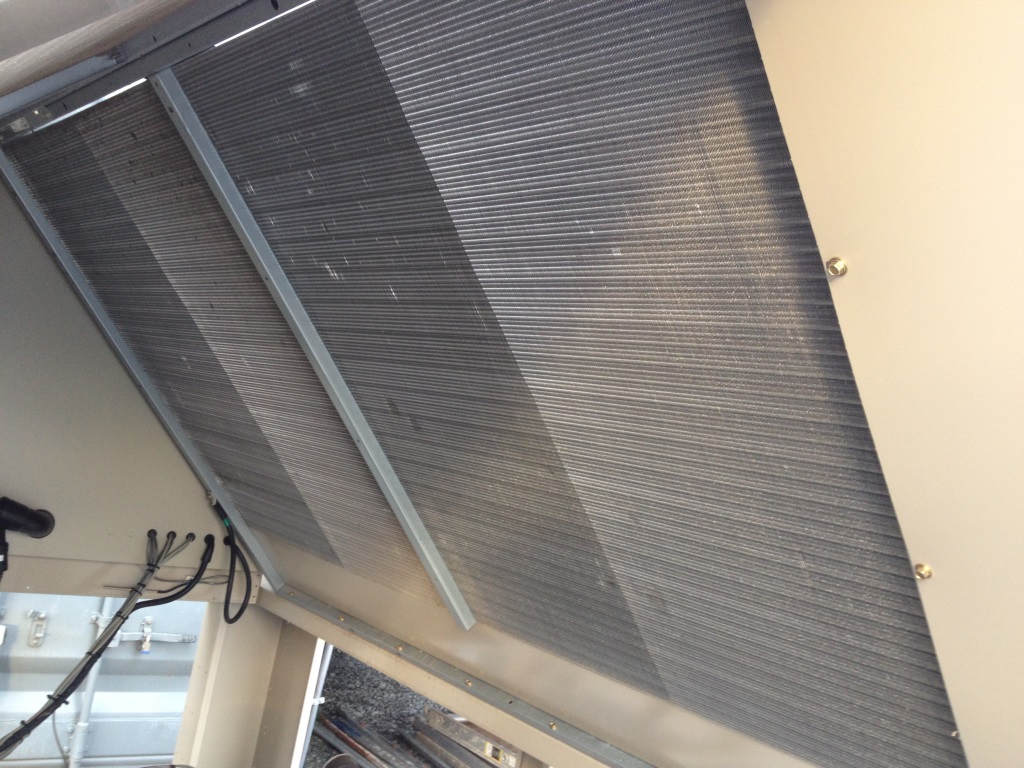

Note 1: See photo of the coil fins. We took off filter cover so you can see how clean/new it is.
Note 2: This is an indoor unit. Please contact us if you're in need of an outdoor unit.
Many of our chillers are not listed yet.
Model: SMCA7.5
Serial No. 34A0315
208 Volt, 3 Phase
39 amps
7.5 hp Copeland Scroll Compressor
1 hp process pump
Low Temperature Glycol Chiller 0°F to 30°F
7.5 ton | 2006 Zarsky (Cold Shot Chillers) 7.5 ton Air Cooled Chiller 230V, Run & Tested
Went through basic refurbishment, cleaning, testing. The process pump has been rebuilt, and new temperature sensor installed. Run-off videos were provided.
Model: ACWC-90-E
Serial No. M012006-3
208/230 Volt, 3 Phase, 60 Hz
36 MCA
1.5 hp Pump
50 HACR Brk
Uses 10.0# R-22 refrigerant
Process fluid: 42°F to 70°F
Ambient air: 40°F to 115°

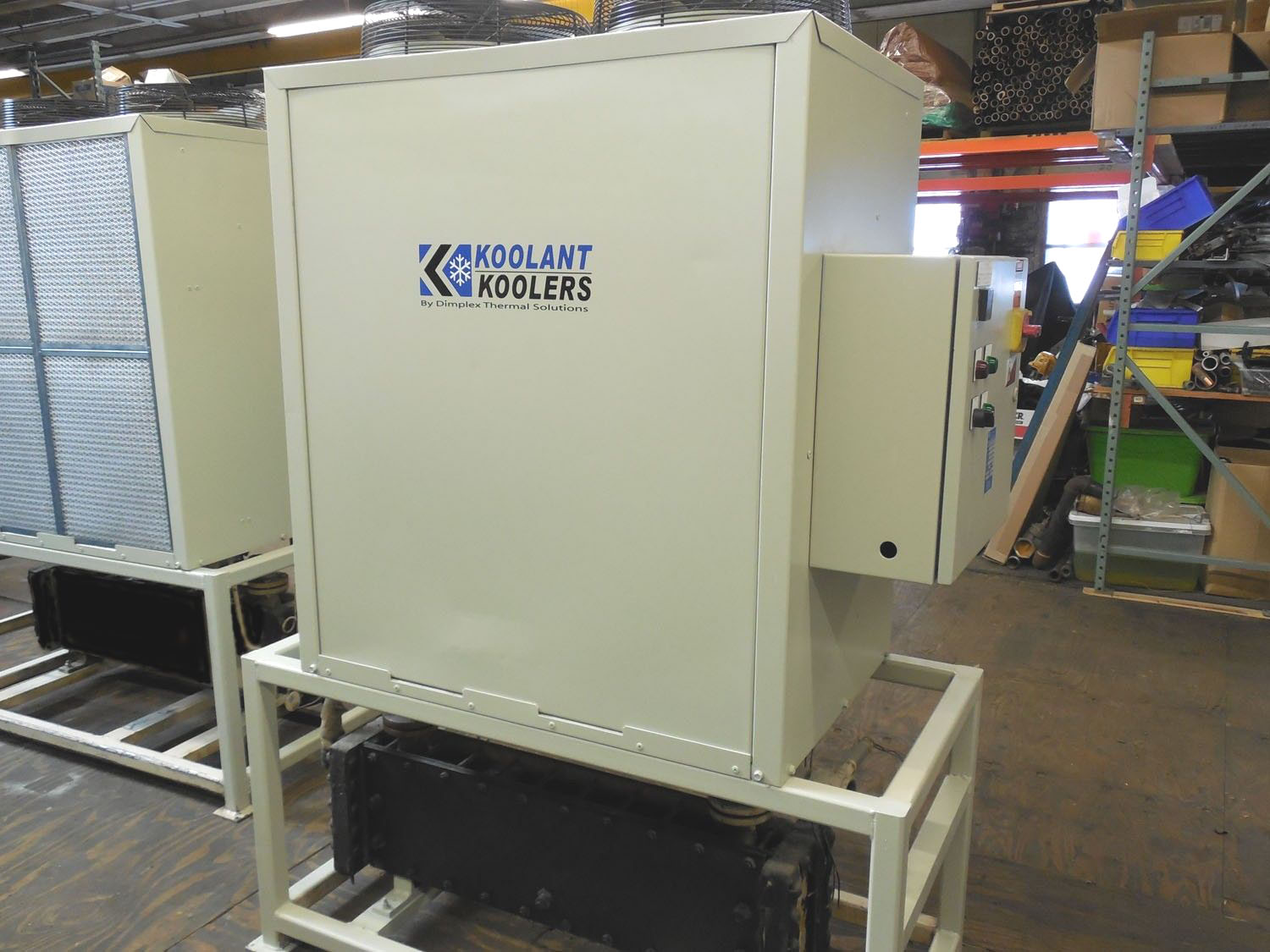

7.5 ton | Lot of (3) Koolant Koolers 7.5 ton Air Cooled Chiller 460V REFURBISHED Run & Tested (8 Ton)
These chillers went through refurbishment here at KIG. We refurbish and sell many chillers... This unit is approximately the 20th Koolant Koolers chiller which has gone through our shop in the last 3 years. Units have been stripped, cleaned, painted, run and tested extensively with a heated test load. It features a Trane 7.5 hp scroll compressor, a 1.5 hp process pump, and stainless steel reservoir tank with new insulation mounted below the unit. The exchanger is coil type submerged in the tank. The units have brand new air filters.
Koolant Koolers - Dimplex Thermal - Model HCV 7500 - 7.5 ton Chiller
Serial number: 8907 (and 2 others)
Dual Condenser Fans
7.5 hp compressor
460 volt - 3 phase - 21.5 amps
Refrigerant: R22
Love 1600 Series Controller Manual
Back Side / Filters
Inside / Coils
Inside / Compressor
Multiple Units

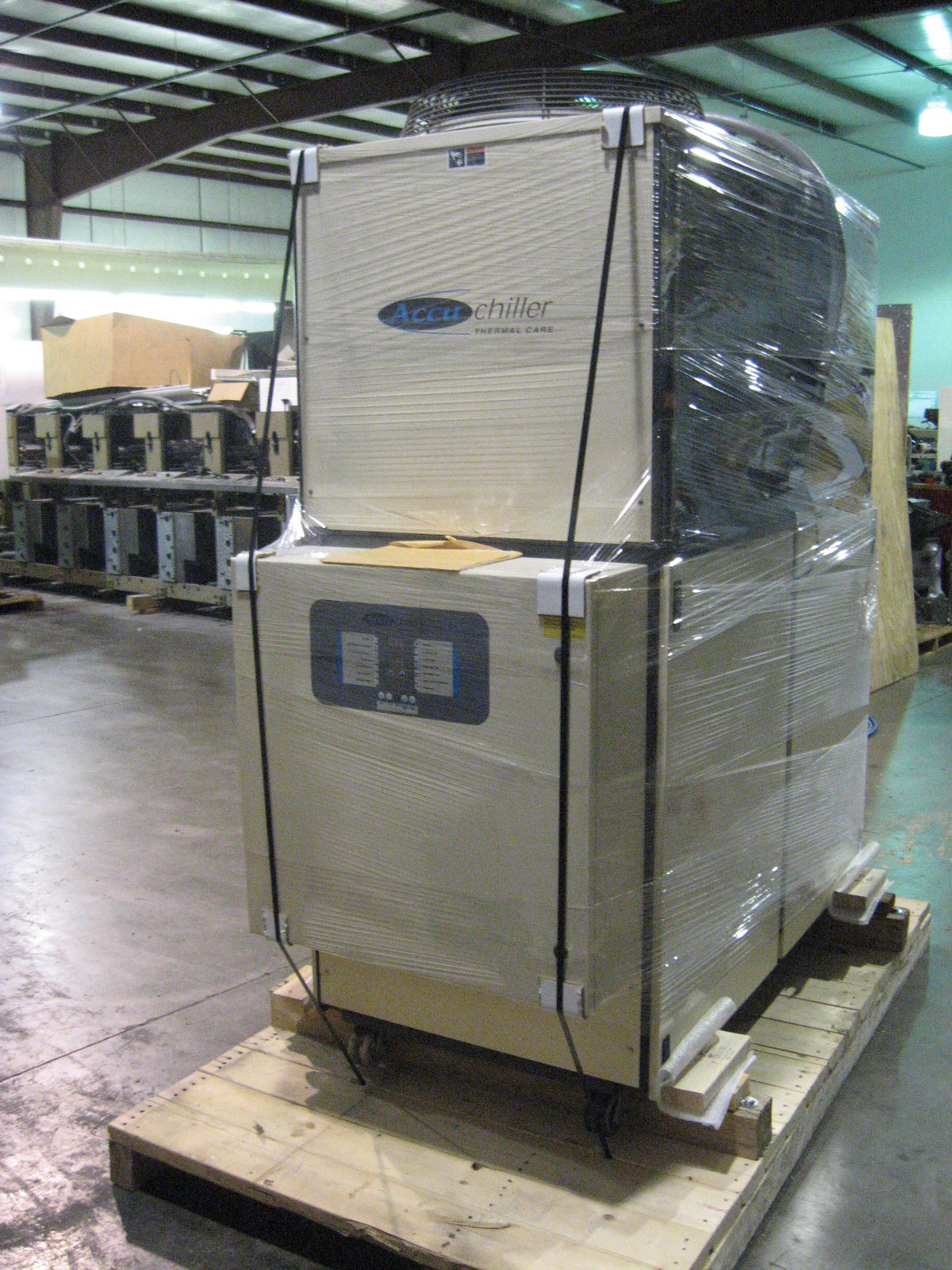

8 ton | 2003 Thermal Care AccuChiller 8 ton Air Cooled Chiller 460V
Arrived at KIG in July 2015 is this 8 ton Thermal Care AccuChiller Air Cooled Chiller. Unit is 460 Volt, has pump and reservoir, and has been cleaned, refurbished, and tested.
Model: SQ2A0804
Serial No. 02064010308
Voltage: 460/3/60
Full load amps: 27.5
Compressor: 7.5 HP
Process Pump: 5 HP
2 x .75 HP condenser fans
R22 Refrigerant
Min temp 30°F
Max temp 65°F
Installation, Operation & Maintenance Manual
Schematic
Alternate View
Back Side
Control Panel Side
Top Side / Fans
Inlet / Outlet
Inside
Compressor & Pump
Heat Exchanger & Coils
Reservoir
Control Panel Inside
Tag
10 ton | 2016 PRM 10 ton 460 volt indoor Air Cooled Chiller
Arrived in November 2020 were these two nice PRM 10 ton air cooled industrial chillers. These are good basic INDOOR industrial closed loop chillers for process applications in the 42°F to 77°F temperature range. Was run and tested thoroughly prior to shipping from KIG
Model: PRM-HC-10
Mfg Date: 2016
460 volt 3 phase power
R407C refrigerant
Indoor use only
5°C (42°F) to 25°C (77°F) setpoint range
Stainless tank, centrifugal pump, wheels.
10 ton | 2010 Cold Shot / Zarsky 10 ton Air Cooled Chiller, Dual Compressor, R410a, 460V
Model: ACWC-120-EM
Serial No. M082610-2
Year of Manufacture: 2010
Dual Scroll Compressors, Staging for efficiency
R410a environmentally friendly refrigerant
Outdoor rated and weatherproof
Design fluid temp: 44°F
460 Volt, 3 phase, amps: 43, max breaker: 55
Stainless Insulated Tank
Brazed Plate Heat Exchanger, submerged in tank
Rrun and tested in our shop prior to shipping
10 ton | 2001 Milacron - Advantage - Temptek 10 ton Air Cooled Chiller w Pump Tank 460V TESTED
Arrived at KIG in March 2016 was this excellent condition 2001 Milacron-Advantage-Temptek 10 ton Portable & Packaged Air Cooled Chiller. KIG has refurbished, tested, and provided dozens of this series and style chiller with outstanding track records in the field. Unit has dual fans, a brazed plate exchanger within the polymer tank, and a 2 hp process pump. In addition to the standard temperature range of 48°F to 70°F, KIG can configure these units for 28°F Glycol temperatures also (de-rating applies). This is an indoor chiller; it must be in an ambient environment of 55°F to 95°F. Shipped with full charge of R22. We ran and tested this unit thoroughly in our 13,000 square-foot chiller facility prior to shipping.
Milacron Model MCA-10
Serial No. 78581-3932A01-01-28
460 volt, 3 phase
Scroll Compressor
Stainless Steel Cabinet
10 ton | Lot of Three (3) 2008/2010 Donaldson 10 ton Air Cooled Chillers, 460 Volt
Arrived at KIG in January 2016 were these three immaculate Donaldson 10 ton Air Cooled Chillers. The European designed units are wonderfully engineered, and can run in low ambient conditions as well as high ambient conditions. They are also suitable for Glycol fluid chilling in the 28°F range, but equally as fine for your industrial cooling application too. They feature a high flow and efficient condenser fan, R134a refrigerant, and a substantial internal pre-filter to ensure the exchanger has the cleanest fluid possible pumped through it, which equates to years and years of reliable run time. Units are 460 volt 3 phase power, and were run and tested thoroughly in our shop prior to shipping.
Donaldson Ultrafilter Model UC-0240SP
2010 (1 unit), serial number 49472
2008 (2 units), serial numbers 47597 & 47704
Plate Exchanger
Carel Controls
Low Ambient
Phase Detection
R134a
2008 Operation Manual
2010 Operation Manual
Donaldson Ultracool Brochure
Covers Off
Compressor
Controls
Pump & Heat Exchanger
Tag Unit #47597
Tag Unit #47704
Tag Unit #49472
10 ton | 2002 Advantage / Temptek 10 ton Air Cooled Chiller, 230V, Run, Tested, Guaranteed!
Arrived at KIG in July 2015 for refurbishment and testing was this solid Advantage (Temptek) 10 ton Air Cooled Chiller. 230 volt / 3 phase. With pump and reservoir tank and plate exchanger. Closed loop flow to your process. We ran this for a solid week of testing prior to shipment.
Model: MK-10A 21HF
Serial No. 81491
230V, 3Ph, 60Hz
Full load amps: 54.5
Elect. Dwg #: CA-786
Refrigerant Type: R22
10 ton | 2011 Cold Shot 10 ton Air Cooled "BREWERY" Glycol Chiller, 230V
Arrived late September 2015 to KIG’s inventory was this nice 2011 Cold Shot 10 ton Outdoor Rated Brewery/Winery Chiller. We received this unit on trade for a larger chiller due to the owner's expansion. This is an outdoor rated unit, with low ambient option for year round cooling. It is dual compressor, and Cold Shot’s special LT model (Low Temperature) for breweries/wineries, so this 10 hp chiller will chill your glycol fluid down to the desired 25°F range. This unit does NOT have its own pump or reservoir, so the new owner will need to provide their own insulated tank and pump with sufficient flow to draw from the tank, pump through chiller, out to your process, and return back to tank. Unit is 208/230 volt, 3 phase, and uses the new R410a refrigerant. We ran and tested the unit in our shop prior to shipping.
Model: ACWC-120-E-EST-LT-0-5
Serial No. M052413-1
For Brewery/Winery
R410a refrigerant, Dual Compressor
Customer to provide pump and tank
208/230 volts, MCA 44.5, BRK HACR
10 ton | 2015 PRM 10 ton Air Cooled Chiller, 230V. Less than 100 hrs!
Model Number: ARC-10
230 Volts, 3 phase, 60Hz
BTU: 120,000; Full Load Amps: 55 Amps
Min. Temperature: 5°C / 41°F; Max. Temperature: 25°C / 77°F
Tank Capacity: 34 gal; Pump: 2 HP; Max Pump Pressure: 36 PSI
Inlet/Outlet Pipe (in): 1.5"; Closed Loop, Indoor Use
Copeland scroll compressor; Heavy duty centrifugal pump
Brazed plate heat exchanger; Internal reservoir tank
R-407C refrigerant (green friendly)
Specifications based on 10°C outlet water temperature, 40°C condensing temperature
10 ton | 2007 Budzar ULTRA Low Temp (-15°F) Glycol Process Chiller, 20 HP / 10 ton Nominal
Arrived at KIG in January 2015 was this Ultra Low Temperature 20 HP Process Glycol Chiller (rated at 10 ton for these cold temperatures) with 2 pumps, a 20 hp compressor, extensive insulation, economizer and receiver, and other specialized low temperature upgrades. Temperature fluid range of -15°F to 20°F. Outdoor rated. Was run and tested in our shop prior to sale.
Design Parameters:
- 55% Glycol
- Flow: 33 GPM
- Fluid temp: -4°F inlet / -23°F outlet
- Temp range: -15°F to 20°F
- Set point: -15°F
- Design pressure: 400 PSIG
- Refrigerant: R404A
- 20 hp compressor, rated at "10 ton" with these design conditions
- Process fluid pumps: 1.5 hp circulation and 3 hp process
10 ton | 2010 Temptek 10 ton Air Cooled Chiller, 460 Volt, Run & Tested, R410a
This nice Temptek 2010 10-ton Air Cooled Chiller is 460 volt, uses the latest R410a refrigerant, and has brazed plate exchanger and 10hp Copeland Compressor. This particular unit was configured prior for a customer who was using their own central tank and pump, so this unit does NOT have a pump and tank internal to it. It's nice for someone who has a similar situation. As an option, we do have a poly tank and 1.5 hp pump in the shop which we can quote separately to this auction if you would like, but these would need to be mounted adjacent to the chiller remotely and not within the chiller. Unit was cleaned, leak tested, and run & tested for several days by our licensed HVAC technician prior to shipping.
Model: MA 10
Serial#: 114324
Dual Condenser Fans
10 hp Copeland Scroll Compressor
460/3/60 Volt
FLA 26.6
Refrigerant 410A
10 ton | 2006 Thermal Care 10 ton Accuchiller Air Cooled Chiller 460 Volt
Model: SQ2A1004
Serial No. 10756010306
460/360 Volts
24.4 amps at full load

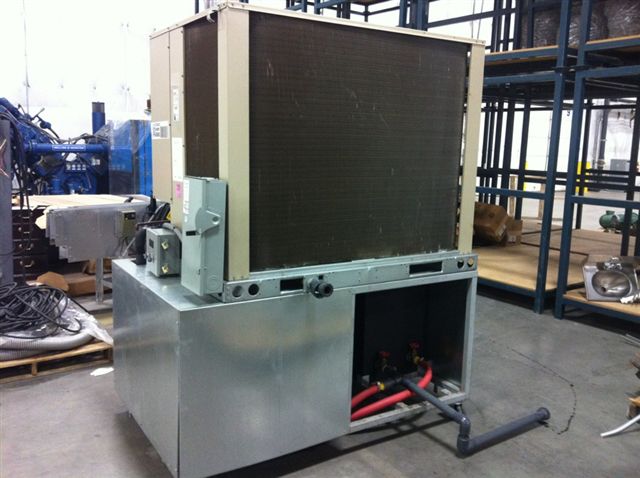

10 ton | 2010 Whaley Engineering 10 Ton Air Cooled Chiller 230 Volt
Model: SA10-3-2PT
Serial No. 210091
Voltage: 208-230/3/60
FLA: 44.3 Amp
Freon: 13 Lbs, R410a
Insulated Reservoir Tank
Nice design with 2 pumps: smaller recirculation pump dedicated to evaporator, second larger pump for process.
Outdoor Use OK.
Side View
Tag
10 ton | 2011 Piovan 10 ton Air Cooled Chiller Model: TR 28S 440V
Model: TR28S
440V / 60Hz / 12 kW
402 kg

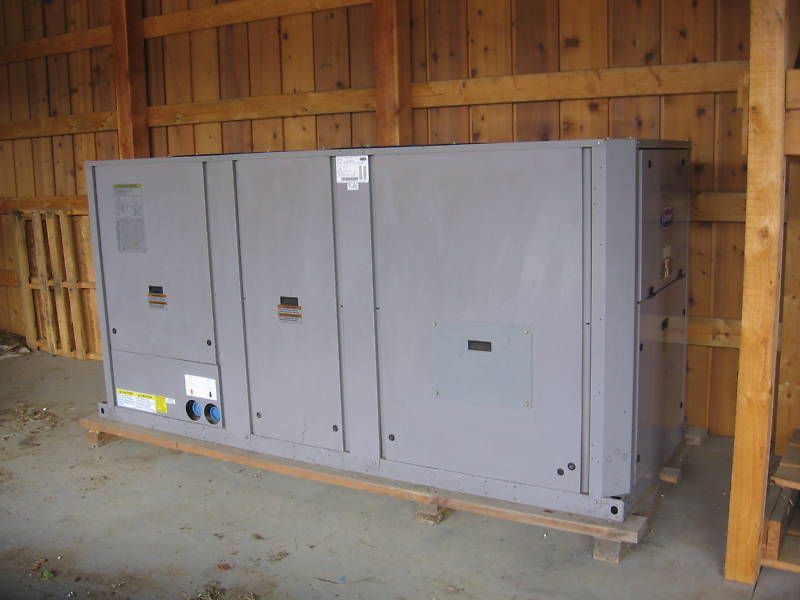

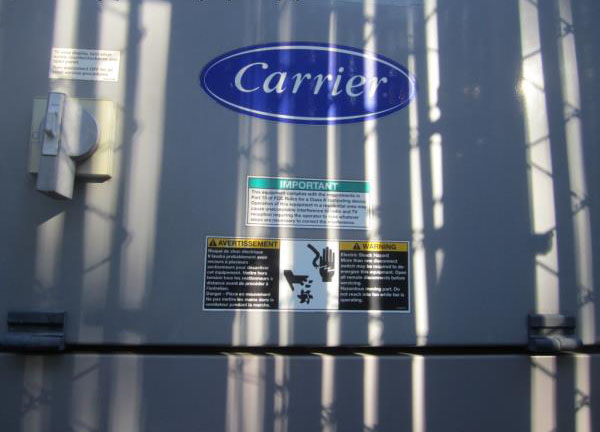

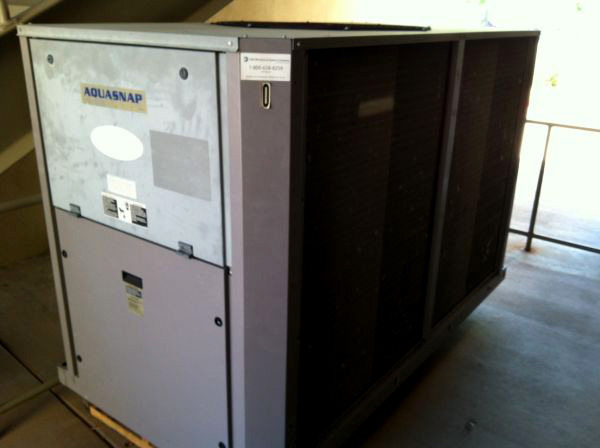

10 ton | 2007 Carrier Aquasnap Air Cooled Chiller 230 Volt
Model: 30RAN010
Serial: 1307Q07009
10 ton | 2003 Budzar 10 ton Air Cooled Chiller
Model Number: AC-10-FCB-22-2-002
Serial Number: 200308-7341
460/3/60
This unit was completely run and tested and checked prior to shipping. It also included a refurbished/rebuilt water pump and a brand-new reservoir tank, tank insulation, and new process piping adjacent to the tank. A video of it running was provided prior to shipping.
10 ton | 2005 AEC Model PSA-10, 10 ton Air Cooled Chiller
10 hp Hermetic Scroll compressor
40 gallon reservoir, 2 hp pump, SS copper-brazed evap., 1500 lbs weight
AEC PSA Chiller Operation Manual
10 ton | 2006-2007 Budzar Air Cooled Chiller 460 Volt w/ pump & tank IMMACULATE!
Model: BWA-AC-10 FCB-22-0-00
Serial Number: 200612-11764 (unit shipped January 2006, put in Service in 2007).
Unit was disconnected from power in late 2009 when plant shut down. Heat Exchanger drained, and stored in heated environment since.
10 hp Copleand Compressor, Stainless Tank, 1.5 hp pump, dual fans. Hefty Shell & Tube Heat Exchanger.
R22 charge; Coils like new; 460 volt.
13 ton | GCI 13 ton Air Cooled Chiller, 460V, RUN & TESTED, ready to work. 10/15 ton
This GCI Icewagon 13 ton Air Cooled Chiller arrived into KIG's shop in May 2014. We have cleaned and painted the unit, and done any repairs (very minor) and checks as needed. It has been run and tested (see video links) and was offered with a money back guarantee. It is 460 Volt, has a Danfoss/Maneurop 13 hp sealed reciprocating compressor which we have had great luck with on chillers in the past. Unit has a plate/frame heat exchanger and a 2hp process pump. Setpoint range on temperature controllers is 43F to 75F. Chiller has hot gas bypass option so as to keep compressor running a bit longer when there is a lower load on the system, which reduces the amounts of starts and stops on the system. It has dual condenser fans, and the coils are in great shape. This unit does not have an on-board reservoir tank, but could easily integrate with your storage/buffer tank as the inlet to the chiller goes right to the suction side of pump.
Model: DE 13 AC
Serial number: DE13AC200101
460 Volt / 3 phase / 60 Hz
Full Load Amps: 30.6
150,000 BTU/hr @ 65F
Max fuse: 50 amp
Inlet Side
Inside
Compressor
Process Pump
Control Panel
Control Panel Open
Tag
13 ton | Lot of (3) Donaldson Ultrafilter 13 ton Air Cooled Chiller w/VFD 460V, NICE!
Nice, high end Air Cooled Chiller, European designed with VFD fan drive, digital controls for temperature, VFD, and freezestat, head pressure control, upgraded Grunfos pump, brazed plate exchanger, coil guards, Maneurop (Danfoss) Semi-hermetic recip 13.3 hp compressor. Large 85 gallon tank! Depending on your process requirements and temperature, you will get about 11 to 14 tons of cooling out of this chiller. See our run off videos below of similar unit already shipped to customer.
Compressor Model is Model MTZ160HW4VE Maneurop Semi Hermetic Recip.13.33 hp per the link below:
http://www.air-con.dk/PDF/Teknisk%20Brochure%20MT-MTZ.pdf
UltraCool 0400 SP Indigo
R407C refrigerant
TSL 23F / TSH 85F
460 Volt 3 phase, max fuse = 50 Amps (CE & UL)
Dual Condenser Fans w/ GE VFD Drive
Digital Controller for freezestat and drive

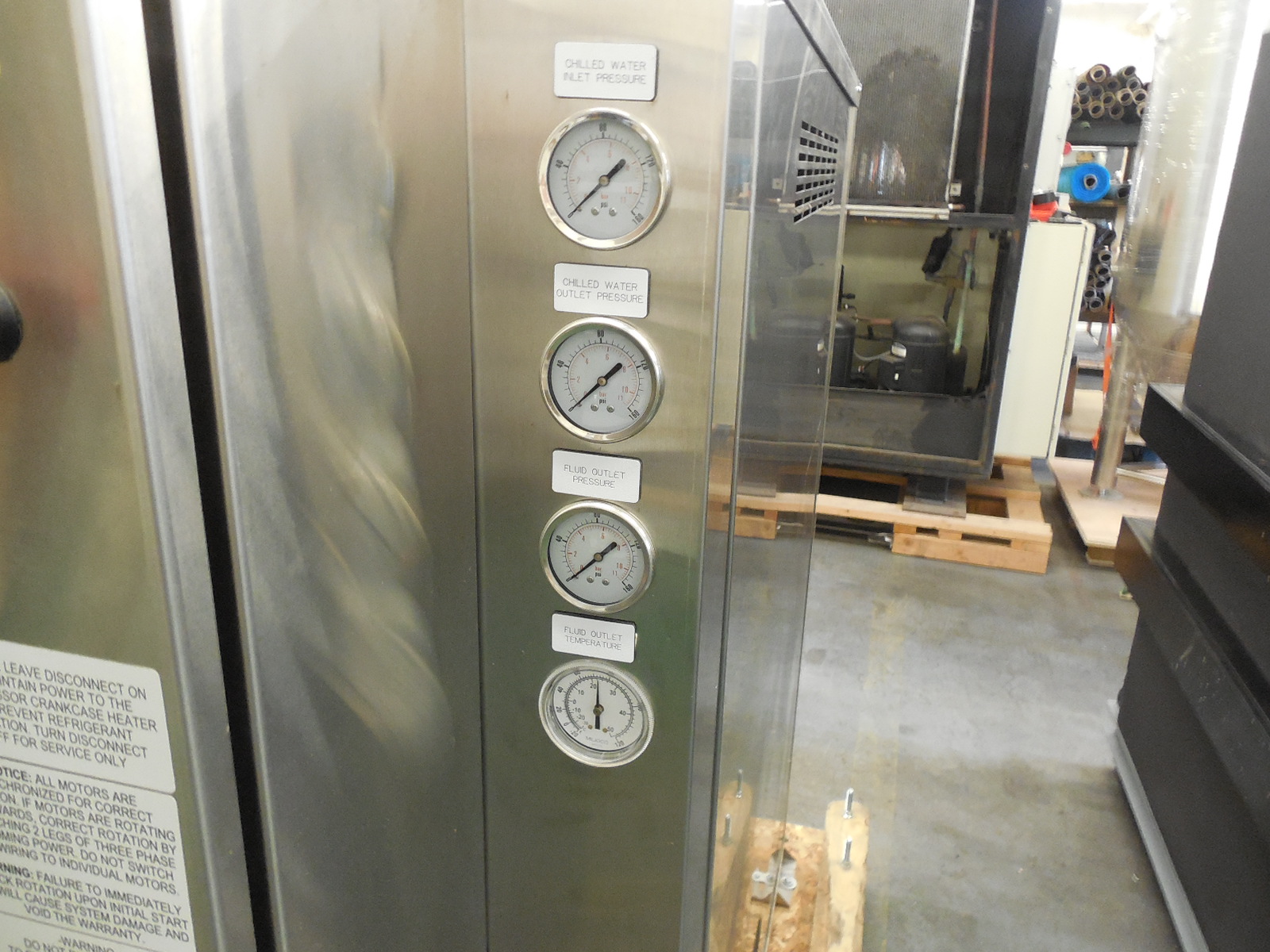

Gauges for hi/low pressure, pump pressure, and delta P for the evaporator
85 Gallons Insulated Reservoir Tank
2.5 Hp Premium Grunfos Pump
Dimensions: 41" wide x 63" long x 72" tall
Weight: 1232 lbs.
Unit will be run, tested, and video made of run-off.
Donaldson Ultracool Midi 0400 Operation Manual
Donaldson Ultracool Brochure
Carel Temperature Controller
FCM Control Module Operation Manual
14 ton | 2016 General Air Products 14 ton Air Cooled Chiller, 460 Volt, Run, Tested & Guaranteed
Arrived at KIG in October 2020 was this perfect General Air Products 14 ton Air Cooled Chiller. Unit was run and tested prior to purchase. It is outdoor rated, and has broad fluid setpoint range and is capable of lower glycol temps.
Model: ACCPS161-4B
Serial No. 2200290944
European Built, nicely engineered
Low temp (~25°F) glycol capable.
13.7 tons nominal capacity
Dual fans
R410a refrigerant
68 gallon tank
Pump 25 to 42 PSI, has 1.5" process connections
20 to 60 GPM
30" wide x 74" long x 58" tall
1450 lbs.
14 ton | 2003 York YCAL 14 ton Air Cooled Chiller 208/220V TESTED, Dual Scrolls Low Ambient
Acquired by KIG in March 2015 was this nice 14 ton York YCAL series Air Cooled Chiller. This unit ran at a military base and was maintained regularly by a mechanical contractor we deal with. We refurbish/test/sell about 100 chillers annually from our Clinton MA facility, and this unit was run and tested here prior to shipment, and sold with a money back guarantee of functionality. The unit has DUAL 7 hp Scroll compressors, and it has the factory "low ambient" option to allow this chiller to be used year round for process cooling in both warm and cold climates (and equally as fine for comfort cooling applications). This is an outdoor weather rated unit, although we see users install indoors too. This unit requires your own process pump/reservoir arrangement.
NOTE: One of the four louvered side panels is missing. The design of the YCAL chiller with its angled internal coils is such that this does not effect performance of the unit, it is strictly cosmetic.
Model: YCAL0014EC17XCAXXXX
Serial No. RDMM005596
Year of mfg: 2003
Unit weight: 2472 lbs
Voltage utilization range: 180-220 volt
Min breaker size: 30 amps
14 ton | 2008 Thermal Care AccuChiller 14 Ton Air Cooled Chiller 460V
Model No. SQ2A1404
Serial No. 11721010801
460VAC, 60Hz, 3-PH; Full load amps: 35.5
30F min temp / 65F max
3 hp Process Pump
Dual Condenser Fans
Insulated Reservoir Tank
R22.
14 hp Compressor
15 ton | 2017 PRM 15 ton 460 volt indoor Air Cooled Chiller
Arrived in November 2020 was this nice PRM 15 ton air cooled industrial chiller. These are good basic INDOOR industrial closed loop chillers for process applications in the 42°F to 77°F temperature range. Unit was run and tested thoroughly prior to shipping from KIG. 15hp Scroll Compressor.
Model: PRM-HC-15
Serial No. 1709060
Mfg Date: 2017
460 volt 3 phase power
R407C refrigerant
Indoor use only
5°C (42°F) to 25°C (77°F) setpoint range
Stainless tank, centrifugal pump, wheels
15 ton | 2000 AEC Sterlco 15 ton Air Cooled Chiller, 460v, Run, Tested & Guaranteed
Offered by KIG in October 2019 was this nice 2000 AEC/Sterlco 15 ton air cooled chiller. Refurbished and tested at our Clinton, MA shop, where it was cleaned, painted, checked and leak tested, and run for several days and monitored. 460v, 3p, power, has scroll compressor, and 30°F to 65°F fluid temperature range. This is an indoor chiller, yet the exhaust can be ducted outside if you choose (as it was at its prior location). It has an insulated tank and a 2 hp process pump. This unit is made by AEC/Sterlco/Sterling. We have provided dozens and dozens of these units over the years and they are well-built true workhorses. Run-off video posted online.
Model: SMCA-15
Serial No. 30D0384
Mfg date: 2000
15 hp scroll compressor
2 hp process pump
Insulated tank
Standard fluid setpoint range: 30°F to 65°F
460 volt 3 phase power
FLA: 37.1 amps
15 ton | Thermal Care 15 ton Air Cooled Chiller 460V w/ pump & tank, blower, REFURBISHED
This was a nice 15 ton Thermal Care portable Air Cooled Chiller that sold recently. This 460 volt unit was stripped down, cleaned, completely repainted, new controller screen added, and was run and tested for a solid week before shipping. Has process pump and internal tank. This is an indoor unit, BUT has blower option for added CFM so it CAN BE DUCTED TO THE OUTSIDE. Super for manufacturing or other cooling applications. Typical setpoint is 30°F to 65°F. Sold with money back guarantee.
NOTE: Photos are from similar Thermal Care units which we have refurbished over the years.
Alternate View
Control Panel
Compressor
15 ton | 2004 Drake PACT180 15 ton Outdoor Rated Air Cooled Chiller Dual Circuit 460V TESTED!
Arrived at KIG in August 2016 was this nice 15 ton Drake Air Cooled Chiller. This 460 volt unit has DUAL compressor, and also a 2 pump system with evaporator pump and process pump. Unit has an oversized 135 gallon tank. It is OUTDOOR rated and has low ambient option too, so it can run year round even in colder climates. Ideal fluid temperature for this industrial unit is 45°F to 65°F approximately. Insulated brazed plate exchanger. Unit was run and tested at KIG and sold with a money back guarantee.
Model: PACT180D2-T4-Z
Serial No. DO4D0192
Year Built: 2004
460 volt 3 phase power
Min amps 60 / Max breaker 70
Dual pump system: 1.5 hp evaporator re circulation pump, and 2 hp process pump
Outdoor Rated
Hot gas bypass option
Dual Compressor Circuit (2 x 7.5 hp Copeland Scroll Compressors)
Flooded Condenser Low Ambient - Run year round in colder climates if needed
Big oversized insulated tank - 135 gallons
General Operation Manual
Controller Manual
Layout for current equivalent model
Side (Open)
Compressor
Control Panel
Controls

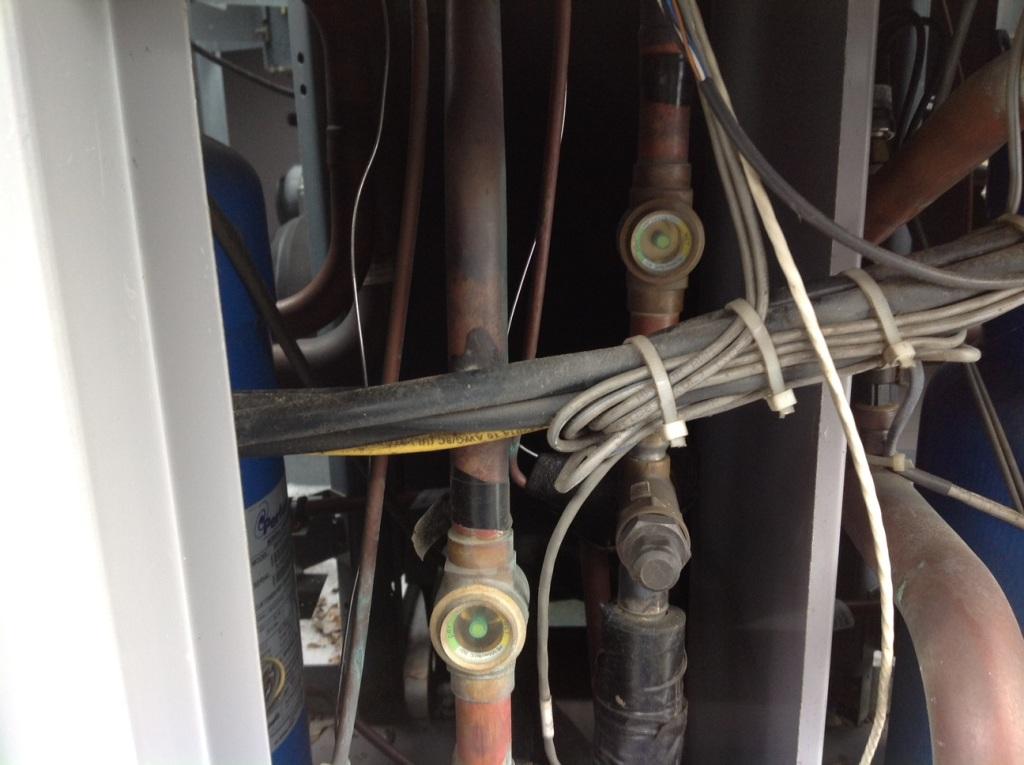

Site Glass
Tag
15 ton | 2001 Thermal Care 15 ton (15hp) Air Cooled Chiller, 460V, Tankless Style, Very Clean, RUN & TESTED
Arrived at KIG in March 2016 was this excellent condition 2001 Thermal Care 15 ton Air Cooled Chiller. This 460 volt unit is in above average condition, with coils in great shape, a 15 hp Trane 3D Scroll Compressor, and a brazed plate heat exchanger. This unit does not have a pump or tank, so this is ideal if you have your own central tank arrangement, and you use your own/existing pump to pump into the chiller and return the chilled fluid back to your holding tank, or out to your process then back to your tank. Flow needed is about 30 to 40 GPM. The model number of this chiller is their "10" series, we were told by TC because it is set up to go to lower temps - specifically it has a setpoint range of 10°F to 65°F. You don't have to use it for low temp, but this unit can (you must use appropriate % glycol mix). Shipped with a full charge of R22. Run and tested thoroughly at our location prior to shipping, and offered with money back guarantee. This is an indoor chiller. Assume you must maintain an ambient environment of 55°F to 95°F in your facility.
Model: LQ2A1004
Serial No. 72600010104
460 volt, 3 phase
31.9 full load amps
15 hp Trane 3D Scroll Compressor
R22 refrigerant
10°F to 65°F fluid temperature range (ID tag states different, but we powered unit up to check this)
Alternate View
Rear View
Control Panel
Controls
Compressor
Inside View 1
Inside View 2
Tag

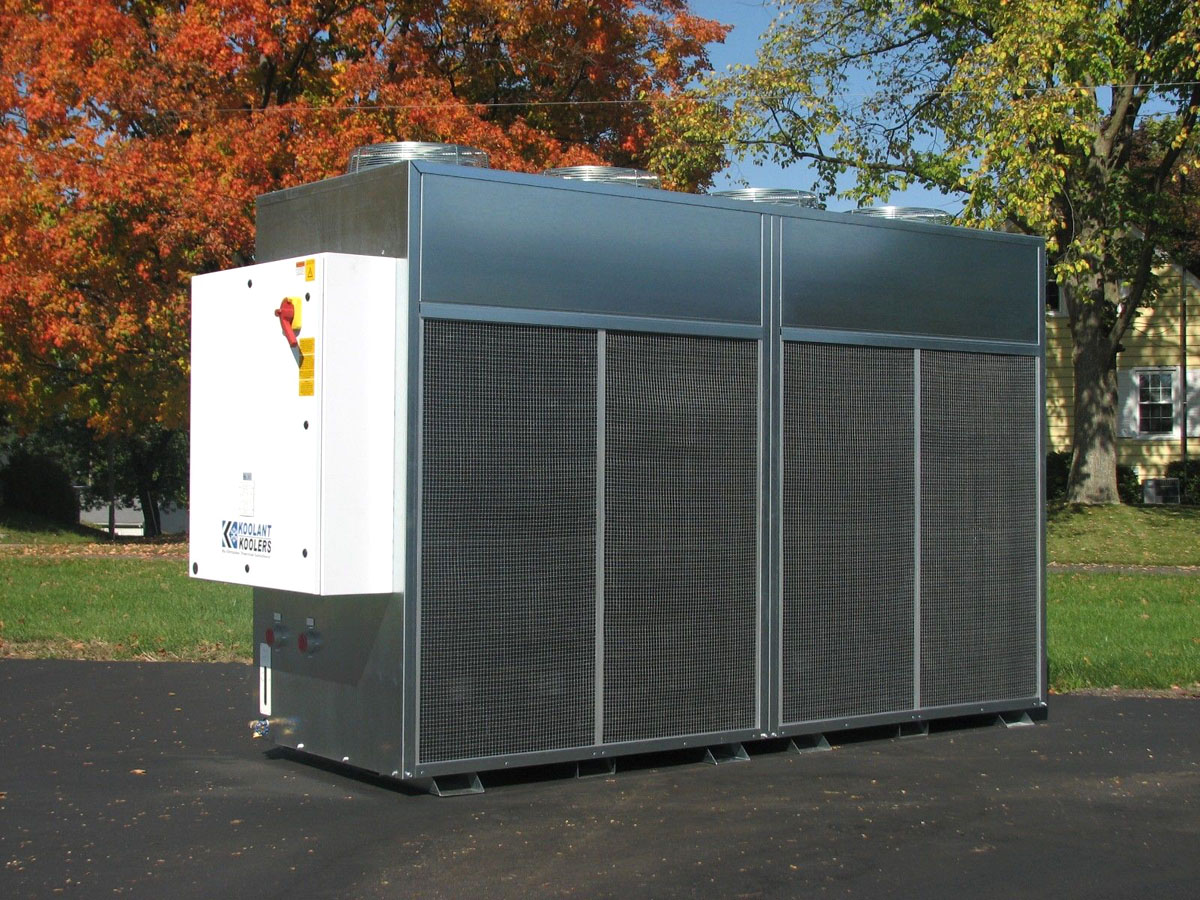

15 ton | Koolant Koolers 15 ton Air Cooled Chiller, 460V, Refurbished
Arrived first week of August 2015 to KIG was a 15 ton Koolant Koolers Air Cooled Chiller. Unit is 460 Volt, has pump and reservoir, and was refurbished including a re-paint.
Picture shows several similar Koolant Koolers chillers that were refurbished and sold here at KIG.
Model: HCV 15
Serial No. 11239
15 ton | 2002 Carrier Aquasnap 15 ton Air Cooled Chiller, RUN & TESTED, 460V, Hot Gas Option!
Acquired by KIG in March 2015 was this nice 15 ton Carrier Aquasnap Air Cooled Chiller. This unit ran at a military base and was maintained regularly by a mechanical contractor we deal with. We refurbish/test/ship about 10 to 20 Aquasnap chillers annually from our Clinton MA facility, and this unit was run and tested prior to shipment, and sold with a money back guarantee of functionality. The unit has a single 15 hp scroll compressor, comfort link controls, internal flow switch, and hot gas bypass option for minimum capacity control if your load is not a full 15 ton. This is an outdoor weather rated unit, although we see users install indoors too. This unit requires you have your own process pump/reservoir arrangement. If the unit is to run year round in a cold weather climate, a low ambient option will need to added/quoted.
Model: 30RAN015---601KD
Serial No. 2802F65762
33.6 Min Circuit Amps
Carrier Aquasnap Product Data
Aquasnap Comfort Link Controls Operation Manual
15 ton | 2003 Affinity 15 ton Air Cooled Chiller 460V OUTDOOR rated low ambient, Run & Tested
Arrived at KIG in September 2014 was this 15 ton Air Cooled Chiller made by Affinity. This is an outdoor rated chiller (was actually run inside for a while), and has VFD drives for the fans, for low ambient year round outdoor process cooling capability. It is 460 Volt, and features a 15 hp scroll compressor, brazed plate heat exchanger, oversized refrigerant receiver, and 2 condenser fans, as well as an oversized 5 hp process pump rated at 40 GPM, and a small on-board buffer reservoir. This unit was run and tested at KIG prior to shipping, and a run-off video provided, with money back guarantee of functionality.
Year: 2003
Model: LEA-150E
Serial No. 069472
460 Volt - 3 phase - 45 amps
Outdoor Rated
Includes process pump and small reservoir, 40 GPM at 50 PSI rated.
15 hp Scroll compressor, brazed plate heat exchanger, oversized refrigerant receiver, 2 condenser fans.
Schematic #1
Schematic #2
Schematic #3
VFD Programming #1
VFD Programming #2
15 ton | 2004 Thermal Care AccuChiller 15 Ton Air Cooled Chiller 460V
Arrived at KIG in January 2015.
Unit went through testing and refurbishment.
Model: LQ2A1504
Serial No. 0323001044
460 Volt / 3 Ph / 60 Hz
FLAmps: 54.4
Compressor: 15hp
Process Pump: 10hp
R-22 Refrigerant
Min. Temp: 30°F
Max. Temp: 65°F
15 ton | Sterling Sterlco SMCA 15 Ton Air Cooled Chiller 460V
This unit arrived at KIG's shop first week of July 2014, and went through testing and refurbishment.
Model: SMCA-15
Serial No. 99L0165
460 Volt / 3 Ph / 60 Hz
R-22 refrigerant
FLAmps: 34
Compressor: 15 hp
Min. Temp: 30°F
Max. Temp: 65°F
Video Part 1
Video Part 2
Video Part 3
Front Side
Side Open
Controls
Fan Motor & Coils
Fan Motor Tag
Pump and Tank

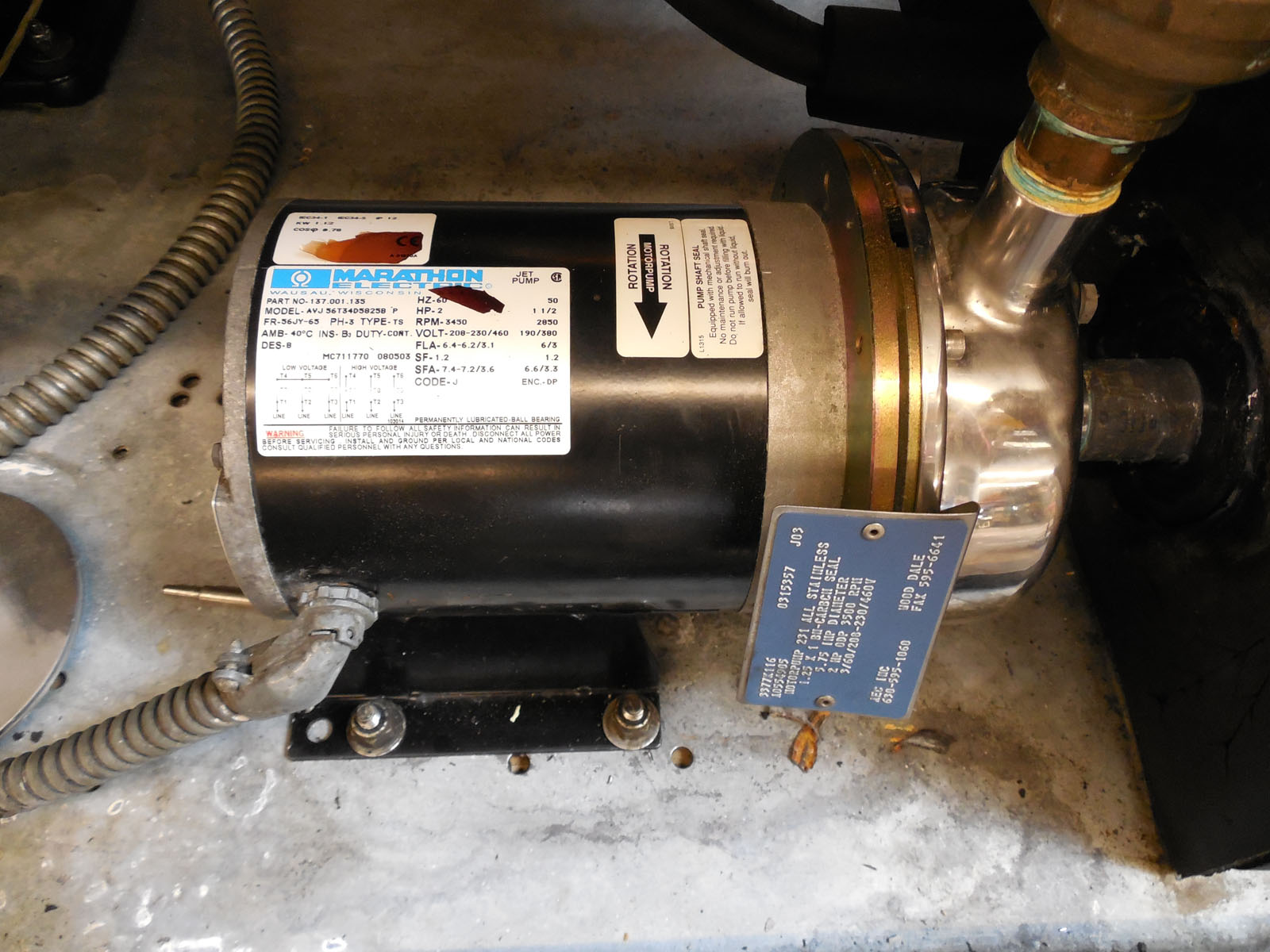

Pump Motor
Rear Side
Rear Side Open
Tag
15 ton | 2008 Advantage 15 ton Chiller w/ Remote Condenser 230V **0 HOURS!!**
This 15 ton Advantage Air Cooled Chiller has never been used and is on original shipping skid(s). Includes remote condenser.
Model: M1-15ARC-21HF
Serial No. 107983
230 Volt / 3 Ph / 60 Hz
R-22 refrigerant
FLA - 75
15 ton | Lot of (2) 2006 Advantage 15 ton Air Cooled Chiller 460 Volt
Model: M1-15A-41HFX
Serial No. 99749
460 Volt
R-22 refrigerant
FLA - 37.1
Includes tank and pump
Crated and ready to ship!
Unit has been run, tested, and videos made of run-off.
M1 Series Manual
Open Loop / Closed Loop Piping
Side
Rear Open
Tank Open
Submerged Brazed Plate
Meters
Unit 1 Tag
Unit 2 Tag
15 ton | 2011 Thermal Care NQA15 15 Ton Air Cooled Chiller Accuchiller NICE!
This is Thermal Care's "Premium" NQ model with:
- upgraded Panasonic PLC touch screen controller
- 3 hp process pump
- R410A refrigerant
- 50 gallon insulated reservoir tank
- High Efficiency low noise fan w/ integral aluminum condensers
- scroll compressor
- 460 volt 3 phase, MIN circuit Amps: 44.3
NQ Series Manual
NQ Series Specifications
NQ Series Brochure
15 ton | 2002 Koolant Koolers 15 ton Air Cooled Chiller - Running and Tested!
Model HOV 15,000-PR-MB-NF
Serial No. 17370
460 volt / 3 ph / 60 hz - 37.1 amp
R-22 (35 lbs)
3 hp pump
Stainless Reservoir tank oriented below unit
This unit was powered up and checked

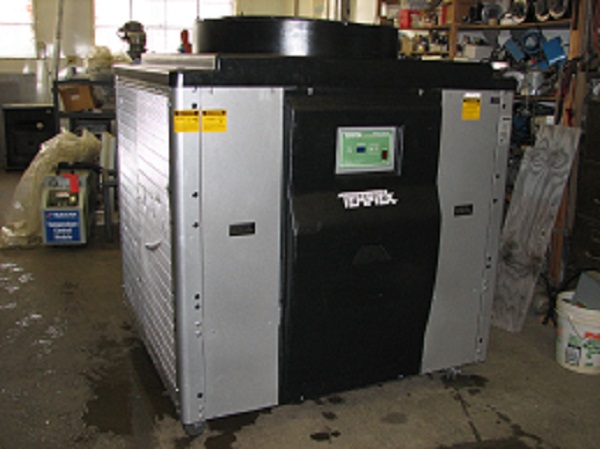

15 ton | 2011 Temptek 15 Ton Air Cooled Chiller 460 Volt - Running and Tested!
Year: 2011
460/3/60; FLA 42.8
Refrigerant Type: R410A
Model: CF-15A-FC-R410A
Serial#: 118795
15 ton | AEC PSA-15 Air Cooled Chiller. Used Once! Dual Pump Package. 460 Volt
Serial Number 00B1221 (mfg date 2000) 460 Volt 60 Hz 3 phase
Full Load Amps 36.4; 15 hp Compresser; Dual fans, 1 hp each; Dual pump package inluding Process pump 2 hp
and recirculation pump 0.75 hp. R22 Refrigeraant (20 Lbs) Min temp 30 f / Max temp 65 f. Glycol OK.
Compressor
Rear
Screen
Tag
Control Panel

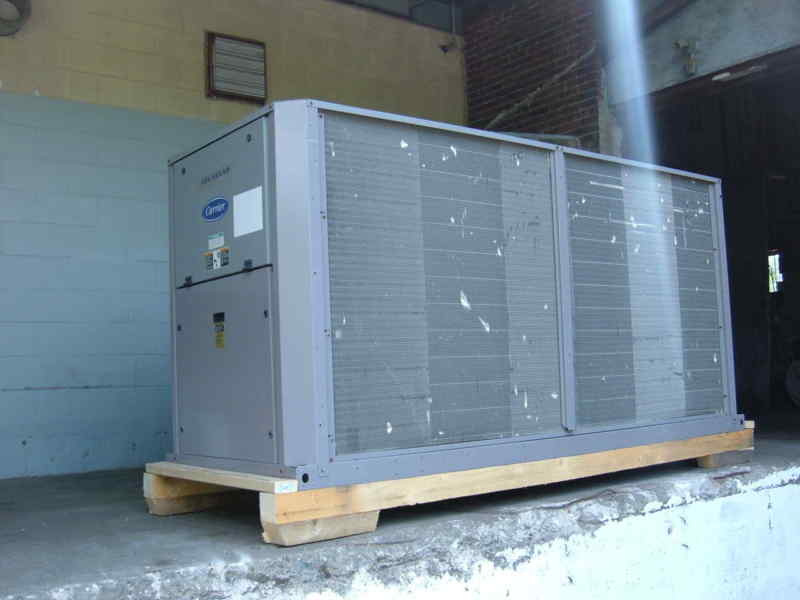

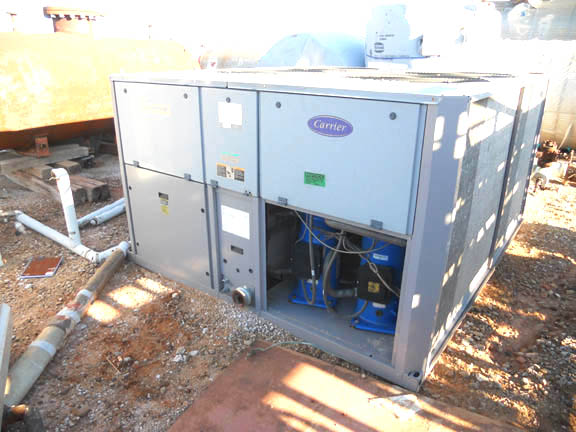

15 ton | 2004 Carrier Aquasnap 15 ton Air Cooled Chiller 460V w/ DUAL pump option!
Model: 30RAN015F--611FC
Serial: 3304F52579
460/3/60

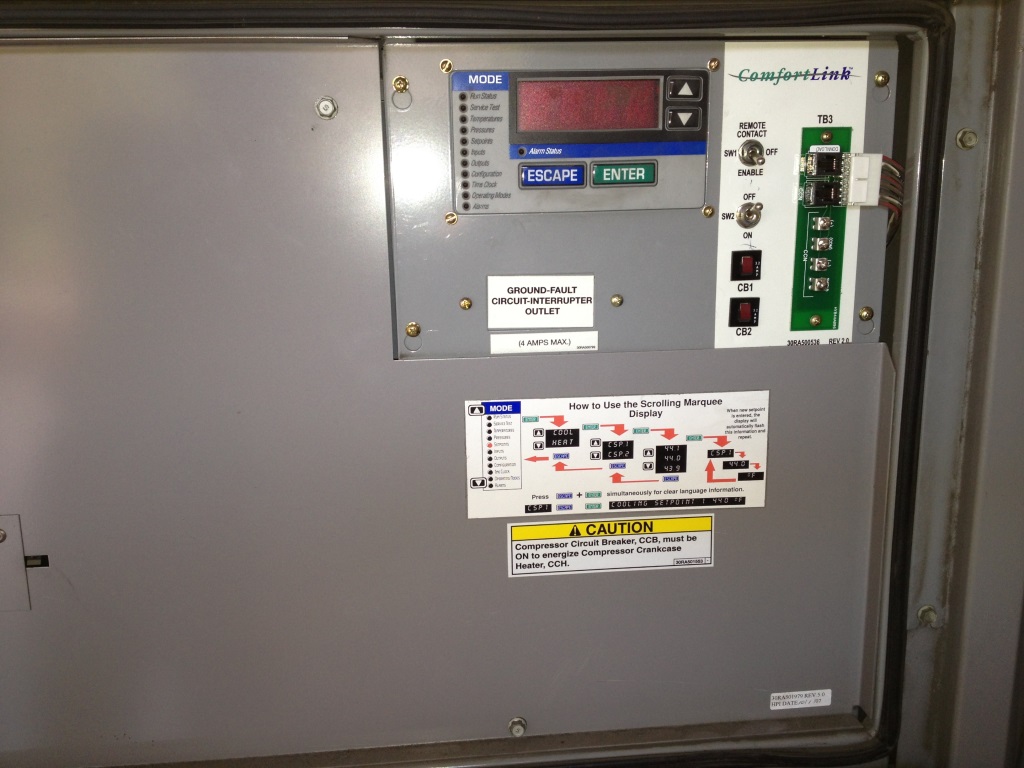

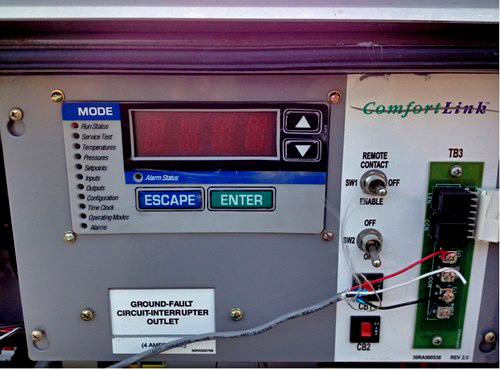

Comfort Link Controls
New Dryers, New sight Glass, New Charge of R22.
Unit was run and tested at KIG facility in Clinton MA by our own chiller technician. Runs great. See our four test/run off videos below.
15 ton | Carrier 15 ton Air Cooled Chiller 30GT-015, 230 Volt, Rebuilt Pump, Run, TESTED
Model: 30GT-015---510 Serial: 2296F10324
The pump is 1 hp Franklin-Electric Model
2 Cooling Fans. One fan has pressure controlled on off, allowing this unit to run outdoors in slightly cooler than normal weather conditions.
Pump/Motor details:
1 hp Franklin Pump Motor 230 volt, 3450 Rpm Pump Model- Goulds: 3642
Impeller Diameter 3 5/8
Size 1 1/4 x 1 1/2-5
15 ton | 2003 Carrier Aquasnap Air Cooled Chiller 460 Volt ONLY 8 HOURS!!!
Model: 30RAN015A-6--CX 460 Volt
Serial number is 2503___ (made in 25th week of 2003). Only has 8 hours total run time on it!

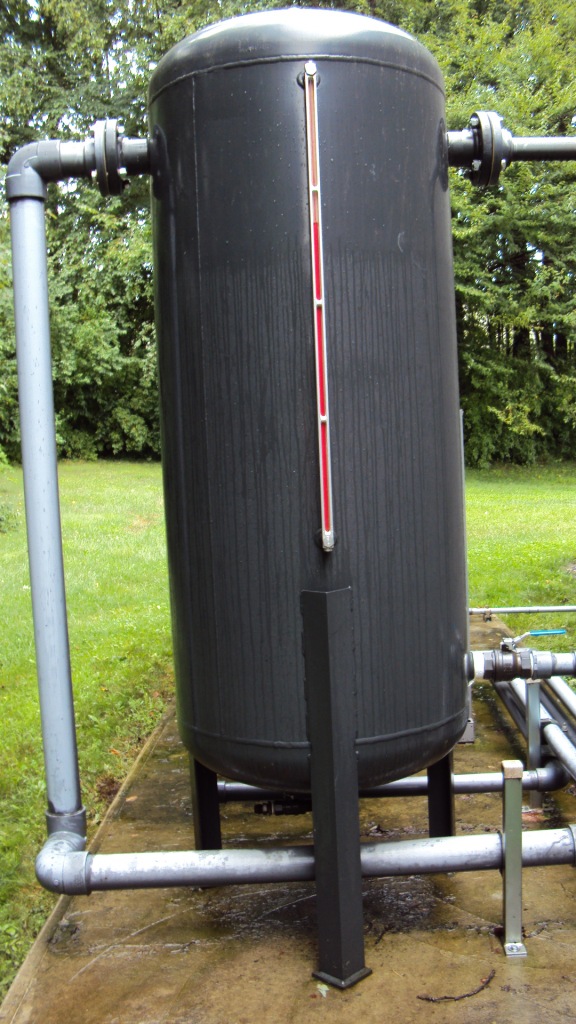

This unit also has the desireable Storage tank package (approx 105 gallons)
reservoir underneath, and the on board process pump integrated with the Carrier Comfort Link Controls.

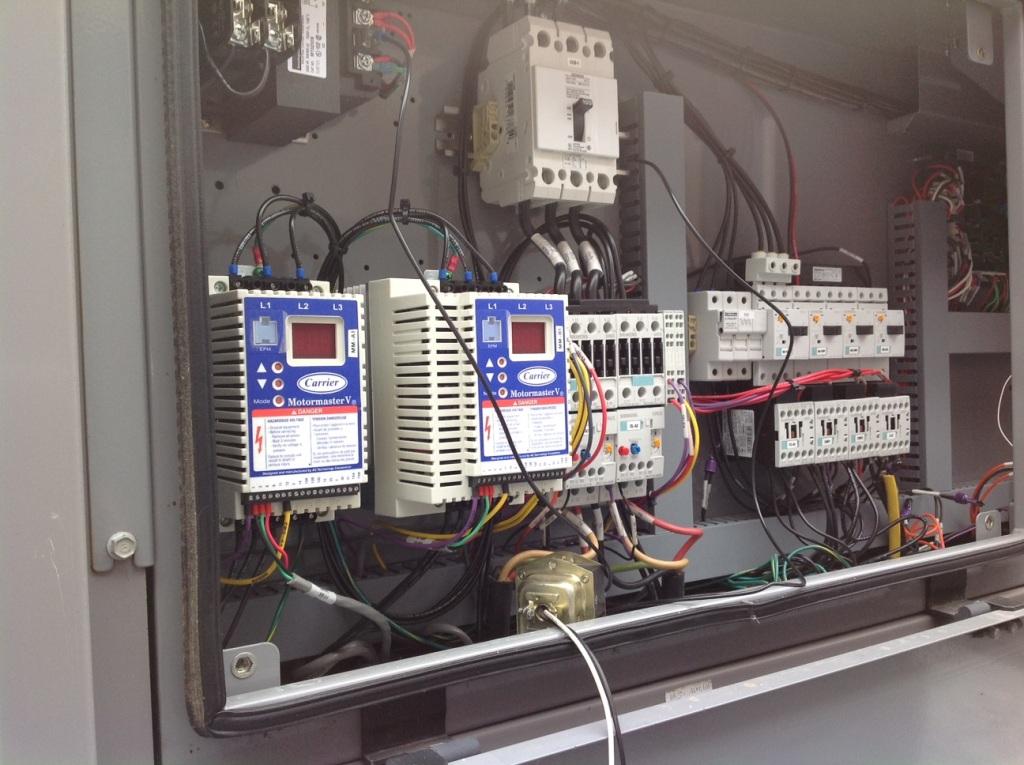

Also has the Motormaster LOW AMBIENT option which is great for year round outdoor use.
18 ton | 2002 Carrier Aquasnap Air Cooled Chiller 208/230V **Hydronic Package w/ pump, Low Ambient Option
Hydronic Package w/ pump, Low Ambient Option ***Chiller does have covers, main photo shows without****
Model: 30RAN018B-501-DT
Serial: 2502F62615; 208/230V / 3 / 60Hz
Compressor A1 has 6443 hours, and Compressor A2 has 6785 hours
Comfort Link Controls
DUAL compressor model for efficient staging.

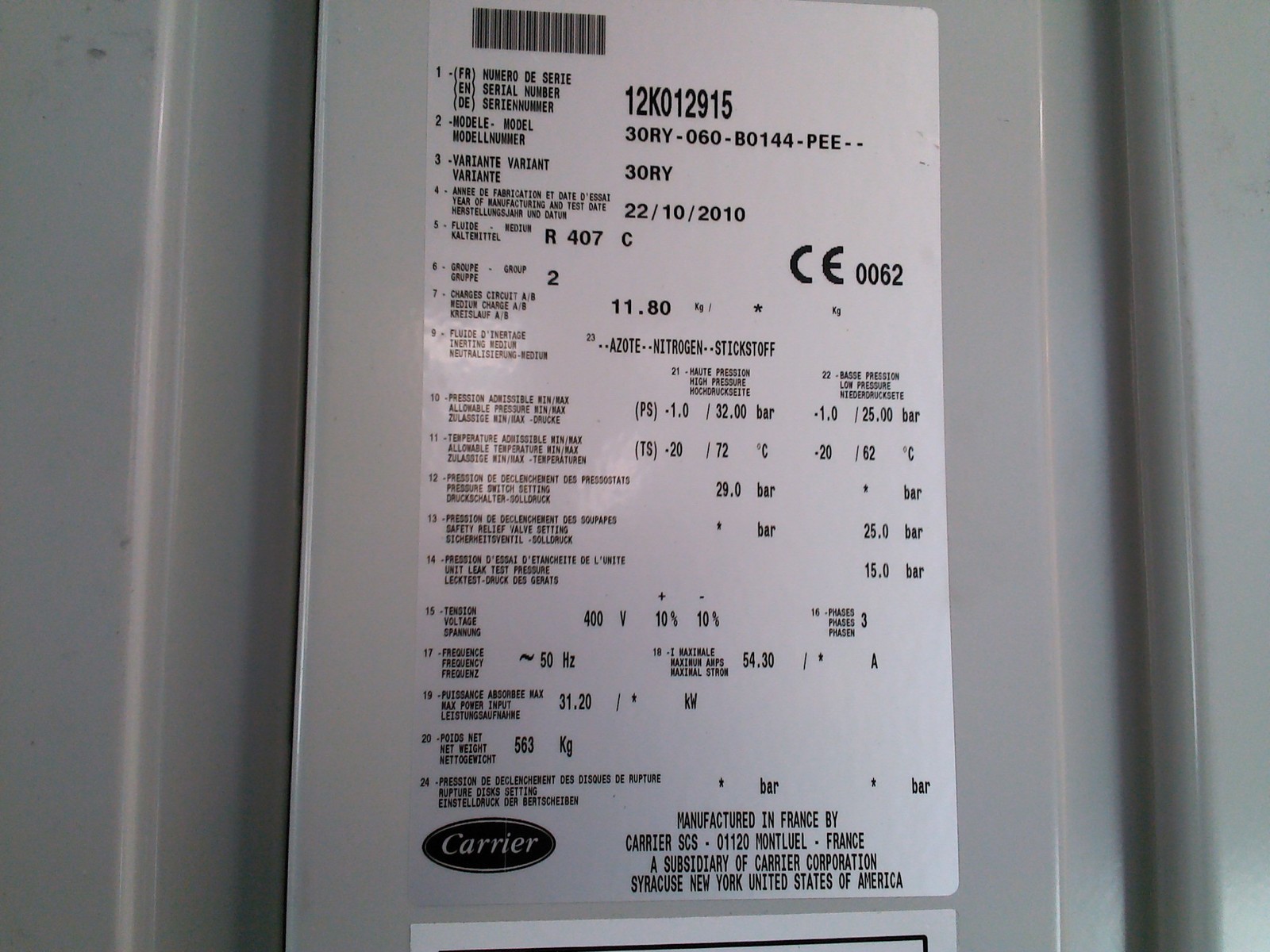

18 ton | 2010 Carrier Aquasnap 18 ton Air Cooled Chiller 400/460V w Pro-Dialog Controls
30RY-060-B0144-PEE
R407C refrigerant
Serial 12K012915
The unit is listed technically at 58Kw, which roughly equates to 18 tons of cooling.
Being originally intended for Europe, the nameplate and voltage call for 400V 50Hz
19 ton | 2016 General Air Products 19 ton Air Cooled Chiller, 460 Volt, Run, Tested & Guaranteed
Arrived at KIG in January 2020 was a perfect General Air Products 19 ton Air Cooled Chiller. Unit has been run and tested. It is outdoor rated, and has broad fluid setpoint range and is capable of lower glycol temps.
Model: ACCPS251-4B-LA-UL
Serial No. 186732
460 volt, 3 phase power
Max amps: 48
R410a refrigerant
Dual Scroll Compressors, single refrigerant circuit
93 gallon insulated reservoir
Evaporator type: coil within reservoir
Dual fans, controlled off pressure based VFD
~3 hp process pump
2" connections
20 ton | 2014 Aqua Products 20 ton Brewery Glycol Air Cooled Chiller, 300 gallon tank, 460v
Arrived at KIG in October 2019 was this nice 2014 "20 ton" Aqua Products Glycol Chiller with remote buffer tank module. We took this unit in trade-in, as our local brewery customer has experienced incredible growth and has installed a new York/Johnson Controls 200 ton unit in its place. This unit ran indoors, but is outdoor rated. It has two Copeland scroll compressors, each pre-packaged in an Emerson condenser module with side air discharge, and situated one over the other. The dual heat exchangers are coil in tube, or coax type, and this is a true dual circuit machine. The R404a refrigerant offers less "de-rating" for low temp applications as compared to R410a. The controls are a super simple Ranco dual stage controller, and simple fan switching for low ambient. Easy to work on. The tank is a separate module, in enclosure and insulated, about 300 gallons. Package comes with 3 hp chiller pump (for the chiller to tank loop), process pump separate. Unit was run, tested, and guaranteed.
Model: DCS-240C-D4B
Serial No. 006011524002
460v, 3 phase
At 25°F, expect about 130,000 to 150,000 BTU's/hr
MCA system 60 amps, max fuse 75 amps
Compressor (qty 2): Model ZB76KCE R404A
R404a refrigerant
3 hp stainless glycol/chiller loop pump
20 ton | 2012 Thermal Care 20 ton Air Cooled Chiller, 460V, Run, Tested & Guaranteed
Offered by KIG in October 2019 was this pristine 2012 Thermal Care NQ series Air Cooled Chiller. Unit was leak tested, adjusted, and cleaned. It is 460 volt 3 phase power, has dual scroll compressors, the newer R410a refrigerant, and 20°F to 80°F fluid/glycol temperature range. This is an indoor chiller, yet the exhaust can be ducted outside if you choose, as it was at its prior location. It has an insulated tank and a 3 hp process pump. This unit is made by Thermal Care and the case was re-branded through IMS (note the IMS sticker on outside of unit). We have provided dozens of these Thermal Care units over the years, and they are well-built true workhorses.
Model: NQA 20
Serial No. I9259 011307
Dual compressors
460 volt 3 phase power
Amps: 55.5 MCA; 51 FLA
R410a refigerant
Minimum temp: 20°F
Maximum temp: 80°F
Internal Reservoir Tank
3 hp Process Pump
Side/Rear View
Heat Exchanger
Compressor
Brazed Plate Exchanger
Tag
20 ton | 2010 20 ton MRI Chiller, dual 10 ton circuits, 460v, outdoor rated, Koolant Koolers
Arrived at KIG in October 2018 was this well-maintained Dimplex Thermal / Koolant Koolers 20 ton dual circuit chiller for MRI applications. Unit is set up as a dual 10 ton in one enclosure for optimum redundancy, but can be used as a high end 20 ton chiller. Has four (4) 5 hp compressors, dual plate exchanger, dual 3hp pumps, and a common 100 gallon stainless tank in bottom. Outdoor rated, 460 volt 3 phase power. Good for general industrial fluid temps in the 45°F to 75°F range (approx).
Model: W02-2-5000-2P-NF-L-M-407C
Serial No. 32155
Dual 10 ton MRI chiller (20 ton total)
Outdoor Rated
Four (4) 5 hp compressors (20 ton total)
(2) separate circuits
(2) plate exchangers
(2) 3 hp process pumps
100 gallon stainless insulated reservoir
R407C refrigerant
460 volt power - 70 amp min ampacity and 80 amp max fuse
Connections: 2" NPTF inlet and outlet (Note: just one common inlet and one common outlet for this "dual" design)
Weight: 3200 lbs dry, about 4000 lbs operating weight
Dimensions: 44" wide x 138" long x 85" tall
SHORT VIDEO of unit running, prior to being disconnected at hospital:
20 ton | 2012 Temptek 20 ton Air Cooled Chiller w/ Pump and Tank, S/N 125675
With pump and tank
460 volt
Serial number 125675
20 ton | 2017 Temptek 20 ton Air Cooled Chiller w/ Pump and Tank, S/N 153826
With pump and tank
460 volt
Serial number 153826
20 ton | 2011 Legacy / Drake 20 Ton "SPLIT" Air Cooled Chiller System, *0 Hours*, Remote Condenser
Arrived at KIG in February 2017 was this never used surplus chiller package consisting of a 2011 20 ton Legacy (virtually identical to Drake) Air Cooled Chiller and Remote Condenser. Dual 10 hp Scroll Compressors, 460 volt power. NEVER USED * 0 Hours *. This arrangement has the chiller controls, pumps (there are two pumps: one for process - 5 hp - and one for evaporator - 3 hp), and reservoir tank indoors (although, this section too is outdoor rated if desired). The Condenser is mounted outdoors. This is ideal for many applications, one being a year round process cooling application where the user wants to stay with water as opposed to glycol as the cooling fluid. Requires field installation of refrigerant lines between chiller and condenser and wiring too, and a technician that knows how to charge these lines correctly (we would consult/advise as needed). Uses the new R407c blended refrigerant (no R22!). Has the COATED COILS upgrade/option for ultimate protection even in coastal applications. Amazing deal for the chiller user that can appreciate this configuration.
In its present form, the condenser does not have the "low ambient" winter package with fan switching/VFD controls to allow to run in less than 40°F ambient conditions. If you are in the cold winter environment, consult with us on cost to add this, or you can have your local contractor install also.
Unit is "economizer" ready. It has switch, piping and plumbing, and solenoid valves to direct flow as needed to a "free cooler" / liquid cooler in winter months if the temperatures support it, so you don't use your refrigeration energy. That module is not included, and can be obtained from various suppliers like KRACK or similar if you are in a cold environment and interested in that feature.
Because this is a split/remote condenser "2 piece" chiller system, this offer was for an untested system as-is.
Refrigerant Piping Diagram
Water Piping Schematic w/ Economizer
Chiller
Condenser
Chiller Open View 1
Chiller Open View 2
Chiller Tag
Condenser Tag
20 ton | 2006 Zarsky Cold Shot 20 ton LOW-TEMP Glycol Air Cooled Chiller, 460V TESTED
Arrived at KIG in April 2016 was this nice Zarsky / Cold Shot 20 ton Air Cooled Chiller. This 2006 unit has two 10 hp scroll compressors, factory low ambient option for year round outdoor cooling even in colder climates, and this is the LOW temp model capable of 20°F fluid temperatures (OK for brewery, winery, etc., but higher temps OK too). Has an onboard 3hp process pump. Unit was run and tested extensively prior to shipment.
Model: ACWC-240-ELT
Serial No. M100605-1
460 volt, 3 phase
48 amps
3.0 hp Process Pump
33# R22 Refrigerant
Brazed Plate Exchanger
20 ton | 2011 Carrier Aquasnap 20 ton Air Cooled Chiller, RAP, R410a, 460V
Arrived at KIG first week of August 2015 was this nice 20 ton Carrier Aquasnap Chiller. This is the new RAP series, utilizing R410a Puron refrigerant. This chiller has Dual Scroll Compressor, the Low Ambient option for year round outdoor use even in colder climates, and it has the E-Coat Coil Upgrade and Hail Guards for the coil. Unit was run and tested extensively in our shop prior to shipment.
Model: 30RAP0206FA06104
Serial No. 0911Q41719
460 Volt, 3 phase
Max Breaker: 60 Amps
R410a Puron refrigerant
Plate Exchanger Type
Product Data Manual
Aquasnap Comfort Link Controls Operation Manual
20 ton | 2013 Trane 20 ton CGAM Series Air Cooled Chiller, 460V, R410a
This was a nice 2013 Trane 20 ton Series CGAM chiller that was shipped from northern California. Chiller was used very little due to wrong size being ordered.
Full Model #: CGAM 020F 2H02 AXD2 A1A1 A1AX XA1A 1AXX XXXX XAXA 3X10 XXXL XX
Serial #: U13035288
460V, 3 Ph, 60 Hz
Uses newer R410a refrigerant
Scroll Compressors
Super Wide Ambient Option 0°F to 125°F
Standard Fluid Cooling Setpoint: 42°F to 65°F
20 ton | 2011 Koolant Koolers 20 Ton Air Cooled Chiller, 460 Volt, NEW Condition!
This immaculate Koolant Koolers Indoor 20 ton Air Cooled Chiller was connected to power but never used. It is in perfect condition. It is 460 volt, has dual scroll compressors and two refrigerant circuits, 86 Gallon Tank, process pump, and uses R407C. Currently at West Coast Location. Perfect for Manufacturing Operation.
2011 Koolant Koolers S Series – 20 ton
86 gallon tank
Dual 10 hp scroll compressors
Indoor unit
R407 C
460 volt
20 ton | 2002 Carrier Aquasnap Air Cooled Chiller 460 Volt
Model: 30RAN022
460/3/60
Comfort Link controls
Compressors
Control Panel
Side
20 ton | 2009 Dry Coolers Omnichill 20 ton Air Cooled Chiller Model: PAC-208RH-2R-2F-3P 460v
Manuf. Date: 12/04/2009
Serial: J-4616
Model: PAC-208RH-2R-2F-3P
460 V / 48.6 Amps
Refrigerant Charge / Type: 34.7 lbs; R134a
Temperature Operating Range: 45-80F *NOTE: 45F confirmed from Dry Coolers technician, ID tag is incorrect
3 hp process pump/60 GPM/40 psi
no internal reservoir tank
20 ton | 2007 McQuay 20 ton AGZ Series Air Cooled Chiller 208/230 Volt
Model # AGZ020ASS12-ER11 - Serial# STNU070800060
Pristine Condition – Ready to work
Dual Copeland Compressors
Plate Frame Heat Exchanger
3 Cooling Fans
Coils in fabulous condition
20 ton | 2006 Budzar Air Cooled Chiller
Capacity (nominal tons): 19.2
No of Compressors: 2
Condenser
No. of fans: 2
HP of each: 34
Pump
HP: 3
GPM/PSI:48/40
20 ton | Refurbished 2001 Carrier Air Cooled chiller with NEW Stainless Evaporator
20 Tons Nominal; 230 volts 3 phase
Model # 38AKS024 Serial # 1101F69095
Operating Controls, safety controls
New Stainless Steel Evaporator; 06D carrier reciprocating compressor;LowAmbient controls; 48 GPM
20 ton | Liebert System-3 DX 20 Ton Upflow AC Unit w remote condenser
Model: VH245A-UAAEI - Serial: 430061-006
These are "Compresserized Systems" with two compressors within main unit.
Includes 3 remote condensers with 4 fans.
Remote Condensers
Model DCDF415LA 460V
Liebert Link to Air Cooled Condenser Model number reference guide:
Nomenclature breakdown (from page 8 of link above):
D=Optional Disconnect Swich / C=Air Cooled Condenser / D=Dual Regfrigerant Circuit / F=Fan Speed Control
415 = Model Size / A=460 volt
Installation Manual
Remote Condensers
22 ton | 2012 York YCAL 22 ton Air Cooled Chiller, 460V, R410a, Pump Package, IMMACULATE
Acquired by KIG in October 2015 was this perfect condition 2012 York 22 ton Air Cooled Chiller. This unit was used sparingly at a nearby process plant that shut down. Unit is 460 Volt and has the onboard factory pump option. It has a brazed plate exchanger, and dual Copeland Compressors. Near new condition. Unit was run & tested on our floor prior to shipping.
Model: YCAL0022EE46XEBSD
Serial No. 3LYM017955
460 volt, 3 phase. 70 amps per tag
Unit Weight: 1,837 lbs.
R410a Refrigerant (will ship with fresh virgin charge)
Coil Guards
HIGH Ambient Option
Dual Copeland Scroll Compressors
22 ton | Lot of (2) 2009 Carrier Aquasnap 22 ton Air Cooled Chiller 230V
Each unit was RUN and TESTED thoroughly in our Massachusetts shop prior to shipping.
Model: 30RAN022D--513CX
Serial Numbers are: 4309Q57976 and 4309Q57986
LOW AMBIENT OPTION – Motormaster VFD option, can run year round in cold climates if needed.
PUMP OPTION – Each unit has onboard ~2.5 hp process pump.
MIN LOAD CONTROL – Hot gas bypass for low load conditions (in addition to being a dual compressor unit).
Dual Scroll Compressors.
208/230 volt 3 phase power.
MCA 102 amps, Max breaker 125 amps.
Carrier Aquasnap Product Data
Aquasnap Comfort Link Controls Operation Manual
Top View
Coils
Compressors
Controls
Heat Exchanger
Unit A Tag
Unit B Tag
22 ton | 2006 Carrier Aquasnap 22 ton Air Cooled Chiller 460 Volt
Arrived at KIG last week of January 2015 was this Nice 2006 Carrier Aquasnap 22 ton Air Cooled Chiller. This Carrier chiller has Low Ambient VFD Motormaster Drive Option for year-round process cooling, minimum load control, low temperature Brine option for setpoints in the 15°F to 40°F range (if desired), and Hydronic Package including Dual Pumps and Reservoir Storage Tanks underneath. Unit was run and tested in our Massachusetts shop and sold with money back guarantee of functionality.
Model: 30RAN022HE-615QK
Serial #: 2006Q05626
460 Volt, 3 phase, 60 Hz
Low Temp Brine Operation Capable (15°F - 40°F)
Low ambient VFD fan drives option
On-board pumps option
Reservoir storage tank option
Comfort Link Controls
R22 refrigerant
Carrier Aquasnap Product Data
Aquasnap Comfort Link Controls Operation Manual
22 ton | 2007 Carrier Aquasnap 22 ton Air Cooled Chiller 460 Volt
Dual Scroll Compressors! One is slightly larger than other, combined 22 hp.
Allows efficient operation and staging for lower capacity applications.
Model: 30RAN022---611KA
Serial Number: 4507Q03936
Manufacture Date: The "45th week" of 2007
460 Volt 3 phase 60 Hz
Max Breaker Size: 60 Amp
Comfort Link Controls
R22 refrigerant
Carrier Aquasnap Product Data
Aquasnap Comfort Link Controls Operation Manual
Side View
Top View
Back View
Compressors
Exchanger
Inside/Open
Piping
Control
Site Glass
Tag
22 ton | 2006 Carrier Aquasnap 460 Volt Air Cooled Chiller, less than 50 hours runtime!
Has low ambient Motormaster option
Has hydronic package with 3hp factory installed pump
Also has 5 hp aux. pump installed on board
Very minimal use, used for lab testing only
Ran glycol only
Factory installed coil guard has remained on unit when not in use
25 ton | 2000 Trane 25 ton Air Cooled Chiller, 460V, Low Ambient
Refurbished, cleaned, run and tested prior to shipping. Has LOW AMBIENT controlled louvers option for year round cooling in colder climates. Offered as a running, cost effective 25 ton alternative to a newer machine.
CGAF Series
Model: CGAFC254ADA10000E00000000T0009
Serial No. C00K30257
460 volt, 3 phase
2 Scroll Compressors
Shell/tube heat exchanger
Installation Operation Maintenance CGAF 20-60
Controls Manual for CGAF Series Chillers 20 to 60 ton
Product Data CGAF Chiller 20 to 60 ton
25 ton | 2008 Carrier Aquasnap 25 ton GLYCOL Chiller, Air Cooled, 460V, Pumps, Tank, NICE
LOW Temperature! Good for Brewery, Manufacturing, etc.
Arrived at KIG in June 2015 was this super nice 2008 Carrier Aquasnap Air Cooled Chiller loaded with options. This 460 volt unit has the dual onboard pumps/hydronic package option, insulated/heated dual storage tanks underneath unit, Low Ambient VFD drives options for year round outdoor use, and the rare LOW TEMP BRINE option which allows this unit to chill fluid in the 20°F range, making it attractive to breweries. Equally fine for comfort cooling or other manufacturing operations. It is outdoor rated, has dual compressor, and minimum load control for efficient operation. Also has factory hail guard. This chiller was run and tested at our Massachusetts facility extensively.
Model: 30RAN025G--611QK
Serial No. 2708Q55204
460 volt, 3 phase
Min amps: 53, max breaker 70
R22 - ships with full charge, ready to run
Dual 1.5 hp onboard pumps
Hydronic package
Low ambient VFD drives option
Minimum load control
Insulated storage/buffer tank under unit
Expansion tank
Brine option Low Temp
Carrier Aquasnap Product Data
Aquasnap Comfort Link Controls Operation Manual
25 ton | 2003 Thermal Care Accuchiller 25 ton Air Cooled Chiller 460V
This unit arrived in early October 2014, and went through refurbishment at KIG.
Model: LQ2B2504
Serial No. 02452010311
Volts: 460/3/60
Full load amps: 64.9
Front View
Rear View
Control Panel
Inside Controls
Compressors
Pump
Heat Exchanger
Tag
25 ton | 2001 Carrier Aquasnap 25 ton Air Cooled Chiller 460 Volt Low Ambient Option
2001 Carrier Aquasnap 25 ton Air Cooled Chiller. It underwent refurbishment at KIG. It has two Scroll Compressors: one is brand new and was installed by KIG. This chiller has the Low Ambient Motormaster Option for year-round cooling capability.
Model: 30RAN025C--601KA
Serial Number: 4501F23167
460 volt / 3 Ph / 60 Hz
Refrigerant: R22
Two Scroll Compressors (one brand new)
Low Ambient Motormaster Option
Comfort Link Controls
1.5 HP on-board process pump
Carrier Aquasnap Product Data
Aquasnap Comfort Link Controls Operation Manual
25 ton | 2005 Carrier Aquasnap 25 ton Air Cooled Chiller – RAN Series – 230 Volt
2005 Carrier Aquasnap 25 ton Air Cooled Chiller. It is 230 volt, has dual scroll compressors and comfort link controls. Unit has low ambient motormaster VFD fan drive(s) for year round process cooling applications, yet equally as suitable for comfort cooling too. Unit was run and tested at KIG prior to shipping, and offered with money back guarantee of functionality.
Model: 3RAN025-511KA
Serial: 2405Q04172
Power: 208/230 Volt, 3 phase
Min circuit amps: 102.4 amps
Max breaker: 125 amps
Good Running Unit
Scroll Compressors
Comfort Link Controls
Carrier Aquasnap Product Data
Aquasnap Comfort Link Controls Operation Manual
Videos show chiller being test-run at 20°F:
Video 1 of 3
Video 2 of 3
Video 3 of 3
25 ton | Lot of (2) 2007 Carrier Aquasnap 25 ton Air Cooled Chiller 460 Volt
Both of these units have the Low Ambient Option and cooler heater for year-round outdoor operation, for your process or comfort cooling application. Both also have the "hydronic" package with dual pumps. One of the units also has the slick storage tank option under the main chiller section.
Model (both): 30RAN025J--615CX
Serial Number: 1907Q03062 and 1507Q07115
460 volt / 3 Ph / 60 Hz
Refrigerant: R22
Scroll Compressors
Comfort Link
25 ton | 2002 Trane 25 Ton Air Cooled Chiller 460V
Model No. CGAFC254AGA100DE000000T0W00
Serial No. C02F05879
460 Volts
60 HZ
3 Phase
Installation Operation Maintenance CGAF 20-60
Controls Manual for CGAF Series Chillers 20 to 60 ton
Product Data CGAF Chiller 20 to 60 ton
25 ton | 2008 Trane 25 ton Air Cooled Chiller 460 Volt
Dual Scroll Compressors
Low Ambient fan control option for outside year-round process cooling, for colder climates
460 Volt power
Installation Operation Maintenance CGAF 20-60
Controls Manual for CGAF Series Chillers 20 to 60 ton
Product Data CGAF Chiller 20 to 60 ton
25 ton | 2003 McQuay Air Cooled Chiller
Air Cooled Chiller 230 volt New Stainless Evaporator installed New Driers
Charged, tested, and ready to go.
25 ton | 2009 Carrier Aquasnap 25 ton Air Cooled Chiller LOW Hours w/ Hydronic Package
Model : 30RAN025D--511CX ; 230 volt
Serial Number 2209Q57505 (mfg. date = 22nd week of 2009).
Unit has desireable Hydronic Package Option, which means there is a process pump, and heated storage tanks below unit. Expansion tank too.
Two Scroll Compressors.
Comfort Link Controls
25 ton | 1998 Trane Intellipak 25 ton Air Cooled Chiller Low Ambient Option
460 volt
Good running unit. Tested & Checked. 5' x 7.5' x 7' tall
30 ton | 2010 Trane 30 Ton Chilled Water AIR HANDLER System, w/ VFD Drive, filter rack
Arrived at KIG in January 2016 was this substantial Trane Chilled Water Air Handler System. This was used in conjunction with a 30 ton Chiller in a climate cooling environment. It features a 15 hp motor and blower, and a VFD drive for it also. There is a filter rack which mounts on top. Could be used in conjunction with your chilled water supply to cool a building, warehouse, cold storage for beverages, etc. We have the complete submittal document from the original contractor that installed it. Actual Mbh rating converts to about 26.6 ton.
NOTE: Red pumps in one photo are not included.
30 ton | 2010 Carrier Aquasnap RAP Series 30 ton Air Cooled Chiller, R410a, 230V, PUMP Package, Low Ambient, NICE!
Arrived at KIG in November 2015 was this perfect condition 2010 Carrier 30 ton RAP Series Air Cooled Chiller. This 230 volt unit has factory hydronic package (2 hp pump is separate, in this case). It has a brazed plate exchanger, and dual Copeland Compressors. One compressor is digital scroll for maximum efficiency and stage for lower load conditions. Has Micro Channel Coils, Coil Guards, and Low Ambient VFD option for year round cooling even in colder climates. Unit was run & tested on our floor prior to shipping.
Full Model number is: 30RAP03055A68F04
30RA = Aquasnap Chiller Series
P = Puron (R410a)
030 = size in tons nominal
5 = 208/230 volt
5 = Standard fANS
A = Current rev level
6 = Hydronic Package Option w/ 2 hp pump
8 = Low Ambient option AND digital Compressor
F = non fused disconnect, cooler heater
0 = std controls
4 = security grilles / coil guards (nice!)
30 ton | 2003 Carrier Aquasnap 30 Ton Air Cooled Chiller 460V, Run/Tested, 2 Scroll Compressors
Arrived at KIG in March 2015 was this nice 30 ton Carrier Aquasnap Air Cooled Chiller. This unit is 460 volt, and has two scroll compressors, a brazed plate heat exchanger, Carrier's quiet fans, and Comfort-Link Controls. This unit is outdoor weather rated, although we have seen users run them indoors also. This chiller was run and tested at our Massachusetts facility, where we ship about 100 chillers per year from. If you plan on running this unit for year round process cooling, AND you are in a cold climate, a low ambient VFD drive option for the condenser fans will be required.
Model: 30RAN030---611KA
Serial No. 2503F38687
2 Scroll Compressors
Brazed plate exchanger
460 volt 3 phase
Min circuit amps: 58
Max breaker: 80
Carrier Aquasnap Product Data
Aquasnap Comfort Link Controls Operation Manual
30 ton | 2007 Trane Intellipak 30 Ton Air Cooled Chiller 200V, NEW Scroll Compressors!!
Arrived at KIG in October 2014 was this 2007 Trane Intellipak 30 ton Air Cooled Chiller. This unit has the low ambient electrically controlled fan louver options for year round process cooling, yet equally as good for a comfort cooling application. If you need 460 volt, there are some very affordable step down transformers on eBay now and we can help you select the right one. This unit was run and tested in our Massachusetts facility prior to being shipped to a customer. This unit received two New Danfoss 15 hp SCROLL compressors with 0 HOURS!, was converted to R407C refrigerant, and got new dryers and new oil. Run and tested prior to shipping, and offered with money back guarantee of functionality.
Model: CGAFC30EALA1000DE0000000000W00
Serial No. C07A00201
200V / 60 Hz / 3 Phase
40-50 Degree without Ice Machine
UL / CSA Approved
Installation Operation Maintenance CGAF 20-60
Controls Manual for CGAF Series Chillers 20 to 60 ton controller
Product Data CGAF Chiller 20 to 60 ton
30 ton | 2011 Carrier Aquasnap 30RAP Series 30 ton Air Cooled Chiller 230V, R410a, NICE!
This is the newest Aquasnap series from Carrier, with improvements making them more efficient, quieter, and green too. Uses the new R410a refrigerant. Unit is 230 volt, and has the DIGITAL SCROLL compressor option which allows for smart and efficient control of the compressor(s) for varying load conditions - down to 10% of load (see the carrier video link below). This outdoor unit is rated for up to 120°F ambient. Unit was run and tested prior to shipping, and offered with money back guarantee of functionality.
Model Number: 30RAP0305DA02100
Serial Number: 2011Q42327
208/230 Volt, 3 phase
R410a Puron Refrigerant
Minimum Circuit: 137 Amps
Maximum Overcurrent Protection: 175 Amps
Novation Microchannel condenser coil
2 in model number designates = Digital Compressor!
1 in model number designates = Cooler Heater
Std 120°F high ambient capable
30 ton | 2007 Trane CGAF 30 Ton Air Cooled Chiller ** 0 Hours! ** 460V Low Ambient Option
This Trane CGAF 30 ton Air Cooled Chiller has NEVER been used and has 0 hours on it. Purchased for a big project in 2007 and that project never materialized, has been in warehouse since. This unit has the low ambient dampers/louvers on top to allow year round operation for process cooling applications, yet it's fine for your comfort cooling needs too.
Model CGAFC304AMA1
Serial Number CO7M12490
460 Volt - 3 phase
Min Circuit Amps: 65
Max Overcurrent Protection: 80
R22 Refrigerant
Dual Scroll Compressors
Installation Operation Maintenance CGAF 20-60
Controls Manual for CGAF Series Chillers 20 to 60 ton controller
Product Data CGAF Chiller 20 to 60 ton
Right Side
Left Side
Controls
Compressor
Heat Exchanger
Coils Inside
Tag
30 ton | 2006 AEC/Sterling 30 Ton Air Cooled Chiller 460V w/ Remote Condenser
This unit underwent a refurbishment, including complete repainting of the chiller. The chiller contains two 15 hp Copeland compressors, a process pump, and recirculation pump.
Model No. SMCR 30
Serial No. 36M0806
460V 60Hz 3 Phase
Comp HP 2 @ 15 HP ea.
Process Pump HP 7.5
Recirc Pump HP 2.0
Refrigerant R-22
30 ton | 2010 Budzar 30 ton Air Cooled Chiller 460V, R407C, Dual Pumps, Tank, NICE, Tested!
Model: AM-30-SP
Serial #: 201003-16349
OUTDOOR Rated!
460 volt three phase
Total FLA is 77.1 amps
Min circuit ampacity 91.2 amps
Weight is approx 3000 lbs.
Made in 2010, this is a highly engineered nice outdoor rated chiller unit for process or comfort cooling and with low ambient capability for year round operation in colder climates (if needed).
Unit has a 5 hop process pump, and 2 hp circulation pump, and a 120 gallon reservoir tank with baffle.
The nominal design parameters are 72 GPM flow, 60F inlet temp and 50F outlet temp.
System uses one 30 hp Scorll compressor, and the newer R407C refrigerant (180 Lbs).
System has hot gas bypass for low load conditions.
Unit was run and tested here at our Massachusetts facility prior to shipping.
Budzar Product Sheet
Although this is currently on Budzar's site, it references older refrigerant and some other differences.
Use for reference only.
30 ton | 2004 Carrier Aquasnap Air Cooled Chiller 230 Volt
Model: 30RAN030B--511FC
Serial: 0304F12413
208/230 / 60 / 3 Phase
Came out of use in April 2012 due to renovations
In very good condition
30 ton | 2002 Carrier Aquasnap 30 Ton Chiller Model 30RAN030-611KA - Low Hours
Model: 30RAN030---611KA; Serial: 4402F87649
A1 Compressor - 7262 hours
A2 Compressor - 5944 hours
Manufactured in 2002
Has variable speed fan drive LOW AMBIENT option ideal for year round operation / process cooling.
30 ton | 2008 Carrier Aquasnap Air Cooled Chiller
208/230Volt, 3 Phase, 60Hz
Supurb Condition! Never Used, Still Crated!
33 ton | 2012 York YCAL 33 ton Air Cooled Chiller 460V R410a NEVER USED 0 hrs All Options
Arrived at KIG in July 2016 were four (4) of these pristine, never-used York YCAL 33 ton Air Cooled Chillers. Units were in original packaging and were never used. R410 refrigerant, high and low ambient (year round cooling in all environments), onboard pump, hot gas bypass, louvers option, compressor insulation, flow switch. Perfect for comfort cooling, manufacturing, injection molding, etc.
Model: YCAL033
460 volt, 3 phase, 90 amp breaker
R410a refrigerant
Brazed Plate Exchanger
High/Low Ambient
Onboard Pump
Heaters for compressors, cooler, and pump
Flow Switch
Low Fan Noise Option
Side Louvers Option
Hot Gas Bypass Option
Compressor Noise/Insulation Blankets Option
Design LWT (Leaving Water Temperature): 44°F
Shipping weight: 2,750 lbs.
35 ton | 2012 Trane CGAM 35 ton Air Cooled Chiller, 208/230 volt, very clean!
Arrived at KIG in August 2018
Model: CGAM 035A
Serial No. U12G30797
Clean well-maintained unit removed from a school that was demoed
208/230 volt 3 phase power; MCA: 170 / max fuse: 225
R410 refrigerant
Has wide/low ambient option, can be used for process cooling, cold climate too if needed
35 ton | 2007 Carrier Aquasnap 35 ton GLYCOL Air Cooled Chiller, 460V pumps, RUN & TESTED
Arrived at KIG in December 2015 was this super nice Carrier Aquasnap 35 ton Air Cooled Chiller. This 2007 unit has two refrigerant circuits, 3 scroll compressors, factory low ambient option for year round outdoor cooling even in colder climates, hot gas bypass for capacity control, low temperature brine option for fluid temps in the 15°F to 40°F if needed (OK for brewery, winery, etc., but higher temps OK too), and hydronic package w/ dual 4.2 hp process pumps onboard. Unit was completely run and tested at our 13,000 square foot facility prior to shipping, and offered with money back guarantee.
Model: 30RAN035K--611QK
Serial No. 3507Q03617
460 volt, 3 phase
MCA 79.5 amps, MOCP 100
Hydronic package including dual 4.2 hp pumps
Brazed Plate Exchanger
"QK" designation indicates the following factory options: 2, 7, 9, 10, 12 - which are:
2 = brine operation from 15°F to 40°F (this unit is OK for standard temps too)
7 = low ambient motormaster control for ambient operation down to -20°F
9 = minimum load control (hot gas bypass option)
10 = cooler heater for low ambient protection
12 = non fused main disconnect
35 ton | 2005 Carrier Aquasnap 35 ton Air Cooled Chiller 460 Volt
Arrived at KIG in January 2015 (and quickly sold!) was this Nice Carrier Aquasnap 35 ton Air Cooled Chiller.
Unit was run and tested at KIG prior to shipment, and a run-off video provided.
Model: 30RAN035JS-615QM
Serial #: 0905Q03754
460 Volt 3 phase 60 Hz
Low ambient VFD fan drives option
On-board pumps option
Reservoir storage tank option
Comfort Link Controls
R22 refrigerant
Carrier Aquasnap Product Data
Aquasnap Comfort Link Controls Operation Manual
35 ton | 2004 Carrier Aquasnap 35 ton Air Cooled Chiller
Model: 30RAN035--E511DT; Serial: 1004F20472
Copper tube/Aluminnum Fin with E-Coat
208/230 V 3 phase/ 60Hz; 83.2 GPM
Comes with Paco Pump (see "pump" picture)
GPM: 70.5 TDH: 38 IMP DIA: 6.24; Comes with 2HP motor
Includes motormaster variable speed drives "Low Ambient" option making this unit.
Ideal for process cooling in lower temperature climates (yet still find for comfort cooling in any climate).
40 ton | 2012 Riedel 40 ton Air Cooled Chiller, Outdoor, Pump & Tank
Arrived at KIG in November 2020 was this very high-end Riedel outdoor packaged chiller. Riedel chillers are made in Germany, but supported by Dimplex Thermal in MI. KIG has provided dozens of high quality late model Riedels over the years, and the quality is top notch. This ~40 ton unit is outdoor rated, and has 3 Danfoss Scroll Compressors, and an insulated stainless tank. The unit has selectable dual Grundfoss Pumps. Originally sold for $50k+.
Model: PC1011 M6L98209
Serial No. 322589
460 volt 3 phase power
Outdoor rated with low and high ambient option
R407C refrigerant
Primary Pump CM25-1 Grundfos 22 m3/h, 13.2 m head (96 GPM - 19 PSI nominal)
Secondary Pump CM10-3 10 m3/h, 40.5 m head (44 GPM - 58 PSI nominal)
Stainless Insulated Tank
Qty of (3) Danfoss Scroll Compressors SZ160T4RC
Riedel published refrigeration capacity is 163K or 45 tons.
For fluid temps in the 40° to 50° range, expect about 40 tons of capacity.
40 ton | Koolant Koolers 40 ton Air Cooled Chiller
Sold in August 2021 is this 40 ton Koolant Koolers Air Cooled Chiller.
Alternate View
Unit Open View
Inside View 1
Inside View 2
Pumps
Controls
Gauges
Rear View
40 ton | 2017 York / Johnson Controls 40 ton Air Cooled Chiller "NEW"
This was a brand new York Chiller which was delivered to our New England customer in 2018, and due to permitting issues were not able to connect or utilize. Unit was in original shrink wrap, 0 HOURS.
Model: York YCAL0043HE46
Has LOW TEMP option for 26°F Glycol Operation (but OK for standard temperature too)
4 Scroll Compressors (2@10hp and 2@10hp)
Brazed Plate Exchanger
Min Cooler Water Flow = 40 gpm
Max Chilled Water Flow = 200 gpm
Ideal Target flow: 120 gpm
Water Connection Sizes = 3"
(460/3/60) 460 volt 3 phase power: 100 AMPS (110 Max fuse)
90" wide x 145" long x 48" tall
2970 lbs weight
R-410A Refrigerant (Fully Charged)
Control Transformer
Both Low/High Ambient Kit
Hot Gas Bypass (1 circuit)
Flow Switch with Extension Kit
Low Sound Fans Louver Side Panels
Neoprene Isolators
As this unit was still in shrinkwrap, the photos are of similar units/stock photos.
40 ton | 2010 Carrier Aquasnap 40 ton RAP Series Air Cooled Chiller, R410a, 460 volt, 2 available!
Arrived in January 2018 to KIG were two Carrier Aquasnap 40 ton Air Cooled Chillers. These units had low hours and were well maintained at a Data Center. They use R410a refrigerant and 460 volt power. Both units were run and tested at KIG's facility prior to shipping. For comfort cooling or manufacturing.
Both units: Model: 30RAP0406FA00F00
Serial numbers: 3410Q40325 and 3410Q40327
Dual circuit, 4 scroll compressors
R410a refrigerant
460 volt 3 phase power
Units have e-coat option on Microchannel coils
40 ton | 2012 Trane CGAM 40 ton Air Cooled Chiller, 230 volt, low temp, low ambient, CLEAN
Arrived at KIG in October 2017 was this amazingly clean 2012 Trane Air Cooled 40 ton CGAM Chiller. Unit is 208/230 volt, 3 phase, has low ambient option for colder climates (if needed), and with its electronic expansion valves this unit can run glycol temps in the 25°F range. Unit was run and tested completely at our 13,000 square foot facility prior to shipping.
Model: CGAM040
Serial No. U12E29967
Super Clean Condition
4 Scroll Compressors
Low Ambient/VFD for 2 of the 4 fans
R410a Refrigerant
Brazed Plate Exchanger
Electronic Expansion Valves and Glycol Capable for temps 25°F range
208/230 volt, 3 phase
Mpacity 198/max fuse: 225
Voltage utilization range: 187-229
Will be run, tested and checked thoroughly here at KIG
Unit is stored indoors
40 ton | 2008 Arcti Chill 40 ton Air Cooled Chiller, REMOTE Condenser, Pump, Tank, 460V, NICE!
Arrived at KIG in September 2016 was this perfect late model 40 ton Air Cooled Chiller. This chiller package is a remote condenser set up. It has been professionally de-commissioned and has silver soldered caps on the both the chiller side and condenser side refrigerant lines. Each of the 4 condenser fans have adjustable pressure-based fan switching to tweak your outdoor year-round cooling needs even in low ambient. KIG has confirmed with Arcti Chill service that this unit can be adjusted to 28°F Glycol fluid temps with some Carel controller setting adjustments. The system uses environmentally friendly R407A refrigerant. The indoor section of the chiller features a robust shell/tube exchanger, dual 20hp Copeland Compressors, an insulated 250 gallon reservoir, and a 5 hp process pump.
Model: PACRPV0400D4
Serial No. A001038608
R407C refrigerant
460 Volt, 78 amps min, max fuse 100, FLA 68.9
(Dual voltage condenser fans are currently wire for 208V)
5 hp process pump
Shell tube exchanger
Carel controls
250 Gallon Insulated Tank
Professionally de-installed
Dimensions
Piping Schematic
Refrigeration Schematic
Side View
Top Section Open
Bottom Section Open
Tanks and Pump
Chiller Controls
Remote Condensers
Condenser Controls
Chiller Tag
Remote Condenser Tag
Condenser Motor Tag
40 ton | 2008 York 40 ton Air Cooled Chiller, 460 Volt, YCAL0041, Scroll Compressors, NICE
Available as of April 2016 was this nice 2008 York YCAL0041 40 ton air cooled chiller. Inspected by KIG when unit was still under power. 460 volt, and has Low Ambient option for year round cooling even in colder climates (if needed).
York Product Guide & Manual
Submittal / Performance Specification
40 ton | 2014 Koolant Koolers 40 Ton Air Cooled Chiller ** NEW Never Used ** 460 Volt, Made in USA
Arrived at KIG in February 2016 was this never used, never installed (still on original shipping skid), new 2014 Koolant Koolers / Dimplex Thermal 40 ton Air Cooled Chiller. Unit is MADE IN USA, and typically goes for about $39K new. This is a high end unit with 4 scroll compressors, 2 refrigerant circuits, and also TWO Separate plate HEAT exchangers and 2 pumps for mission critical cooling applications. The unit has both low and high ambient options and is outdoor rated, so it can run year round in climates from -20°F up to 122°F. Features a 100 gallon insulated Reservoir, remote monitor/control with cable for indoor control, and uses R407C refrigerant. Run and tested completely at our 13,000 square foot facility prior to shipping, and offered with money back guarantee.
Model: W02-2-10000-2P-NF-L-M-407C
460 Volt, 3 Phase
35 GPM Pumps x 2 (each pump is 3 hp)
4 scroll compressors (Sanyo) 10 hp each
Cooling capacity at 50°F fluid temp and 95°F ambient is 470,000 BTU
Weight: 4,900 lbs.
Dimensions: 138" x 44" x 84.5"
Ambient temp range -20°F to 122°F
Fluid temp 44°F to 70°F
R407C refrigerant
Dual Plate Frame Heat Exchanger
100 Gallon Reservoir
Remote monitoring package
Wall mounted remote display
Manual for NEW Koolant Koolers Seismic Rev002 Heat Exchanger
Koolant Koolers Medical Cooling Brochure
Original Data-Pak Testing Results from Manufacturer
Piping Schematic
Electrical Schematic
Packaged Unit
Inside View
Compressors & Coils
Controls
Remote
Tag
40 ton | 2008 Thermal Care CENTRAL Chiller System - 40 ton Air Cooled & 1100 gallon tank!
This is a pristine Central Type Chiller System ideal for your plastics or other manufacturing operation. Consists of 4 primary pieces of 2008 Thermal Care equipment, including two 20 ton NQA series outdoor rated air cooled chillers with touch pad controls, dual scroll compressor, and low ambient option - coupled with an 1100 gallon pump tank system with dual 40 hp process pumps and dual 7.5 hp chiller pumps - and a high end controls system with VFD drives for efficiency and optimum control.
Serial Number of complete cell (2 chillers, tank system, and tank controls) is: 16391011108
460V
R410A refrigerant
20F-80F fluid temp setpoint range
Chiller 1
Chiller 2
Pump System Controls w/ VFD
Chiller Control Screen Layout
Chiller Controls
4 Pumps #1
4 Pumps #2
Chiller ID Tag
Tank System Tag
Pictures of Tank Portion Screen Controller:
#1
#2
#3
#4
#5
40 ton | 2010 Carrier Aquasnap Air Cooled Chiller
Model: 30RAP040-6FA06100
Serial Number: 1910Q39551
40 ton | 2007 Carrier Aquasnap Air Cooled Chiller, 460 Volt, Low Ambient, Tanks & Pumps, 2 available!
Two immaculate Carrier 40 ton Aquasnap Air Cooled Chillers. Units were professionally de-installed, and have glycol in them now. Total hours are about 8,000 and 12,000 respectively. We sold them separately.
Model: 30RAN040K—611CX
Serial numbers: 4907Q___
Date of Mfg: 2007
460 volt three phase. Minimum circuit amps: 85.1. 3 Scroll Compressors.
Machine #1 total run hours: 10,200 Compressor A1: 6629 A2: 9106 B1: 10200
Machine #2 total run hours: 10,300 Compressor A1: 7753 A2: 2802 B1: 2784
Low Ambient Motormaster Variable Frequency Drive option for fan(s). Allows process cooling to continue in lower outside winter temperatures.
Hydronic Package option: Each chiller has two (2) 4.2 hp high capacity process pumps (they stagger/balance run time – and if one goes down, then there is back up).
Expansion tank internal on chiller is included if you choose to run a pressurized loop.
Storage Tank Option: The lower section of chiller is the Carrier Storage tank option. The actual model of this option/assembly is 30RA—900---010. This equates to 305 gallons of onboard storage capacity, comprised of 4 separate tanks running lengthwise underneath the unit. The tanks are heated (if you choose to connect the heat option), which is 230 volt single phase power. Please click on the “Storage Tank Option” icon below to see the Carrier installation instructions, which gives you a better feel of the desirable (and costly when new!) option that these units have.
Units were immaculate, and inspected on site by KIG prior to acquisition.
Carrier Aquasnap Product Data Aquasnap Comfort Link Controls Operation ManualStorage Tank Option
40 ton | Carrier 40 ton Air Cooled Chiller Refurb / Rebuild ** 0 Hours ** 460 Volt
This chiller consists of a never used 2003 Carrier 40 ton Condenser, and we have added NEW brazed plate evaporators/exchangers, NEW Ranco chiller controls, dryers, piping, electrical. This is effectively a brand new 40 ton Chiller with 0 hours ready to work!
Condenser Tag
Control
Coils Rear
Electrical
Side 1
Side 2
Side 3
Side 4
40 ton | 1999 Trane Intellipak 40 ton Air Cooled Chiller 460 Volt. Checked, Charged, READY!
Compressors and charge were checked out prior to shipment.
40 ton | 2009 Trane CGAF-C40 Intellipak Air Cooled Chiller
Model CGAF-C40EAPA1000
Qty Four (4) Trane 3D Scroll Compressor
Stainless Steel Braze Plate Eavporator
200/208 VAC 3 phase
Excellent condition
40 ton | 2008 York 40 ton Air Cooled Chiller, 460V - TESTED! Low Ambient
Model: YCAL0041EC46XDBSDTXAXXRLXXXX45SX1XXXXXXXSXXXXXX1XXXXXn1XXXXX
Serial No. RATM021456
460 Volt 3 phase power. 90 amp min, 100 max breaker.
4 scroll Compressors. Low Ambient Option with VFD for fan(s)
Weight: 3000 lbs
Brazed Plate Heat Exchanger. R22 refrigerant
Crankase heaters (4) and Cooler heater (1) for additional outdoor capability
E = high efficiency. C = R22.
A= Both low / High Ambient from Factory
42 ton | 2008 York 42 ton Air Cooled Chiller, 200 Volt, 3 Phase
Model: YCAL0042
R407C refrigerant
4 scroll compressors
200V 3 phase power (180V to 220V utilization range)
Chiller spent first 5 years of its life stored indoors, not used.
42 ton | 2008 York 42 ton Air Cooled Chiller 230 volt
230 volt
250 Amp
0 hours
Never been outdoors
Refrigerant: R407C
Shell tube heat exchanger
45 ton | 2010 Carrier Aquasnap 45 ton Air Cooled Chiller 460V
30RAP Series. 460 Volt.
Model: 30RAP-045
Scroll Compressors
R410a refrigerant
45 ton | 2010 Carrier Aquasnap 45 ton Air Cooled Chiller RAP Series, 460V, LOW Hours!
Model 30RAP04566A08FB0
Mfg date: 2010
460 volt - 3 phase - 110 amp circuit
R410A Puron Refrigerant / 4 scroll compressors
Brazed Plate Heat Exchanger / Comfort Link Controller
2-1/2" water connections / Has E Coat Coils Upgrade
Low Ambient Option!
Exceptional condition with very little use!
Total run hours of unit is 3596 hours.
Breakdown of compressor run time is:
Compressor A1: 3596
Compressor A2: 636
Compressor B1: 565
Compressor B2: 87
Aquasnap Comfort Link Controls Operation Manual
Specs & Product Guide
Carrier EMM Accessory for 30MP, 30RAP, and 38AP Chillers w/ ComfortLink Controls
45 ton | 2010 Carrier Aquasnap 45 ton Air Cooled Chiller 230 volt
Model No. 30RAP0455DA00100
Serial No. 1110Q39256
Manufacture date: March 2010
208/230 volt, 3 phase
Has new brazed plate exchanger
Refrigerant: R410A
MCA: 229.6 MOCP: 250
Compressors
Controls
Tag
45 ton | 2003 McQuay 45 ton Air Cooled Chiller 460 Volt
Model: AGZ045BS27-ER10
Serial: STNU030700192
4 Copeland Scroll Compressors
460 volt 3 phase power
45 ton | 2004 Carrier Aquasnap 45 ton Air Cooled Chiller 460 volt
Model 30RAN045---611KA
Serial 0404__
Manufacture date: April 2004
4 scroll compressors
Comfort link controls
460 volt, 3 phase, 60Hz
Has low ambient motormaster drives option for capability of process cooling year round
Min Circuit Amps 86
Refrigerant: R22
45 ton | 2001 Carrier 45 ton Air Cooled Chiller 460 Volt, 30GTN Series
Model Number: 30GTN045---620KA
Serial Number: 0201F56038
460 volt / 3 phase / 60 Hz / 101 amps minimum circuit
Two refrigerant circuits
R22 (40 & 46 lbs)
Two compressors, shell & tube barrel, 4 fans
Low Ambient Magnetek variable Speed fan drive(s)
45 ton | 2001 Carrier Air Cooled Chiller
Low hours! Dual Compressor
Compressor 1: 7,500 hours
Compressor 2: 1,300 hours
45 ton | 2005 Carrier 45 ton Aquasnap Air Cooled Chiller, 208/230V
Model: 30RAN045---511KA; Serial: 1605Q03919
Comfort Link Controls; Scroll Compressors w/ staging.
Plate / Frame Evaporator
Good Running unit. No low ambient option but can be added.
50 ton | 2009 McQuay AGZ Series 50 ton Air Cooled Chiller, 230V, R410A, LOW Ambient
Arrived last week of January 2016 to KIG’s facility was this nice 2009 McQuay 50 ton Air Cooled Chiller. Unit is 230 volt, uses the latest R410a refrigerant, has 2 circuits, 4 scroll compressors, brazed plate heat exchanger, and VFD fan drive option for Low Ambient Capability for year round cooling even in colder climates. Was run and tested at our shop prior to shipping.
Model: AGZ050CHHNN-ER10
Serial No. STNU090500054
4 scroll compressors
50 ton nominal
Brazed plate heat exchanger
R410a - will ship with full charge
230 volt, 3 phase power
VFD drive/Low Ambient Option
50 ton | 2013 McQuay 50 ton Air Cooled Chiller, R410a, 460V, Low Ambient
Arrived at KIG in December 2015 was this mint condition 2013 McQuay AGZ Series 50 Ton Air Cooled Chiller. This 460 volt unit has factory low ambient package which consists of VFD drives/head pressure control for year-round cooling in colder climates (if needed). It has a brazed plate exchanger and 4 Copeland Scroll Compressors. Has Coil Guards and coils are in near new condition. Unit was run & tested on our floor prior to shipping. Uses the new R410a refrigerant and was shipped with full charge.
4 compressors (2 tandem scroll compressors)
50 ton nominal
Plate heat exchanger
R410a - will ship with full charge
460 volt, 3 phase power.
Has dual VFD fan drive option, for low ambient year round cooling in colder climates, if needed.
50 ton | 2006 Koolant Koolers 50 ton Air Cooled Chiller **0 HOURS!!** Pump & Tank 460V
Acquired by KIG in March 2015 was this nice 50 ton Koolant Koolers / Dimplex Thermal 50 ton Air Cooled Chiller. It was stored at a California riggers yard, we had it inspected and controls powered up, and it had 0 COMPRESSOR HOURS, and 0.16 PUMP HOURS! So this unit was connected, but never used. We learned that the prior owner had it installed at the same time a cooling tower and pump tank which they discovered achieved all their required cooling. Has complete manual. This unit is 460 Volt, and rated for outdoor use. In addition to being a desirable size, it also has an onboard 15 hp process pump and onboard reservoir tank. It has 8 cooling fans, 4 of them with VFD low ambient controller. Design fluid temperature is in the 50° to 65° range, nominal. It has a brazed plate exchanger and utilizes a nice high end 50 hp Bitzer Compressor.
Model: SW050000-PR-M
480V, 3 phase
Min circuit: 152 Amps
15 hp process pump
Link to current similar model offered by Koolant Koolers/Dimplex
Control Panel
Controls
Coils
Coil Closeup
Heat Exchanger
Pump
Pump Hours
Compressor
Compressor Hours
Tag
50 ton | 2005 Trane 50 ton Air Cooled Chiller, 4 Compressors, Low Ambient, 460V, READY
Acquired by KIG in May 2015 was this nice 2005 Trane Air Cooled Chiller. The unit was in storage in the Southeast USA for a few years, as it was purchased (used) by our client, but their business situation changed so they never used it. We paid a local chiller specialist to inspect megger compressors, confirm operation of the low ambient option, power up controls, and do overall inspection. This chiller has the original 4 scroll compressors in it (that's good, no mis-application problems causing compressor swap-out), and low ambient option for year round operation in colder climates. Brazed Plate Exchanger. 460 volt 3 phase. Coils look good. A couple dings in sheet metal. Needs a bath inside. Dual refrigeration circuits, with 1 circuit having hot gas bypass (4 scrolls and hot gas means chiller will work well for loads lower than 50 ton). Charge in both circuits.
2005 Trane 50 ton CGAF50
Outdoor Rated
460 Volt 3 Phase
4 Scroll Compressors
Hot Gas Bypass Option
40°F – 50°F setpoint range
Low Ambient Option to run year round even in colder climates
Great for Manufacturing – or Comfort Cooling
50 ton | 2006 York YCAL 50 ton Air Cooled Chiller 460V, w / Low Ambient, 4 Scrolls, NICE!
Super nice 2006 York YCAL Series 50 ton Air Cooled Chiller. And it's the ideal voltage of 460 Volt. This unit features 4 Scroll compressors, and Low Ambient VFD fan drive option (actually it has LOW and HIGH ambient option). Unit is here at KIG's yard (yes, we own it) and our licensed HVAC technician will go through the unit prior to shipping. A right of return with refund is offered, guaranteed not DOA. Included if you want them is oversized fittings, Y strainer, piping, shut offs, and original flow switch as seen on the pallet. This unit ran a glycol mix, closed loop, to a secondary remote heat exchanger adjacent to the the unit. Please see photos we took of the inlet and outlet for the brazed plate exchanger inside the York - looks great. Inspections and visits encouraged... we would love to see you. Air Cooled Chillers from 5 to 125 ton are our specialty. We buy, sell, trade, and refurbish about 100 per year.
Model: YCAL0051EC46XDASDTXATXRLXXXX35
Serial No. RDRM014423
460V, 60Hz, 3 Phase
4 Scroll Compressors.
2 Refrigerant Circuits. Uses R22 refrigerant.
Low Ambient VFD fan drive option for year round process cooling (equally suitable for seasonal comfort cooling).
Brazed plate/frame heat exchanger style.
Compressor nominal capacities: Comp.#1: 12, Comp.#2: 12, Comp.#3: 13, Comp.#4: 15
Unit dimensions:
145"L x 91"W x 48"H
Unit weight: 3,500 lbs.
Coils
Fans
Controls
Compressors 1 & 2
Compressors 3 & 4
Heat Exchanger
Exchanger Inlet
Exchanger Outlet
Parts on Pallet
Tag
50 ton | Lot of (2) 2009 Carrier Aquasnap 50 ton Air Cooled Chiller 460 Volt
Model 30RAN050K--611CX
Serial 0309Q57126 or 0309Q57119
Hydronic Package including DUAL 4.2 hp Pumps within unit
460 volt
Low Ambient Motormaster option for colder outdoor climates
Coil Guard(s)
Comfort Link Controls
4 Scroll Compressors
50 ton | 2006 Carrier 50 ton Air Cooled Chiller SPLIT System 230V
Model: 30HL-050-D511--
Serial: 2306Q06418
Package includes Remote Condenser, and Chiller.
50 ton | 2007 Trane 50 Ton Intellipak Air Cooled Chiller 460 Volt
Model: CGAFC504ALA10000E0000000000W09
Serial: C07D03854
Has Low ambient option
4 Scroll Compressors
Nice Clean Unit
50 ton | 2006 Trane 50 ton IntelliPAK Air Cooled Chiller 208 Volt
Model CGAFC50EALA1000D00000000000000
Serial Number C06J09315
208 VAC; Min Circuit Ampacity: 224
Max Overcurrent Protection Device: 250
4 Scroll Compressors
6 Condenser Fan Motors
Evaporator Heat Tape: 120 volt
2 Refrig. Circuits.
49 Lbs R22 per circuit.
New R22 Charge in each circuit May of 2012.
50 ton | York Air Cooled Chiller, Never Used, Great Deal!
Built in Nov. 2008
Shipped in 2009, still in original packaging
230 volt unit
4 Copeland Compressors
Model YCAL0050EB17X, 407C refrigerant
55 ton | 2005 Carrier Aquasnap 55 ton Air Cooled Chiller, 230V, Pump/Tank Package!
Arrived at KIG in January 2016 was this nice 2005 Carrier Aquasnap 55 ton Air Cooled Chiller, 208/230 volt. This unit is in clean condition, and has all the options incuding hydronic package, dual onboard process pumps, 305 gallon heated storage tank option integrated under chiller, minimum load control, and Motormaster VFD drive Low Ambient for year round cooling even in colder climates. Coils are in great shape. 4 Scroll Compressors, 2 separate circuits. Hours on each circuit are approximately 9,500 which is very low. Unit shipped with full refrigrant charge. We set the unit up in our shop, and ran and tested thoroughly.
Model: 30RAN055G--511CX
Serial: 0605Q03564 (built 6th week of 2005)
4 Scroll Compressors
208/230 3 phase power: 234 amps, max breaker 250 amps
Dual 1.5 hp high capacity process/evaporator pumps on board
305 gallon insulated storage tank option (inlcuding optional heaters)
LOW Ambient Motormaster VFD Drive for year round cold climate cooling
Plate exchanger
Flow switch
Minimum load control option
ComfortLink Carrier Controls
60 ton | 2008 York 60 Ton Air Cooled Chiller 460 Volt
Model: YCAL0061EC46XDBSSXX
Year: 2008
460V / 3 Ph / 60 Hz
Refrigerant: R-22
Low Ambient VFD Fan Drive Option
Unit weight: 3,863 lbs
Side
Top (Fans)
Control Panel
Controls (Inside)
Compressor
Compressor Tag
Main Unit Tag
60 ton | 2011 Carrier Aquasnap 60 ton RB Series 460 Volt
Model: 30RBB0606--0---3
Serial Number: 3311Q76337
Refrigerant: Puron R-410a
3 compressors, 4 fans
Comfort Link Controls
60 ton | Carrier Air Cooled Chiller 2003 "SPLIT" 0 Hours! with New 2013 Condenser
Here we have a 2003, 60 ton Carrier HL series chiller which has never been used or connected to power. It still has the original plugs in the fluid lines. This is a split system, meaning the chiller is indoors and the remote condenser is mounted outdoors, with field installed refrigerant lines connecting the two. You will get the 0 hours chiller, and a BRAND NEW and compatible 2013, 60 ton dual circuit condenser.
Model of chiller is: 30HL-060-D-510---1
Chiller serial number: 1703Q02672
208/230 volt
Minimum circuit amps of chiller is 225
Reciprocating Liquid Chiller 30 HL series With ComfortLink Controls
For the new 2013 Condenser, the model is 09AWH064-D-5. This a vertically oriented, horizontal discharge condenser, so the unit sits tall and narrow, and takes up about 26” wide footprint x about 8 ft long. The photo (below) shows it lying on its side.
From chiller product data link below, nomenclature for model number is:
30HL = Condenserless Reciprocating Liquid Chiller
- = R22 refrigerant
060 = nominal tonnage
D = comfortlink microprocessor control with scrolling marquee display
5 = 208/230-3-60
06e Semi-Hermetic Compressor
Chiller portion Carrier Product Data
Carrier Condenser (NEW) Product Data
60 ton | Trane CGAF 60 Ton Air Cooled Chiller 460v, Refurbished, w NEW Evaporator, Charge
460 volt. Min amps 120, max 125
Model CGAFC604ADD10000E00000000T0W00
serial C00K30369
6 fans, 4 compressors
has LOW ambient option for year round outdoor operation
We will be adding two NEW brazed plate evaporators, dryers, oil, virgin R22 charge, and check out and test.
60 ton | 2005 McQuay AGZ Series Air Cooled Chiller 230V, Running, Tested
Model: AGZ060BH29ER11
Serial: STNU050600038
230 volt; 4 compressors, 15 ton nominal each
2 refrigeration circuits, 4 staging modes, 4 condenser fans, 3-inch water connections
Weight: 4600 lbs
Dimensions: 88.5" W x 98.5" D x 101" H
64 ton | 2004 York 64 ton Air Cooled Chiller, YCAL, 208V/220V, Low Ambient Option 60-65
This is a nice 2004 York YCAL series 64 ton Air Cooled Chiller. It is 208/220V from factory. This unit has 6 Scroll compressors, 4 fans, and the factory-installed low ambient option for year round process cooling if you desire; but it's just as suitable for comfort cooling. It has the robust, reliable and cleanable shell/tube style heat exchanger. It weighs about 6,000 lbs.
Full Model Number: YCAL0064EC17XCASDTXLXXRLXXXX44xxxxxxxxxxxBXXXXXXLXXXXXXXX
Serial Number: RDNM008095
Refrigerant: R22
208/220V System
Min Circuit Ampacity: 306
Max Circuit Breaker: 350
Six Scroll Compressors, 4 Fans
Low Ambient Option for Year Round Cooling Capability
Unit Weight: 5866 lbs
65 ton | New Fenji 2011 Air Cooled Chiller - $34,650
Model Number: ARS065-411
Length: 177 Inches, Width: 83 Inches
Height: 87 Inches, Weight: 5710 Pounds
Voltage: 460 V, Frequency: 60 Hz, Phase: Three Phase
66 ton | 2012 York 66 Ton Air Cooled Chiller, YCAL, R410A, 230 Volt
Model Number: YCAL0066
230 Volt
R410A refrigerant
Very little use.
70 ton | 2008 McQuay AGZ Series 70 ton Air Cooled Chiller, 460V, NICE!
Microtech controls and sensors are operational and functioning properly. There is a BacNet IP card installed and operational All compressors operate properly. Compressor crankcase heaters were functioning properly. All contactors function properly and look clean. Refrigerant charge is present in both circuits. 100 PSI low pressure and 132 High pressure with liquid refrigerant present in both circuit liquid lines. All condenser fans operate properly. All sight glasses show no signs of moisture. The controls indicate that there is 2185 operating hours on each circuit with 2575 starts. Condenser coils appear to be in good condition with no evidence of leaks. Plate and frame evaporator has good insulation with no evidence of leaks.
Model: AGZ070CHSNN-ER10
Serial No. STNU080900220
4 Scroll Compressors
460 volt 3 phase power
R410a refrigerant
Low hours: about 2200 hours on each circuit.
We paid to have it inspected while it was still under power (see attached report).
Side View (Coils, Compressors)
Rear View
Left Control Cabinet Open
Right Control Cabinet Open
Tag
70 ton | 2007 Trane 70 ton RTUA Air Cooled Chiller w/ REMOTE condenser, 460V
Arrived at KIG in October 2014 was this nice 2007 Trane 70 ton Air Cooled Chiller. This arrangement features a remote condenser set-up: the main chiller/compressor controls are mounted indoors; the condenser is mounted outdoors. This package includes BOTH pieces. This is a steal for anybody who appreciates and desires the benefits of being able to keep your chiller portion in your facility, and the condenser outdoors. Both pieces are 460 volt. LOW HOURS! (see pictures of Compressors A & B control panel stats, below).
Chiller: Model: RTUA0704XH01R3COVFN Serial No. U07J05504 460V, 3 Ph, 60 Hz # of Compressors: 2 Compressor Nominal Tons: 35/35 Evaporator Water Storage: 39.8 gal. Min Flow: 84 GPM. Max Flow: 252 GPM Refrigerant: HCFC-22 % Min. Load: 15 Unit Weight: 3474 lbs. |
Remote Condenser: Model: RTCA07040H00A300GN Serial No. U07K05503 4 Coils, 2 per Row Fans - Qty: 4/4, 30" dia. Total Airflow: 71750 CFM Nominal RPM: 850 Motor HP: 1.1 Unit Weight: 4262 lbs. |
RTUA and RTWA Series: Product Data Manual
RTUA and RTWA Series: Installation, Operation & Maintenance Manual
Breakdown/Description of Chiller Model Number
Control Panel
Compressor A Stats
Compressor B Stats
Chiller Tag
Condenser Tag
70 ton | 2006 Carrier Aquasnap 70 ton Air Cooled Chiller RB Series, R410a, 460 Volt, LOW Ambient, LOW Hours!
Arrived at KIG third week of October 2014 was this Nice Carrier Aquasnap 70 ton Air Cooled Chiller. Uses R410a Puron refrigerant, it 460 Volt, and has Siemens VFD drives for fans for low ambient option. Scroll Compressors, Comfort Link Controls. Unit has EMM (energy management module) option upgrade also for reduced energy consumption. LOW HOURS > Total run hours 10,400. This is a 3 Scroll compressor arrangement (2 circuits), Comp A1: 4009 hrs, A2: 4962 hrs, and B1: only 3611 hrs.
Model: 30RBA0706--0G-07
Serial: 1906Q81532
Year: 2006
460 Volt
R410A Puron Refrigerant
Scroll Compressors
Comfort LInk Controls
30RB Series Chiller Product Data Manual
30RB Series Chiller Operation & Troubleshooting Manual
Compressors
Coils
Controls
Barrel
Low Ambient VFD Drives
Tag
70 ton | 2009 Carrier Aquasnap 70 ton Air Cooled Chiller RB Series w/ R410a Puron 230V
Model: 30RBA07054-5---3
Serial: 3509Q73341
Year: 2009
Refrigerant: R410a
Novation Microchannel Coils
Optional Coil Guard Panels (you can be sure coils are in great shape).
208/230 volt/3 phase
Min Circuit Amps: 334.7 amps
Max Breaker: 400 amps
Comfort Link Controls
3 Scroll Compressors
30RB Series Chiller Product Data Manual
Novation Microchannel Coils Info
70 ton | 2012 Carrier Aquasnap 70 ton RB Series Air Cooled Chiller 230 Volt
Model: 30RBD0705--H---3
Serial No. 2512Q77668
230 Volt
Puron R410a refrigerant
30RB Series Chiller Product Data Manual
Side View 1
Side View 2
Corner View
Compressors
Compressor Tag
Specs Tag
Tag
70 ton | 2007 Carrier Aquasnap 70 ton Air Cooled Chiller, 230V
Model: 30RBA07054-5- - -3
Serial Number: 5007Q85107
230 volt; 410A / Puron Refrigerant; 3 Scroll Compressors
unit made 50th week of 2007, Installed in 2008
NEW coil installed December 2011 under Carrier Warranty.
Robust Shell & Tube Chiller Barrell
80 ton | 2007 Carrier Aquasnap 80 ton Air Cooled Chiller 460v Low Ambient Low Hrs RUNNING
Arrived at KIG in May 2016 was this 2007 Carrier Aquasnap 80 ton Air Cooled Chiller. From a local medical manufacturer that moved out of state. Inspected by our licensed technician. Low ambient VFD drive for year round cooling even in colder climates. About 7500 hrs total run time, and 3500 hr or less on each of the 4 compressors.
Model: 30RBA08064-5---3
Serial No. 4207Q84207
460 volt, 3 Ph, 60 Hz
R410a refrigerant
4 scroll compressors
Low ambient VFD drive
Shell tube heat exchanger
30RB Series Chiller Product Data Manual
Rear View
Heat Exchanger
Control Panel
Additional Controls
Tag
80 ton | 2009 McQuay 80 ton AGZ Series Air Cooled Chiller, R410a, 208/230V, 4 Scrolls
Arrived at KIG last week of January 2016 was this excellent condition 2009 McQuay AGZ Series 80 Ton Air Cooled Chiller. This 208/230 volt unit has the factory coil guards, 4 scroll compressors, R410a refrigerant, plate exchanger, and latest McQuay controls.
Model: AGZ080CHSNN-ER10
Serial No. STN091000009
4 Compressors (2 tandem scroll compressors)
2 Circuits
80 ton nominal
Plate heat exchanger
R410a - will ship with full charge
208/230 volt, 3 phase power
396 amps, breaker: 450 amps
80 ton | 2001 Advantage 80 ton Packaged Outdoor Air Cooled Chiller, w/ pump & tank, ONLY 8 HOURS!
Arrived at KIG in September 2015 was this outdoor 80 ton Air Cooled Chiller, originally sold to a manufacturing company in 2001 in Illinois, and they never needed to use it after they installed it. Only 8 hours run time per controller screen. This is an amazing deal for a manufacturer who needs an outdoor rated chiller (has low ambient for year round cooling) and has the need and can appreciate the onboard pumping/tank package. Unit was disconnected from power and removed from facility in August 2015. It has dual compressors, a 15 hp process pump, and a 7.5 hp evaporator pump; both adjacent to the storage tank. The 300 lbs of R22 was removed and recovered prior to disconnecting, so the new owner had to re-charge.
Model: 0ACS-80AD 42SF
Serial No. 76507
460 Volt, 3 Phase, 60 Hz. Amps: 224
Temp: 20°- 60°
Max Opr Press: 100
Water Supply Req'd: 20
5 hp Process Pump, and a 7.5 hp Evaporator Pump
R22 refrigerant
Lbs: 305
80 ton | 2012 Carrier Aquasnap RB Series 80 ton Air Cooled Chiller, 460V, Packaged System
This unit had some nice upgrades, including:
- E Coat on the coil fins
- side covers
- extra insulation
- on-board pumps
Model: 30RBD08062QHCL3K
Dual 10 HP pumps, each with its own VFD control
Four 20 HP scroll compressors
80 ton | New 2011 McQuay 80 ton Air Cooled Chiller, 460 volt, 0 hours!
This unit underwent some cosmetic sheet metal repair due to some slight mishandling during shipping. The unit was completely checked out by a licensed HVAC tech prior to shipping.
Model: AGZ0800DHSNN-ER10
Serial No. STNU110500132
410A Refrigerant; 460 volt; optional sound attenuation package
Specs
80 ton | 2006 Carrier Aquasnap 80 ton Air Cooled Chiller 230 Volt
Model: 30RBA0805--087-3; Serial#: 1706Q81465
Voltage: 208 / 230 Phase: 3 Hertz: 60 Refrigerant: R-410a Compressor Type: qty: 4 Scroll
Hours - Compressor 1: 5535 hours Compressor 2: 5190 hours
Static Pressure as measured August 2012: 245 lbs. circuit #1, and 240 lbs circuit #2
85 ton | 2000 McQuay 85 ton AGR Series Air Cooled Chiller **** 0 Hours! ****
Model: AGR085AS27-ER10
Serial No. STNU001000022
460 volt
Well maintained, clean unit. We have included a photo taken pointing inside the chiller barrel from the process piping. If you know about chillers, you see the condition of the copper tubes are new, as they should look with virtually zero production hours.
90 ton | 2011 McQuay 90 ton AGZ Series Air Cooled Chiller, R410a, 208/230V, 4 Scrolls
Arrived at KIG last week of January 2016 was this excellent condition 2011 McQuay AGZ Series 90 Ton Air Cooled Chiller. This 208/230 volt unit has the factory coil guards, 4 scroll compressors, R410a refrigerant, plate exchanger, and latest McQuay controls.
Model: AGZ090DHSNN-ER10
Serial No. STNU110500281
4 Compressors (2 tandem scroll compressors)
2 Circuits
90 ton nominal
Plate heat exchanger
R410a - will ship with full charge
208/230 volt, 3 phase power
426 amps, breaker: 500 amps
90 ton | 2006 Trane RTAA 90 ton Air Cooled Chiller 460V, Low Ambient, SUPER CLEAN, Inspected
This was a mint condition 2006 Trane RTAA 90 ton Air Cooled Chiller. Unit was in amazing condition (check out all photos) and has the LOW AMBIENT option for year round outdoor use. Unit was inspected by 3rd party HVAC chiller technician prior to shipping.
Model: RTAA0904YT01A3D0GMNB
Low Ambient Option
R22 charge in each circuit
Compressors have been ohmed out, oil check done on each.
Insulated Shell / Tube Exchanger
Side View (Coils)
Pump
Heat Exchanger
Controls 1
Controls 2
Tag
90 ton | 2011 Trane CGAM 90 Ton Air Cooled Chiller 460V, R410A, Low Hours, Immaculate!
Arrived at KIG in October 2014 was this immaculate and well maintained Trane CGAM series 90 ton Air Cooled Chiller. This unit is fully charged with the newer R410a refrigerant, it has the wide ambient (VFD fan drives) option for year round cooling, 460 volt, and is specified for below 40°F fluid temp operation if desired, but equally suitable for higher temperatures. Unit has less than 9500 total run hours, and see the low hours per compressor below. Unit also has the protective louvers over the coil fins, and the coils are therefore perfect as can be expected.
Year: 2011
Full Model Number: CGAM 090F 2C02 AXD2 A1A1 B1AX XA1A 1AXX XXXX XA1A 3B1D XXXC XX
Serial Number U11D22379
4 Scroll Compressors. Very Low Hours:
Compressor A1: 6305 hours
Compressor A2: 348 hours
Compressor B1: 1139 hours
Compressor B2: 5770 hours
Brazed Plate Heat Exchanger
Refrigerant: R410a
2 VFD controlled fan motors
Critical option designations above for this chiller are:
#15: "D" = Super Wide Ambient (0-125°F)
#19: "A" = Factory Insulation - All Cold Parts
#21: "B" = Low Temp Process (lower than 42°F)
CGAM Series Installation, Operation & Maintenance Manual
Side View 1
Side View 2
Controls
Control Panel
Heat Exchanger
Tag
90 ton | 2009 Trane 90 ton Air Cooled Chiller 208/230 volt
This is a super nice 2009 Trane CGAM series 90 ton Air Cooled Chiller. Low Voltage 208/230V. This unit features 4 Scroll compressor, and Low Ambient Option (actually it has what's called Super Wide Ambient capable of running when outdoor temperatures are from 0°F to 125°F). Unit uses the newer R410a refrigerant.
Model No. CGAM G90A
Full model number: Model CGAM 090A 2A02 AXD2 A1A1 A1AX XA1A 1AXX XXXX XA1A 3A1D XXXF XX
Serial No. U09J12019
208 Volt, min circuit ampacity: 442
4 scroll compressors, two circuits: 20 and 25 hp per circuit
4 coils, 6 fans
Min flow (GPM): 129. Max flow: 307.
Design fluid temp range: 42°F - 65°F
90 ton | 2007 McQuay 90 ton AGZ Series Air Cooled Chiller 208/230 volt
Low Ambient Option
Good running, well maintained unit
4 Scroll Compressors
Shell/Tube Heat Exchanger
100 ton | 2006 Trane RTAA 100 ton Air Cooled Chiller, 460V, Low Ambient & Low Temp BRINE, LOW Hours!
Arrived at KIG in October 2014 was this nice Trane RTAA 100 chiller. These units are known as workhorses in the industry, and this particular unit has the low ambient VFD fan drive option to operate in outdoor climate (cold or warm) year round. Additionally, this chiller has the factory low fluid temperature "brine" option to handle set point temperatures 0° to 39°F (but equally as fine for higher more common setpoints). Low hours (see below).
Full Model Number: RTAA 1004 XT02 A3D0 GB
Compressor A: 3878 Run Hours / 7655 Starts
Compressor B: 4088 Run Hours / 7072 Starts
nomenclature notes:
"2" = Low temp 0° to 39°F
"G" = Low ambient
2 Compressors
Shell Tube Exchanger
Low Ambient
Low Fluid Temperature
460 volt - 250 Amp Max Breaker
Refrigerant: R22
100 ton | 2005 Carrier Aquasnap Air Cooled Chiller RBA Series
Serial number: 4205Q80464 (made in 42nd week of 2005)
Model: 30RBA1005023
Hours: 28,000 as of December 2011
Voltage: 208/230 volt
(Note: Unit was set up for two separate 208 incoming circuits. An easy change to conventional).
100 ton | 2004 Carrier 30GTN100---631KA 100 ton Air Cooled Chiller Less than 3000 hours!
Model: 30GTN100---631KA; Serial: 2904F45712; 460 Volt
Excellent Condition
Circuit A: 1564 hours
Circuit B: 1110 hours
Dimensions: 14' x 7'-8" x 8ft tall or 9 ft tall
100 ton | 2000 Carrier 100 ton GTN Series Air Cooled Chiller 460 Volt
Model 30GTN100---620KA
Serial Number 3700F31639
R22
106 ton | 2002 Carrier 106 ton Air Cooled Chiller Model GXR 460 V
2002 Carrier 106 ton
Air Cooled Chiller
Model GXR
460 Volt
134a Type Refrigerant
Location: Southeast
110 ton | 2006 Carrier Aquasnap 110 ton Air Cooled Chiller 460V Low Ambient Low Temp, Pump
This nice 2006 Carrier 30RBA110 Aquasnap 110 ton chiller has the factory low ambient option for year round outdoor cooling down to -20F°, Low Temperature "Brine" option (set fluid temp. down to 30F°), the hydronic option with factory installed 7.5 hp process pump, suction insulation, and minimum load control (hot gas). It is 460 volt, and has been in storage for a good part of its life. Currently stored in Florida location and we encourage an inspection prior to purchase. Uses Puron R410a.
Model: 30RBA1106-2BG7-3
460 Volt, 3 phase
5 Scroll Compressors
Comfort Link Controls
125 ton | 2007 Trane RTAA 125 Ton Air Cooled Chiller, 480 Volt, Helical Rotary Screw x 2
Arrived at KIG in March 2016 was this nice Trane RTAA 125 Air Cooled Chiller with Dual Rotary Screw Compressors and R22 refrigerant. These are workhorses in the industry if you are familiar with chillers.
2007 Trane RTAA125
125 tons nominal
R22 refrigerant
Helical Rotary Screw Compressors x 2
480 volt, 3 phase
Dual circuits
Dimensions: 18'6"L x 7'5"W x 7'4"H
Approx shipping weight: 8,500 lbs
125 ton | Lot of Four (4)!! 2006 Trane RTAA 125 ton Air Cooled Chillers 460 Volt
Arrived in March 2014 to KIG were four (4) immaculate Trane RTAA 125 ton chillers. Removed from a local Data Center where it was used relatively minimal, and the Data Center has been shut down. Units are in pristine condition, have been expertly maintained, and have VFD low ambient option for year round operation.
Model: RTAA-1254-YR01-A3L0-GBF
Serial Number: U06E07911
460V / 60 Hz / 3 Ph
Volt Util Range: 414-506
Min CKT Ampacity: 253
Evap Heater: 115 VAC
Refrigerant: R22
Control Side
Rear Side
Lower Area View
Compressor
Coils
Tag
Crane Removal
Staged for Shipment
Control Inside
Heat Exchanger Tubes Inside
155 ton | McQuay Air Cooled Chiller
Model: ALS155C
S/N: 5YD0185400
(2) Compressors, 460 volts, 60 Hz, 3 phase.
(12) Condenser fans, 1.0 hp (EA), FLA- 2.0, LRA- 9.9 (EA), 460 Volts, 60 Hz, 3 phase
155 ton | Lot of 2 Mammoth Air Cooled "Evaporative Condenser" Chillers
Serial # 33113-01-01
Model/Design #: RCLK1503-811
Manufactured in 2001; 460 volt
200 ton | Trane 200 ton RTAA Series Air Cooled Chiller 460 Volt
Model: RTAA2004Y M01A3D0BFGHKM1
Serial #: U97D01813 (note: last two digits may differ as there were several identical sister units for this location).
Very clean, well maintained unit.
460 volt; R22; Year 1997
250 ton | 2007 Trane RTAC 250 Ton Air Cooled Chiller 460 Volt, New Controller, Tested
Nice late Model 2007 Trane larger Air Cooled Chiller, 250 ton size, 460 volt. Unit has brand new control pad installed. Unit has been vacuum and leak tested, and new charge put back into unit. R134A refrigerant.
Year: 2007
Model: RTAC 2504
Serial No. U07D02992
460 Volt 3 phase power
Brand New Controller
267 Min CKT Ampacity, 450 amp max fuse.
R134A Refrigerant
Gauges
Tag
Side View
Open View
Tag
Copmpressor
Brazed Plate Exchanger
Tag
Tag
Technical Brochure
Rear View
Tag
Tag
Alternate Picture
Tag
Control Panel
Inside View
Tag
Open View 1
Open View 2
Tag
Compressor
Brazed Plate Exchanger
Rear View
Inside View
Pump Tag
Chiller Tag
Rear View
Inside View
Tag
Front View
Inside View
Heat Exchanger
Tag
Unit in Crate
Tag
Right Side
Left Side
Filter
Rear
Top Open
Sight Glass
Tag
Controls
Piping
Tag
Open Side
Inlet & Outlet Piping
Tag
Inside View 1
Filter
Pump
Tag
Control Panel
Gauges
Tag
Alternate View
Tag
Rear View Closed
Rear View Open
Temperature Display
Tag
Alternate View
Alternate View 1
Alternative View 2
Open for Testing
Control Panel
Controls
Pressure Gauges
Inlet / Outlet
Tag
Condenser Unit
Controls
Compressor
Pump
Sight Glass
Tag
Tag (1 of the 4 units)
Open Side
Control
Control Panel
Hookups
Inside
Side
Tag
Top
Inside
Tag
Pump
Tag
Compressor
Fan
Alternate View
Tank
Controls
Side View
Inside View
Tag
Front
Compressor
Control
Top Fans
Tag
Side/Rear View
Tag
Rear View
Tag
Copeland Compressor
Controls
Tag
Side View 1
Side View 2
Side View 3
Top View
Tag
Unit in Crate
Heat Exchanger
Compressor
Tag
Front Side
Inside
Coil Fins
Compressor
Controls
Tag
Front
Rear
Compressor
Pump
Heat Exchanger
Controls
Tag
Side View
Controls
Tag
Front View
Rear View
Compressors
Tag
Rear Side
Tag
Control Panel
Tag
Side View
Inlet / Outlet
Tag
Alternate Front View
Rear View
Alternate Rear View
Tank End
Open
Controller Screen
Tag
Side
Control
Tag
Tag
Tag
Front
Control Panel
Open
Tag
Compressor
Control Panel
Pump
Compressor
Control
Inside
Inside Bottom
Inside Front
VFD
Controls
Gauges
Alternative View
Side View
Compressors
Controls
Tag
Control Panel
Inside
Tag
Side View
Gauges
Tag
Controls
Compressor
Brazed Plate Exchanger
Tag
Tag
Side
Controls
Compressor
Pump
Pump close-up
Tag
Front View
Controls
Inside View
Tag
Side
Tag
Condenser
Condenser Tag
Side View
Inside View 1
Inside View 2
Control
Tag
Inside
Pump
Compressor
Control Panel
Pumps
Tag
Rebuilt Pump
Tag
Tag
Front
Tag
Compressors
Control Panel
Control Panel Open
Site Glass
Tag
Rear
Compressors
Tank and Pump
Tag
Front View
Rear View (Open)
Side View
Tag
Front View
Graphic View
Components
Tag
Tag
Tag
Tag
Back Side
Controls
Tag
Coils & Compressors
Control Side
Back Side
Tag
Top View
Controls
Pump
Water Inlet
Compressor
Control Panel
Pump/Evaporator
Side
Rear
Tag
Control
Tag
Inside
Compressors
Brazed Plate Evaporator
Specs
Alternate Picture
Compressor
Back Side
Coils
Compressors
Controls
Tag
Alternate Front View
Controls Side
Tag
Tag
Upright Storage Tank
Tag
Tag
Front
Coils Side
Rear View
Tag
Front
Side
Filter Side
Unit 1 Tag
Unit 2 Tag
Corner View
Side View
Control Panel
Control Box
Tag
Tag
Tag
Scroll Compressors
Tag
Sketch/Diagram
Side View
Side-Open
Open View
Inside-Motor
Front
Side
Tag
Coils
Inside 1
Inside 2
Tag
Alternate Picture
Control Panel
Controls
Tag 1
Tag 2
Tag 3
Control Side
Tag
Tag
Tag
Tag
Side
Tag
Control Panel
Stock Photo
Top View
Packaged Units
Tag
Control Panel
Controls
Tag
Tag
Tag
Controls
Compressors
Pump
Tag
Side View
Dual Pumps
Compressors
Tag
York Stock Photo
Alternate View
Tag (one of the 2 units)
Side View
Compressors
Heat Exchanger
Tag
Side View
Controls
Green Site Glasses
Dual Pump
Low Ambient Controls
Rear
Tag
Control Screen
Back
Tag
Alternate View
Side View
Rear View
Tag
View 2
View 3
View 4
Coils
Front
Inside
Tag
Exchanger
Compressors
Tag
Tag 2
Compressors
Controls w/ Low Ambient Drives
Side
Tag
Side
Corner
Tag
Side
Side 2
Tag
Side View
Undercarriage View
Compressors
Tag
Side View
Coils
Compressors
Heat Exchanger
Tag
Tag
Tag
Tag
Control Panel
Compressor
Control
Tag
Tag
Control Panel
Evap
Controller Picture
ComfortLink Control Panel
4 Scroll Compressors
Tag
Side View
Tag
Back
Control Panel
Condenser Unit
Site Glass
Tag
Tag
Rigged
Controller
Controller 2
Side View
Control Cabinet
Tag
Control Panel
Compressors
Tag
Tag
Chiller Barrel
Interior View
Coils
Tag
Alternate View
End View
Tag
Side View
Picture 1
Picture 2
Compressors
Pumps
Tag
Control Panel
Control Panel Open
Inside Chiller Barrel
Interior View
Tag
Control Panel
Tag
Tag
Underside
Controls 1
Controls 2
Tag
Tag
Tag
Compressors
Compressors
Side
Tag
Comfort Link Controls
Compressor and Barrel
Side
Tag
Side View
Side View
Compressors
Control Panel
Tag
Underside
Underside Closeup
Control Pad
Tag
