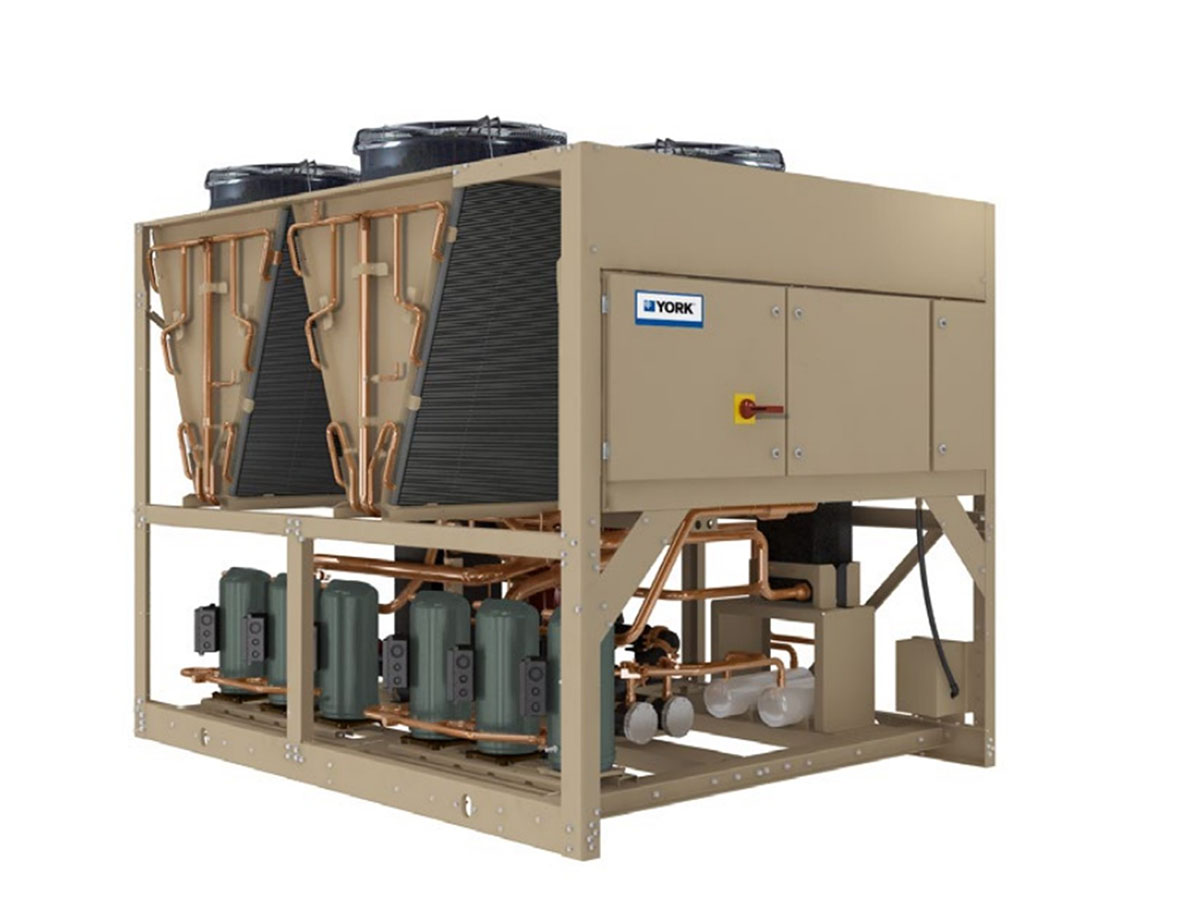

York YLAA Chiller Series IOM Form 150.72-ICOM6 (822)
Install & Maintenance Manual rev August 2022

Install & Maintenance Manual

2 ton | BRAND NEW 2 ton hp Glycol Chiller w/ pump, tank brewery winery beer LOW Temp 28°F!

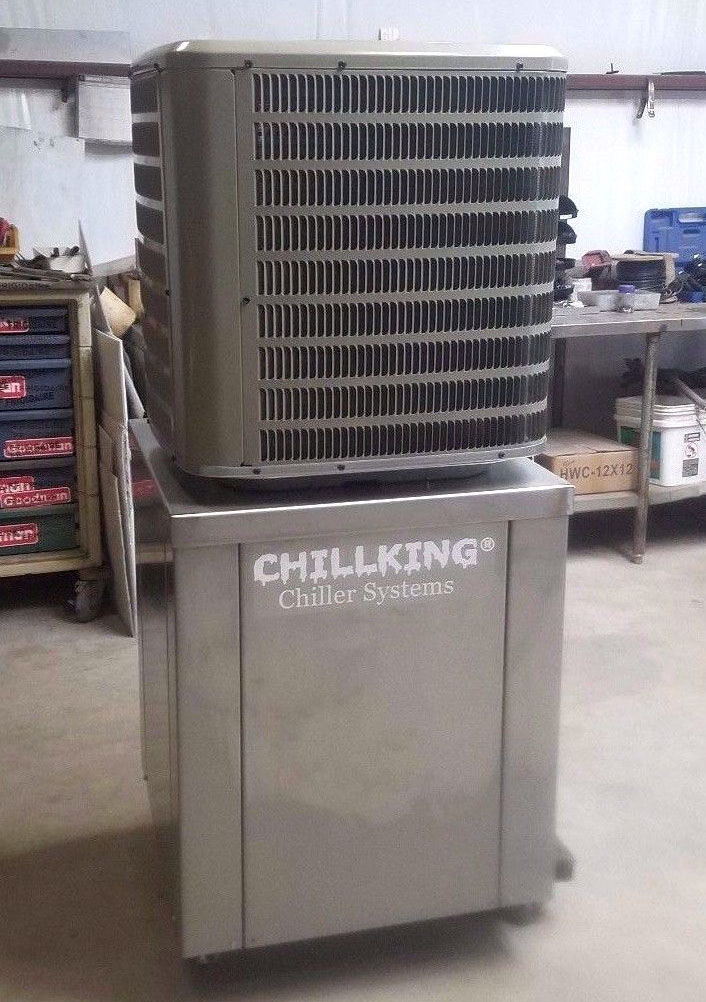

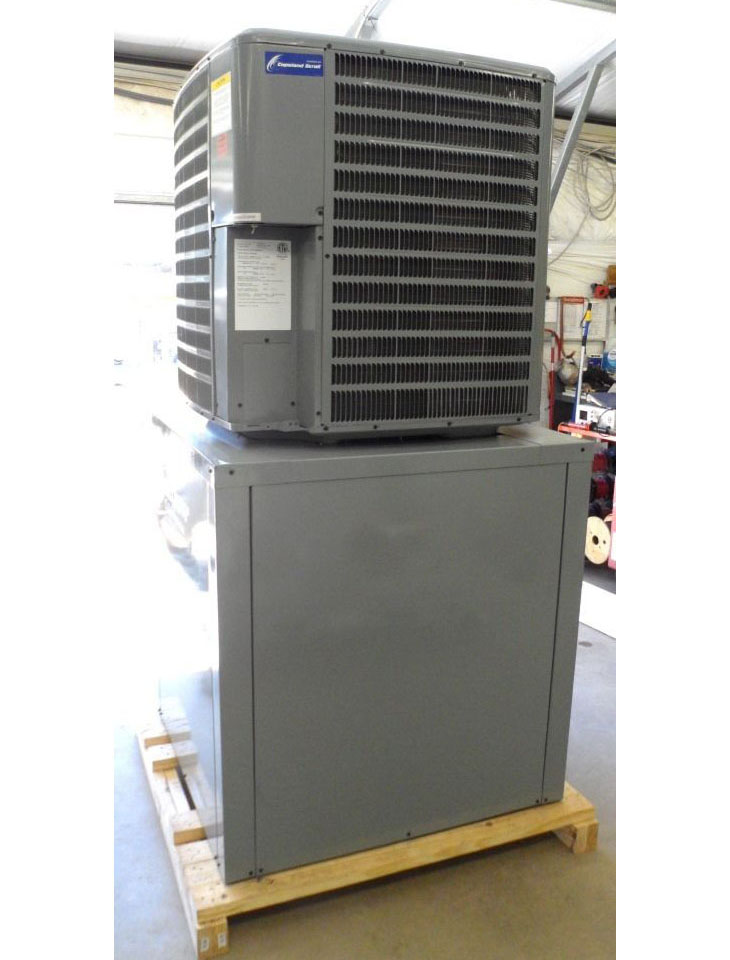

New, USA made 2 hp / ton Glycol (or water) Air Cooled Chiller. This is a USA made chiller with reservoir tank and centrifugal pump. Chill and pump your glycol solution down to 28°F setpoint! 208/230 SINGLE phase power. This unit is equally as fine for a higher fluid temperature for manufacturing and other industrial temperatures. We make any size, multiple voltages, various configurations.

*** This exact unit is in stock at KIG, or currently being made for stock. ***
*** Photos are of similar size units. Many configurations are made, and exact appearance and components placement may change from model to model. ***

Latest R410a refrigerant. Refrigerant site glass with moisture indicator.
Fan type condenser
24,000 btu/hr scroll compressor. At brewery temps of 28°F glycol, about 12,000 btu/hr heat removal. At 55°F industrial application temps, about 24,000 btu/hr.
This unit is 208/230 volt, SINGLE phase.
1" thick (this is substantial) Armaflex insulation on tank and components. Super efficient.
Limit devices: high/low refrigerant, and LOW ambient fan switching.
Outdoor RATED for -25°F to 130°F extreme ambient and weather conditions.
Stainless Tank: 19 gallons
1/2 hp process pump

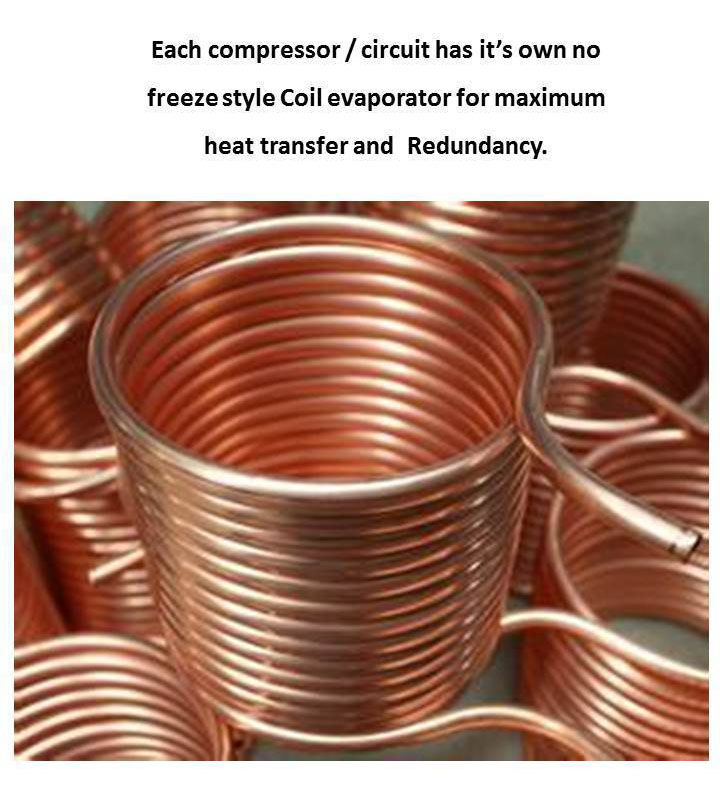

No-freeze coil type evaporator/exchanger within stainless tank.
1 Year Warranty
100% USA made
Size: approx. 36" x 36" x 70"

*** 3 phase power version of this unit with larger reservoir tank and larger pump is available for an upcharge. ***

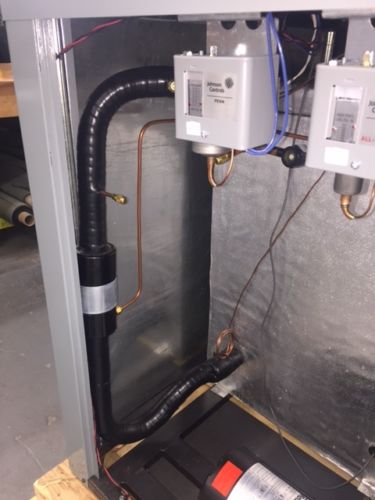

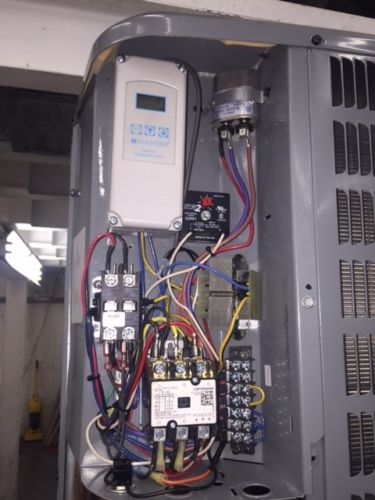

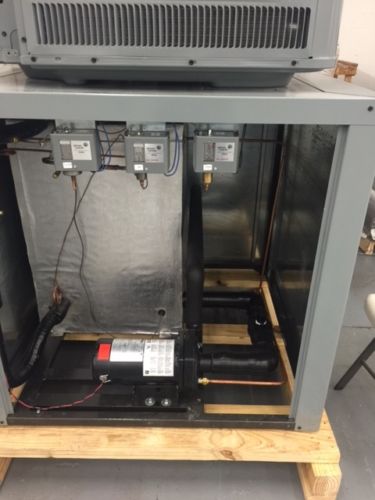

Inside View 1 Inside View 2 Controls Coil Evaporator Additional Picture & Specs

3 ton | BRAND NEW 3 ton hp Glycol Chiller w/ pump, tank brewery winery beer LOW Temp 28°F!

New, USA made 3 hp / ton Glycol (or water) Air Cooled Chiller. This is a USA made chiller with reservoir tank and centrifugal pump. Chill and pump your glycol solution down to 28°F setpoint! 208/230 SINGLE phase power. This unit is equally as fine for a higher fluid temperature for manufacturing and other industrial temperatures. We make any size, multiple voltages, various configurations.

*** This exact unit is in stock at KIG, or currently being made for stock. ***
*** Photos are of similar size units. Many configurations are made, and exact appearance and components placement may change from model to model. ***

Latest R410a refrigerant. Refrigerant site glass with moisture indicator.
Fan type condenser
36,000 btu/hr scroll compressor. At brewery temps of 28°F glycol, about 18,000 btu/hr heat removal. At 55°F industrial application temps, about 36,000 btu/hr.
This unit is 208/230 volt, SINGLE phase.
1" thick (this is substantial) Armaflex insulation on tank and components. Super efficient.
Limit devices: high/low refrigerant, and LOW ambient fan switching.
Outdoor RATED for -25°F to 130°F extreme ambient and weather conditions.
Stainless Tank: 19 gallons
1/2 hp process pump
No-freeze coil type evaporator/exchanger within stainless tank.
1 Year Warranty
100% USA made
Size: approx. 36" x 36" x 70"

*** 3 phase power version of this unit with larger reservoir tank and larger pump is available for an upcharge. ***

Inside View 1 Inside View 2 Controls Coil Evaporator Additional Picture & Specs

5 ton | BRAND NEW 5 ton hp Glycol Chiller w/ pump, tank brewery winery beer LOW Temp 28°F!

New, USA made 5 hp / ton Glycol (or water) Air Cooled Chiller. This is a USA made chiller with reservoir tank and centrifugal pump. Chill and pump your glycol solution down to 28°F setpoint! 208/230 SINGLE phase power. This unit is equally as fine for a higher fluid temperature for manufacturing and other industrial temperatures. We make any size, multiple voltages, various configurations.

*** This exact unit is in stock at KIG! ***

Latest R410a refrigerant. Refrigerant site glass with moisture indicator.
Fan type condenser
This unit is 208/230 volt, 3 phase.
1" thick (this is substantial) Armaflex insulation on tank and components. Super efficient.
Limit devices: high/low refrigerant, and LOW ambient fan switching.
Outdoor RATED for -25°F to 130°F extreme ambient and weather conditions.
Oversized Stainless Tank
No-freeze coil type evaporator/exchanger within stainless tank.
1 Year Warranty
100% USA made

Inside View 1 Inside View 2 Controls Coil Evaporator Additional Picture & Specs

10 ton | BRAND NEW 10 ton hp Glycol Chiller w/ pump, tank brewery winery beer LOW Temp 28°F!

New, USA made 10 hp / ton Glycol (or water) Air Cooled Chiller. This is a USA made chiller with stainless 77 gallon reservoir tank and centrifugal pump. Chill and pump your glycol solution down to 28°F setpoint! Available as 208/230 or 460 volt. DUAL Scroll Compressors and DUAL INDEPENDENT coil heat exchangers. This unit is equally as fine for a higher fluid temperature for manufacturing and other industrial temperatures. We make any size, multiple voltages, various configurations. Photos are or various new units, stock units, units we have installed, units we have run and tested here, and some used refurbished units that have come through our shop of various sizes.

*** This exact unit to be built for stock, typical lead time is 5 weeks or sooner! ***
*** Allow us to quote your application. Call 978-514-3800 ***
*** Trade-ins for your used equipment gladly considered ***

Latest R410a refrigerant. Refrigerant site glass with moisture indicator.
Fan type condenser
Available as 208/230 or 460 volt.
1" thick (this is substantial) Armaflex insulation on tank and components. Super efficient.
Limit devices: high/low refrigerant, and LOW ambient fan switching.
Outdoor RATED for -25°F to 130°F extreme ambient and weather conditions.
Oversized Stainless Tank
No-freeze coil type evaporator/exchanger within stainless tank.
1 Year Warranty
100% USA made

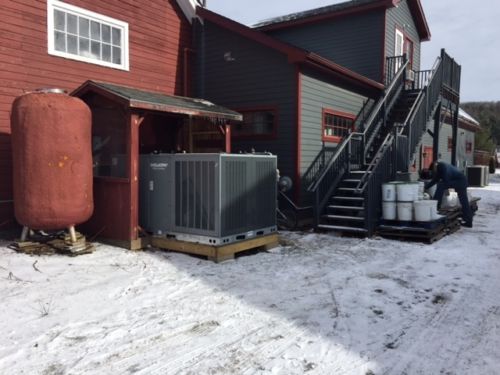

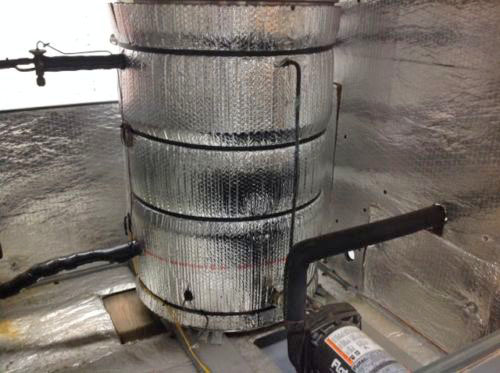

Inside View 1 Inside View 2 Controls Coil Evaporator Tank Docked Unit

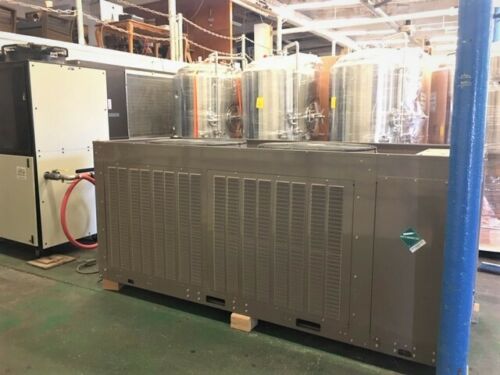

28 ton | NEW Low Temp York 28 ton Brewery/Winery Glycol Chiller IN STOCK, full warranty

This 28 ton chiller has been made by York for "low temp", adjustable down to 20°F leaving glycol temperature. Original mfg date is 2018, but it is NEW and has full 1 year parts and labor warranty direct from York/Johnson Controls, and is currently in our Clinton MA shop. Customers are encouraged and invited to see unit run here in our test area. With its low temp capability, this unit is ideal for brewerys, wineries, low temp anodizing/plating, etc. This chiller (it has dual compressors 15 hp and 13 hp) is outdoor rated, has low and high ambient, and hot gas bypass. At 25° typical brewery glycol temps, this unit will achieve about 16 tons of cooling, or 192,000 BTU/hr. We have included one photo with end covers off to show compressors, and a typical field install too. Unit does NOT have on-board glycol pumps or reservoir. Consult with KIG if needed.

Model: YCAL0028HE46
Low Temp Design
R-410A Refrigerant (Fully Charged)
Voltage: 460/480 volt; MCA=65; Max FUSE=90
SP NF Disconnect Switch w/ Lockable Handle
Control Transformer
Both Low/High Ambient Kit
English cUL/cETL Listing
Service Isolation Valves
Hot Gas Bypass (1 circuit)
Flow Switch with Extension Kit (included flow switch to be installed in your piping, and wired back to chiller)
ASME Pressure Vessel & Associated Codes
Lover Enclosure Panels Sound Kit
Low Sound Fans
Neoprene Isolators

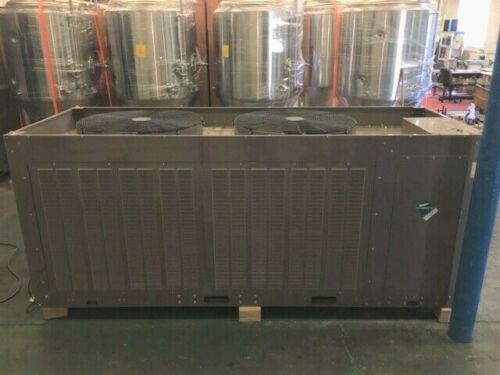

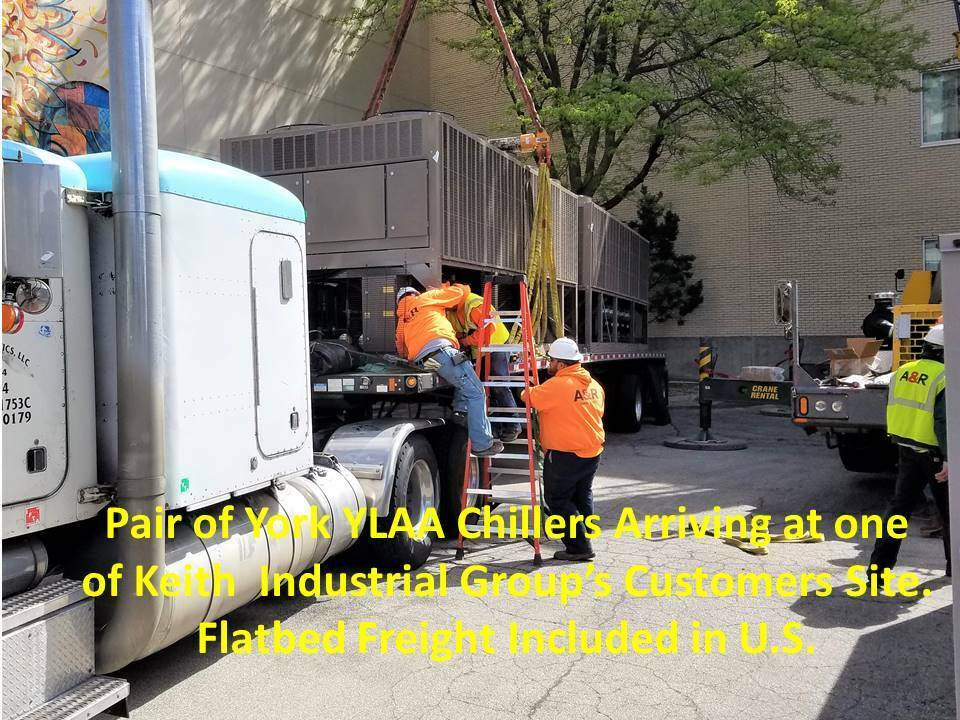

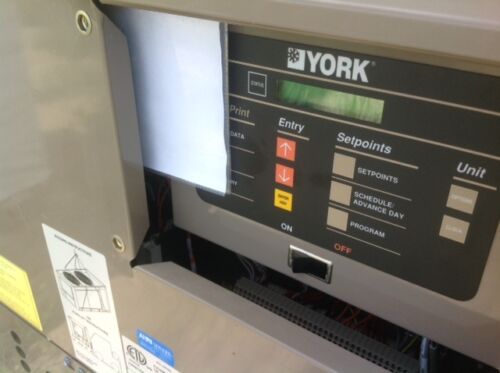

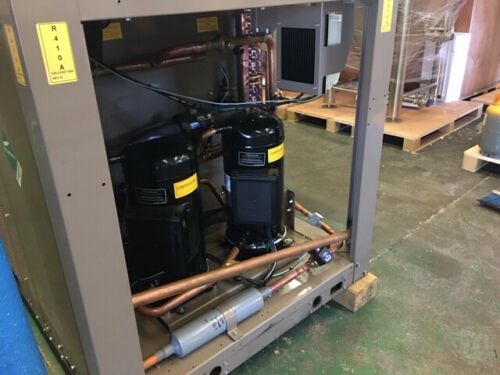

Rear View Compressors Controls Field Installation
